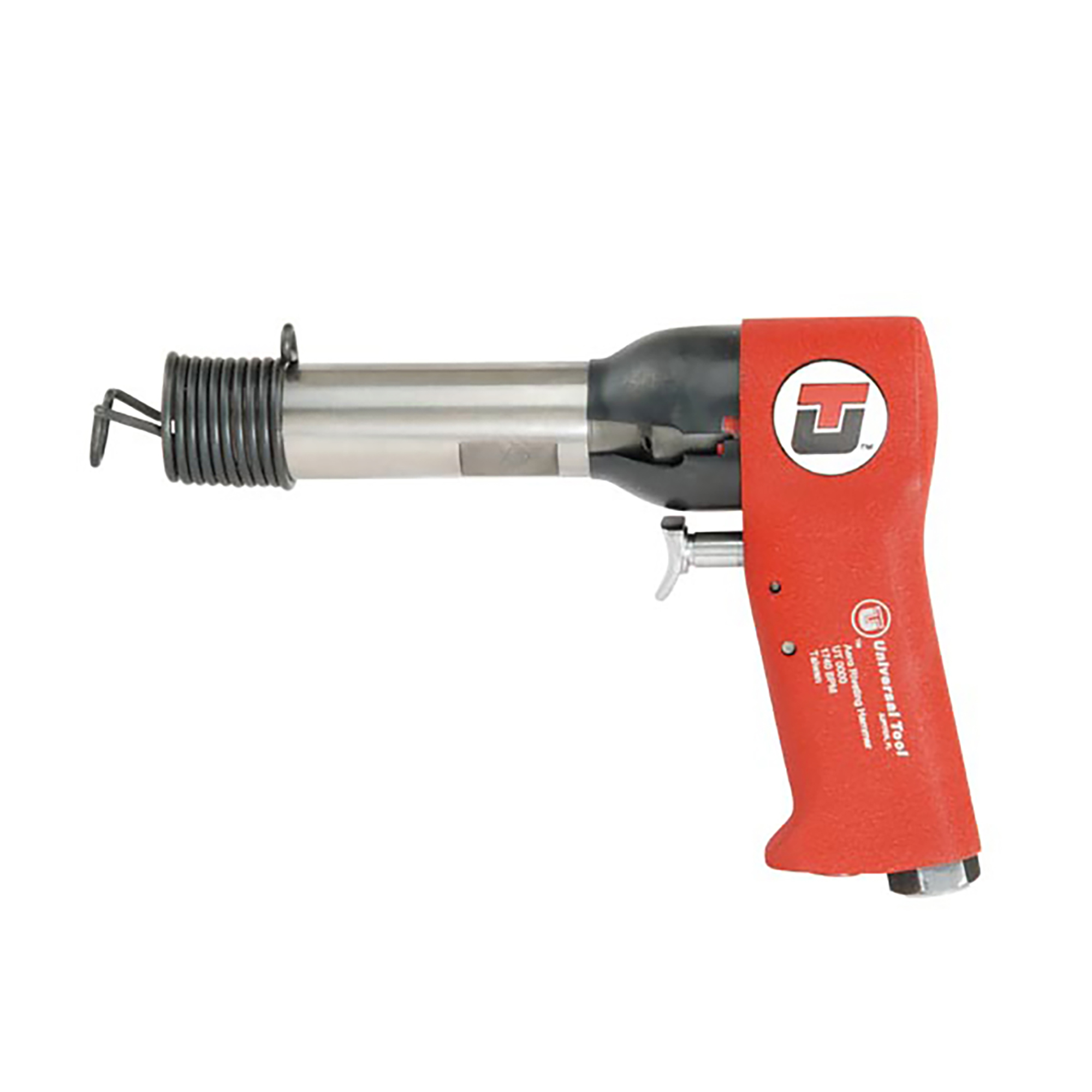

4X Aero Riveting Hammer

Model: UT8664

The Universal Tool UT8664 Aero Riveting Hammer features a precision spool valve for control and heat-treated alloy steel cylinder and piston. Ideal for closing rivets in air frame assembly.

Safety Manual Manual / Parts Fact Sheets Request Info Order Parts

Note: Product is only available in the USA.

Product Details +

Precision engineered spool valve for precision control on the job
Triple heat treated alloy steel cylinder & piston
Powder coated acrylic coating for insulation
All metal trigger & throttle valve for durability
Best for: Closing rivets in air frame assembly

Specifications +

Retainer	Spring
Housing Material	Aluminum
Bushing (in.)	0.401
Blow Per Minute	1740
Bore (in.)	1/2-in.
Weight (lbs)	3.1
Weight (kg.)	1.4
Length (in.)	8.9
Length (mm)	227
Air Inlet (NPT/BSP)	1/4-in.
Rec. Hose (I.D. in.)	3/8-in.
Air Consumption (CFM)	28
Avg. Air Cons (CFM)	7.8
Rec. Air Pressure	90 psi-6.2 bar
