2X Riveting Hammer Tungsten Carbide

Model: UT8662-TC

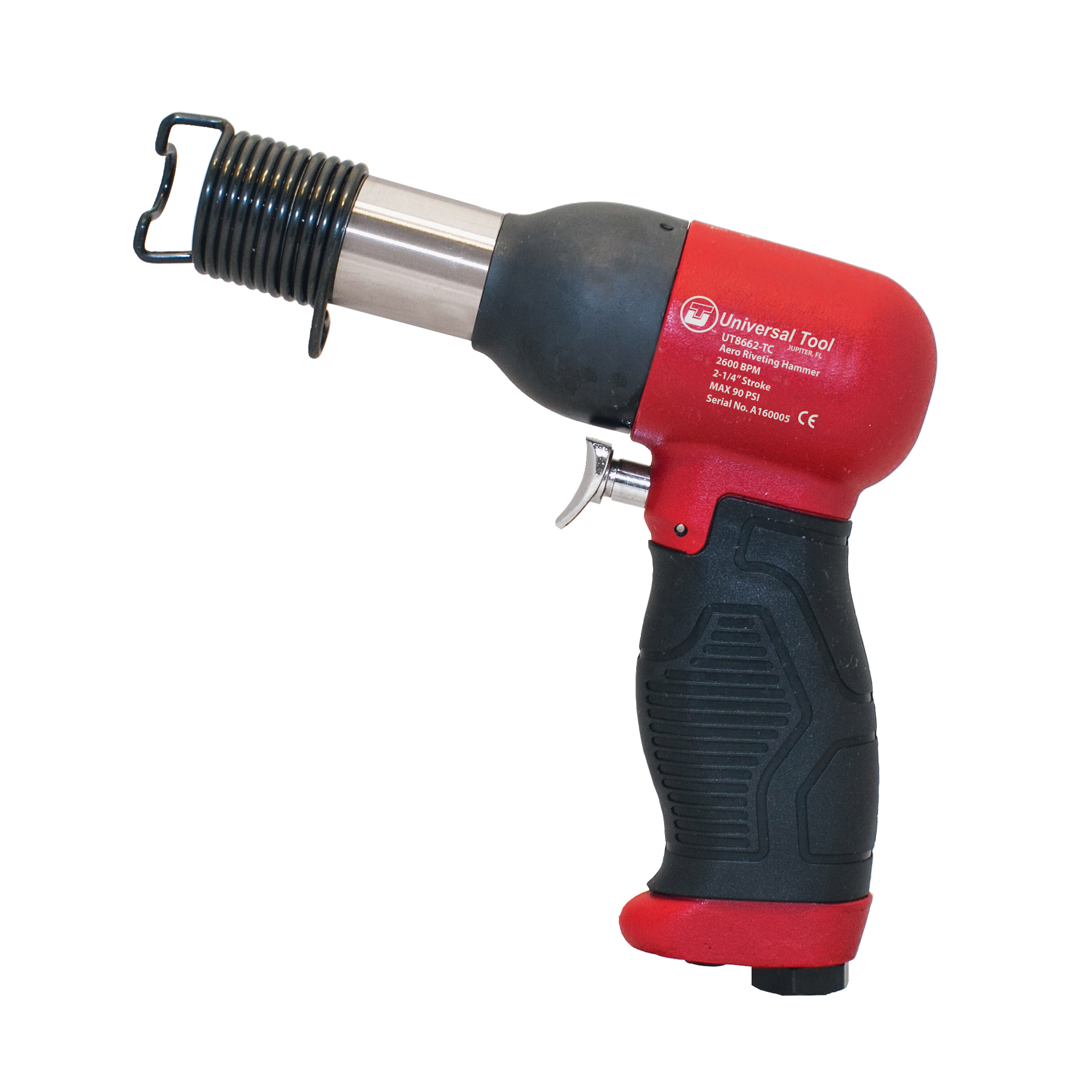

The Universal Tool UT8662-TC Aero Riveting Hammer features a tungsten carbide piston for powerful blows, precision spool valve for control, and a triple heat-treated alloy steel cylinder and piston. Ideal for closing rivets in airframe assembly.

Safety Manual Manual / Parts Fact Sheets Request Info Order Parts

Note: Product is only available in the USA.

Product Details +

Tungsten carbide pistol provides more powerful blows, smaller tool for the same application
Contoured ergonomic handle design
Precision engineered spool valve for precision control on the job
Triple heat treated alloy steel cylinder & piston
All metal trigger & throttle valve for durability
Best for: Closing rivets in air frame assembly

Specifications +

Retainer	Spring
Housing Material	Composite
Bushing (in.)	0.401
Blow Per Minute	2600
Bore (in.)	3/4-in.
Weight (lbs)	3
Weight (kg.)	1.4
Length (in.)	6.5
Length (mm)	165
Air Inlet (NPT/BSP)	3/8-in.
Rec. Hose (I.D. in.)	3/8-in.
Air Consumption (CFM)	16
Avg. Air Cons (CFM)	4
Rec. Air Pressure	90 psi-6.2 bar
