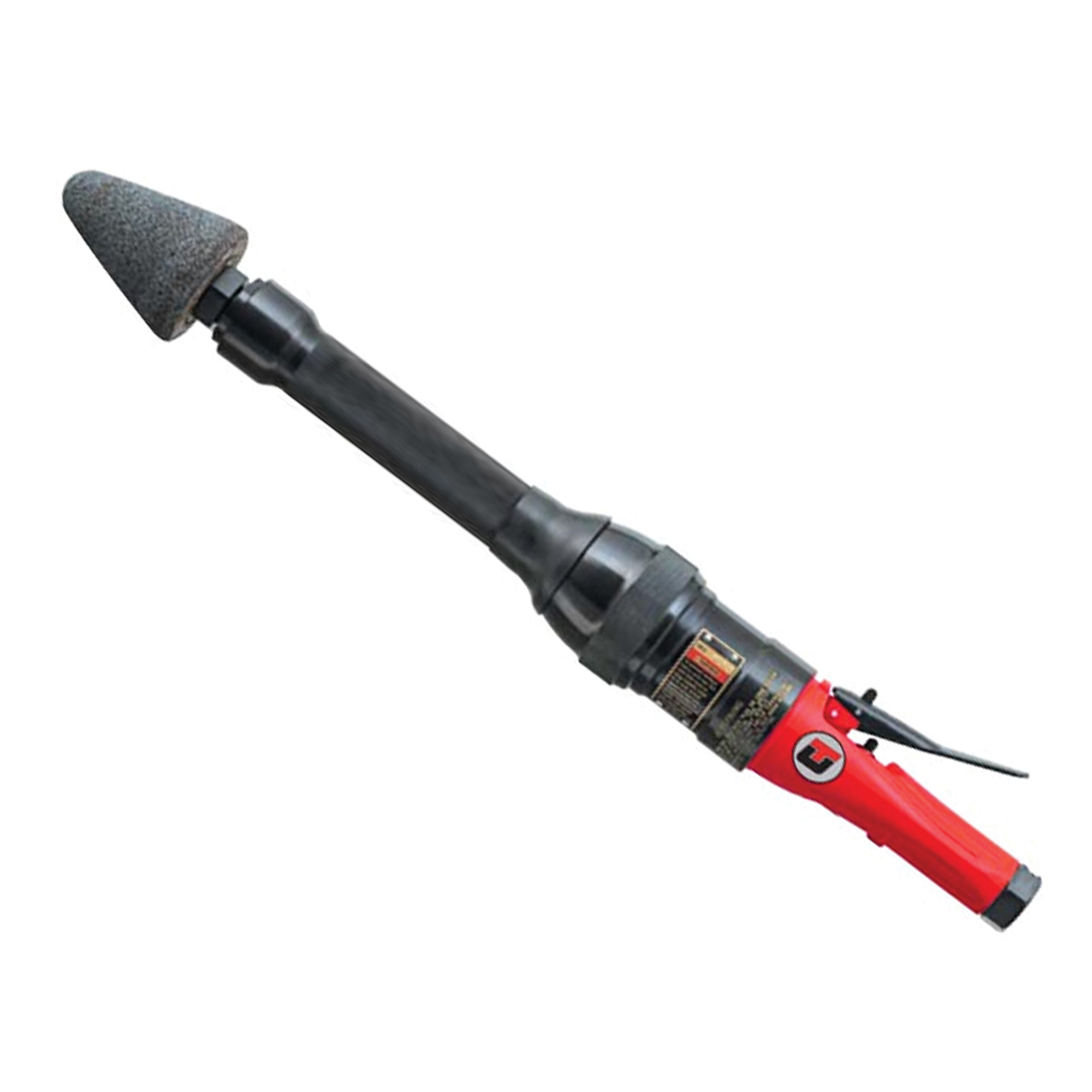

Extended Length Horizontal Cone Wheel Grinder 2 HP

Model: UT200H-90-CWE

The UT200H-90-CWE Extended Length Horizontal Cone Wheel Grinder features a 2.0 HP motor, 3/8" collet, and double pre-loaded bearings. Steel housing and governor control ensure durability and consistent speed for heavy-duty continuous grinding.

Safety Manual Manual / Parts Fact Sheets Request Info Order Parts

Product Details +

2.0 HP Motor prevents stall under load
3/8″ Collet
Governor controlled to maintain speed for optimum material removal
Safety lock-off throttle
Double pre-loaded bearing spindle design adds reliability
Steel motor housing & spindle housing increase durability
Time proven reliable design
Best for: Heavy duty continuous grinding

Specifications +

Motor (HP)	2
Motor (kw)	1.47
Max Wheel Dia. (in.)	3" Cone
Speed (RPM)	9000
Exhaust	Side
Spindle Size (in.)	5/8-in.
weight-lbs	11
Weight (kg)	4.9
Length (in)	26
Length (mm)	660
Air Inlet (NPT / BSP)	1/2-in.
Rec. Hose Size (in)	1/2-in.
Air Cons (CFM)	40
Avg. Air Cons (CMF)	10
Rec. Air Pressure	90 psi-6.2 bar
