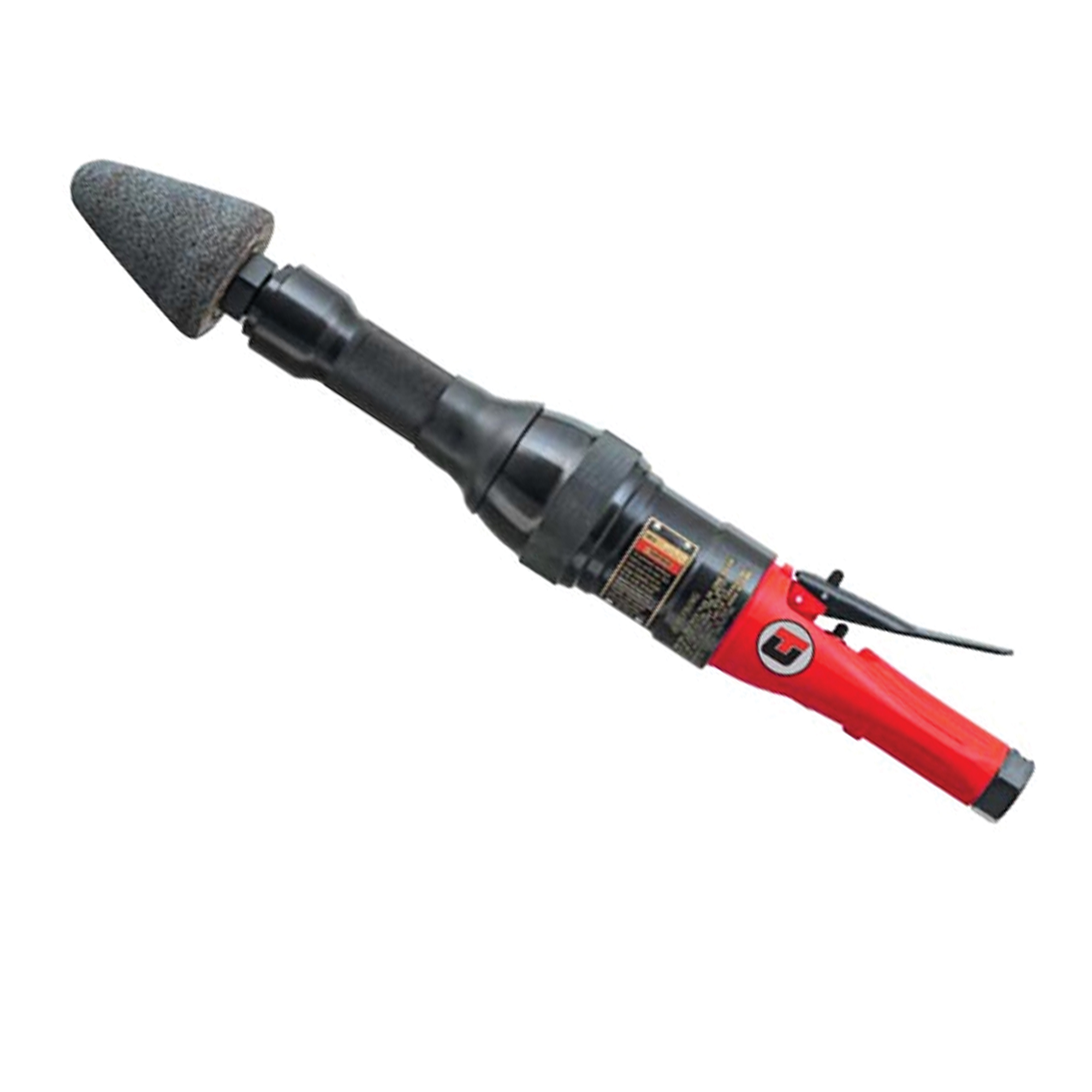

Horizontal Grinder
Model: UT200H-90-CW
The UT200H-90-CW Horizontal Grinder features a 2.0 HP governor controlled motor, double pre-loaded bearings, and steel housing for durability. Cone wheel design is ideal for heavy-duty continuous grinding.
Product Details
- 2.0 HP Motor prevents stall under load
- Governor controlled to maintain speed for optimum material removal
- Safety lock-off throttle
- Double pre-loaded bearing spindle design adds reliability
- Steel motor housing & spindle housing increase durability
- Time proven reliable design
- Cone wheel tool
- Best for: Heavy duty continuous grinding
- Available with 3/8″ Collet as Model #UT200H-90-CWD
Specifications
| Motor (HP) | 2 |
| Motor (kw) | 1.47 |
| Max Wheel Dia. (in.) | 3" Cone |
| Speed (RPM) | 9000 |
| Exhaust | Side |
| Spindle Size (in.) | 5/8-in. |
| weight-lbs | 9 |
| Weight (kg) | 4.1 |
| Length (in) | 17.5 |
| Length (mm) | 445 |
| Air Inlet (NPT / BSP) | 1/2-in. |
| Rec. Hose Size (in) | 1/2-in. |
| Air Cons (CFM) | 40 |
| Avg. Air Cons (CMF) | 10 |
| Rec. Air Pressure | 90 psi-6.2 bar |
