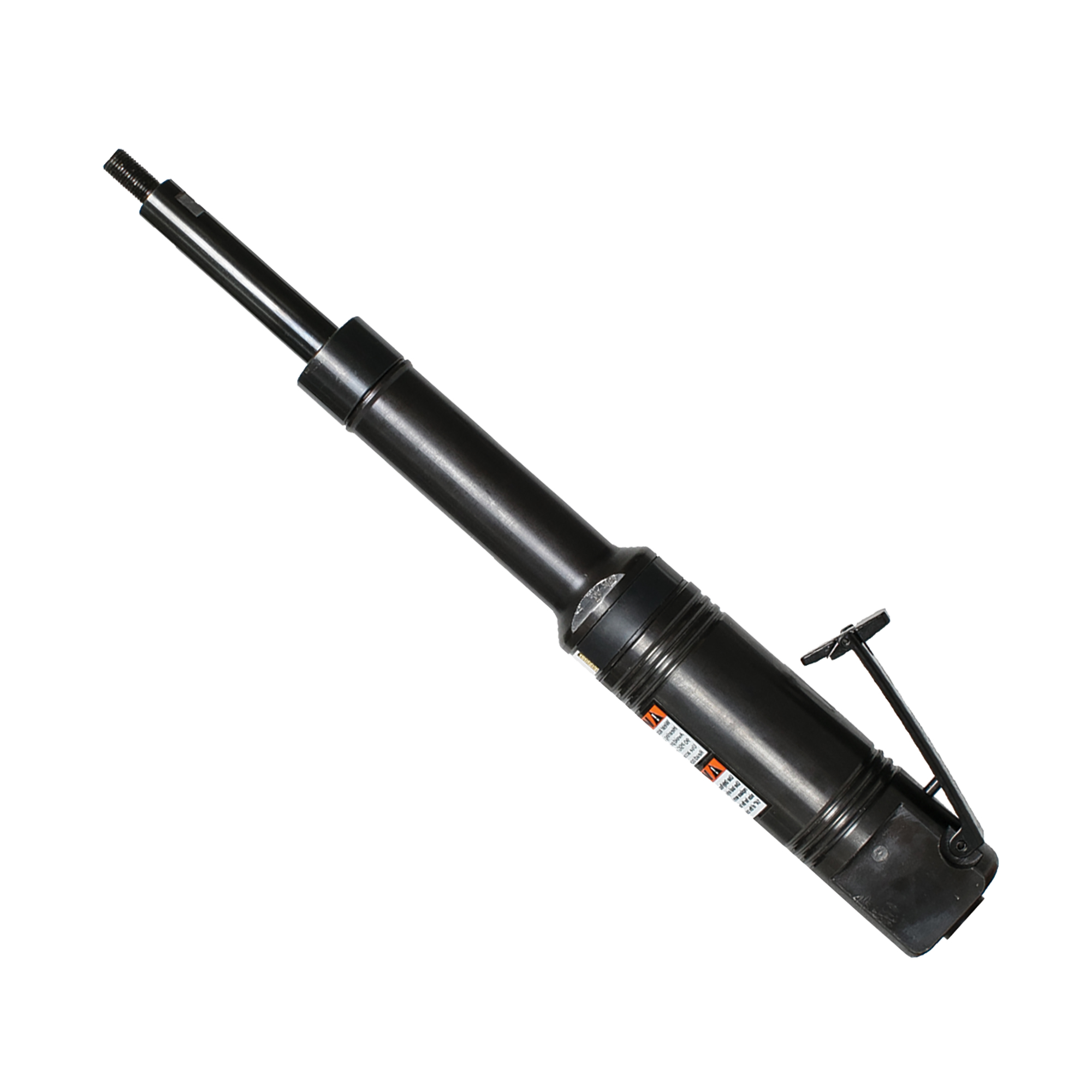

Extended Length Cone Wheel Tool
Model: UT4425E-CW
The UT4425E-CWS Extended Length Cone Wheel Tool features a 1.0 HP motor for stall resistance, all-steel construction, and extended reach design at 23-3/4 long. Built for super heavy-duty grinding in foundry, shipbuilding, and heavy metal fabrication applications.
Product Details
- 1.0 HP Motor for Stall resistance
- Latest Design Lock- Off Throttle
- All Steel construction for durability
- Parts Interchange with # CP®-9113G Series
- Double Bearing in shaft for durability
- Best for: Super heavy duty grinding applications in foundry, shipbuilding and heavy metal fabrication
Specifications
| Motor (HP) | 1 |
| Motor (kw) | 0.73 |
| Max Wheel Dia. (in.) | 2 |
| Spindle Size (in.) | 3/8" - 24 |
| Speed (RPM) | 25000 |
| Exhaust | Side |
| Weight (lb.) | 3.5 |
| Weight (kg) | 1.46 |
| Length (in) | 14.25 |
| Length (mm) | 362 |
| Air Inlet (NPT / BSP) | 1/4-in. |
| Rec. Hose Size (in) | 3/8-in. |
| Air Cons (CFM) | 24 |
| Avg. Air Cons (CMF) | 6 |
