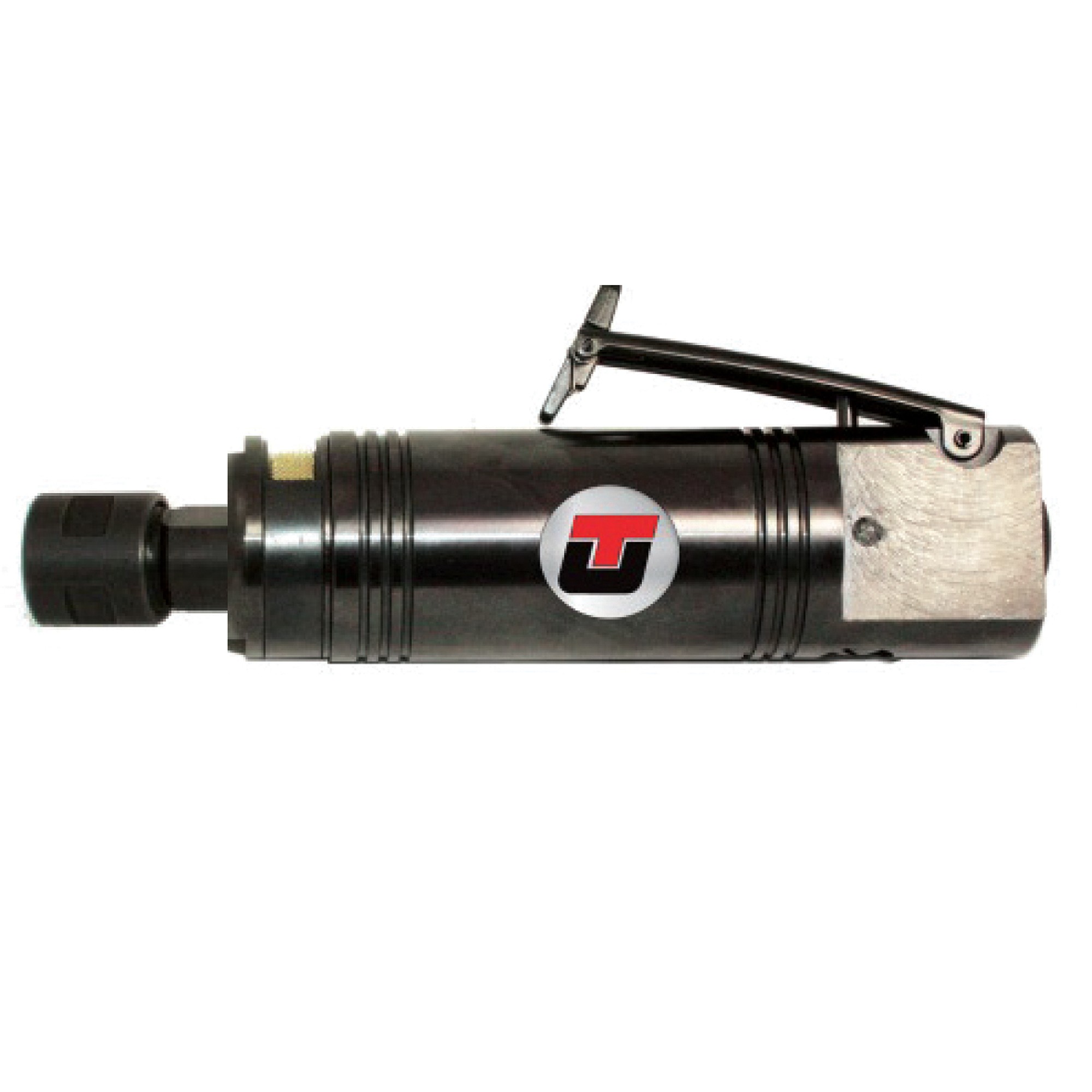

Die Grinder

Model: UT4425-1

The UT4425-1 Die Grinder features a powerful 1.0 HP motor to prevent stall under load and rugged all-steel construction for durability. Equipped with a 1/4" Erickson® collet for extra precision and holding power. Ideal for heavy duty grinding applications in foundry, shipbuilding, and heavy metal fabrication applications.

Safety Manual Manual / Parts Fact Sheets Request Info Order Parts

Product Details +

1.0 HP motor prevents stall under load
All steel construction for super duty use and ultimate durability
Equipped with 1/4″ Erickson® collet for extra precision and holding power, 3/8″ Erickson® collet also available
Best for: Super heavy duty grinding applications in foundry, shipbuilding and heavy metal fabrication

Specifications +

Motor (HP)	1
Motor (kw)	0.73
Max Wheel Dia (in.)	2
Speed (RPM)	25000
Exhaust	Front
Collet Size (in)	1/4-in.
weight-lbs	2
Weight (kg)	0.9
Length (in)	6.25
Length (mm)	159
Air Inlet (NPT / BSP)	1/4-in.
Rec. Hose Size (in)	3/8-in.
Air Cons (CFM)	22
Avg. Air Cons (CMF)	5.5
Rec. Air Pressure	90 psi-6.2 bar
