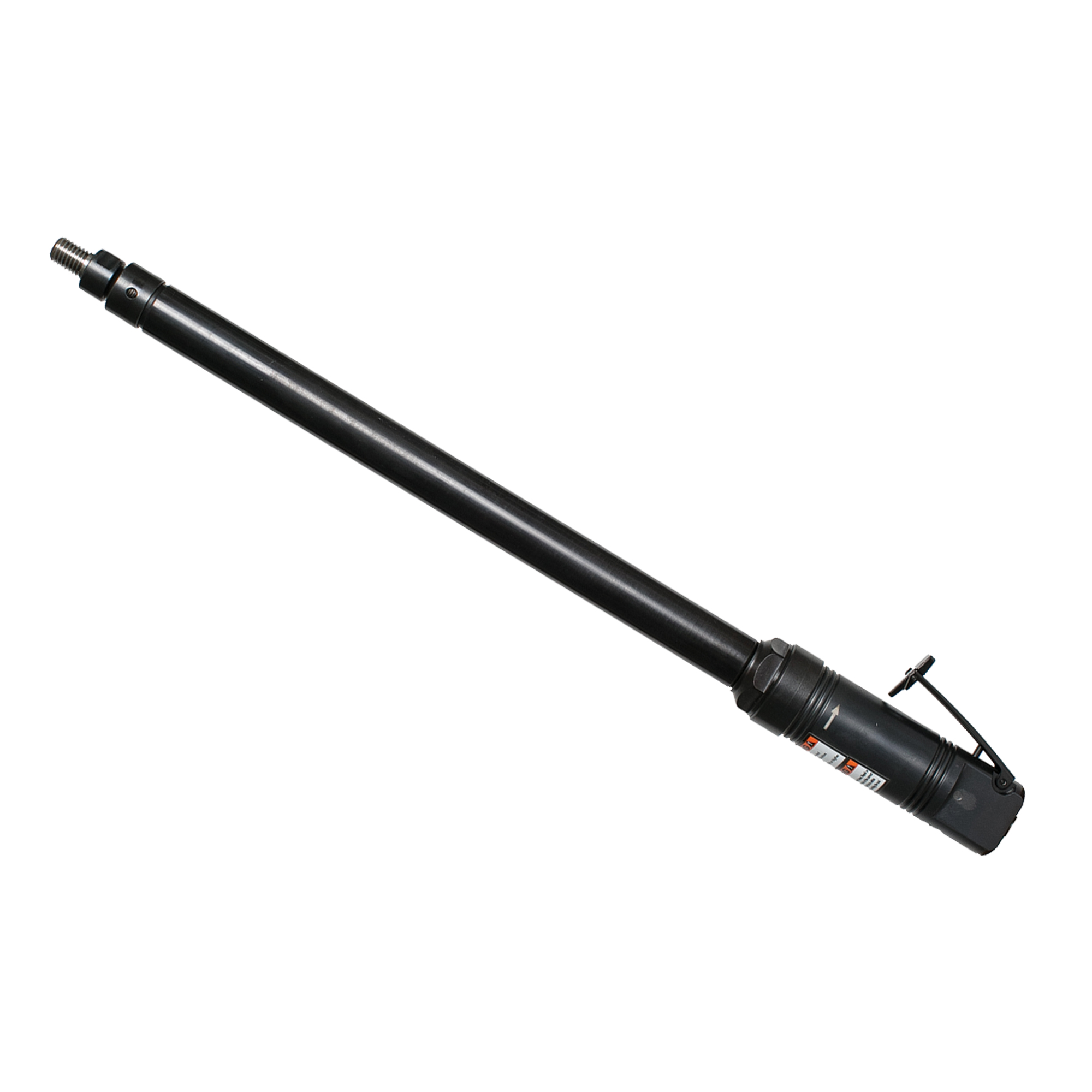

The UT4425E-CWS Extended Length Cone Wheel Tool features a 1.0 HP motor for stall resistance, all-steel construction, and extended reach design at 23-3/4 long. Built for super heavy-duty grinding in foundry, shipbuilding, and heavy metal fabrication applications.
SHARE
| Motor (HP) | 1.0 |
|---|---|
| Motor (kw) | 0.73 |
| Max Wheel Dia. (in.) | 2 |
| Spindle Size (in.) | 5/8 – 11 |
| Speed (RPM) | 20,000 |
| Exhaust | Side |
| weight-lbs | 5 |
| Weight (kg) | 2 |
| Length (in.) | 23.75 |
| Length (mm) | 603 |
| air-inlet-npt | 1/4-in. |
| Rec. Hose Size (in) | 3/8-in. |
| Air Cons (CFM) | 24 |
| Avg. Air Cons (CMF) | 6 |
| Rec. Air Pressure | 90 psi-6.2 bar |
