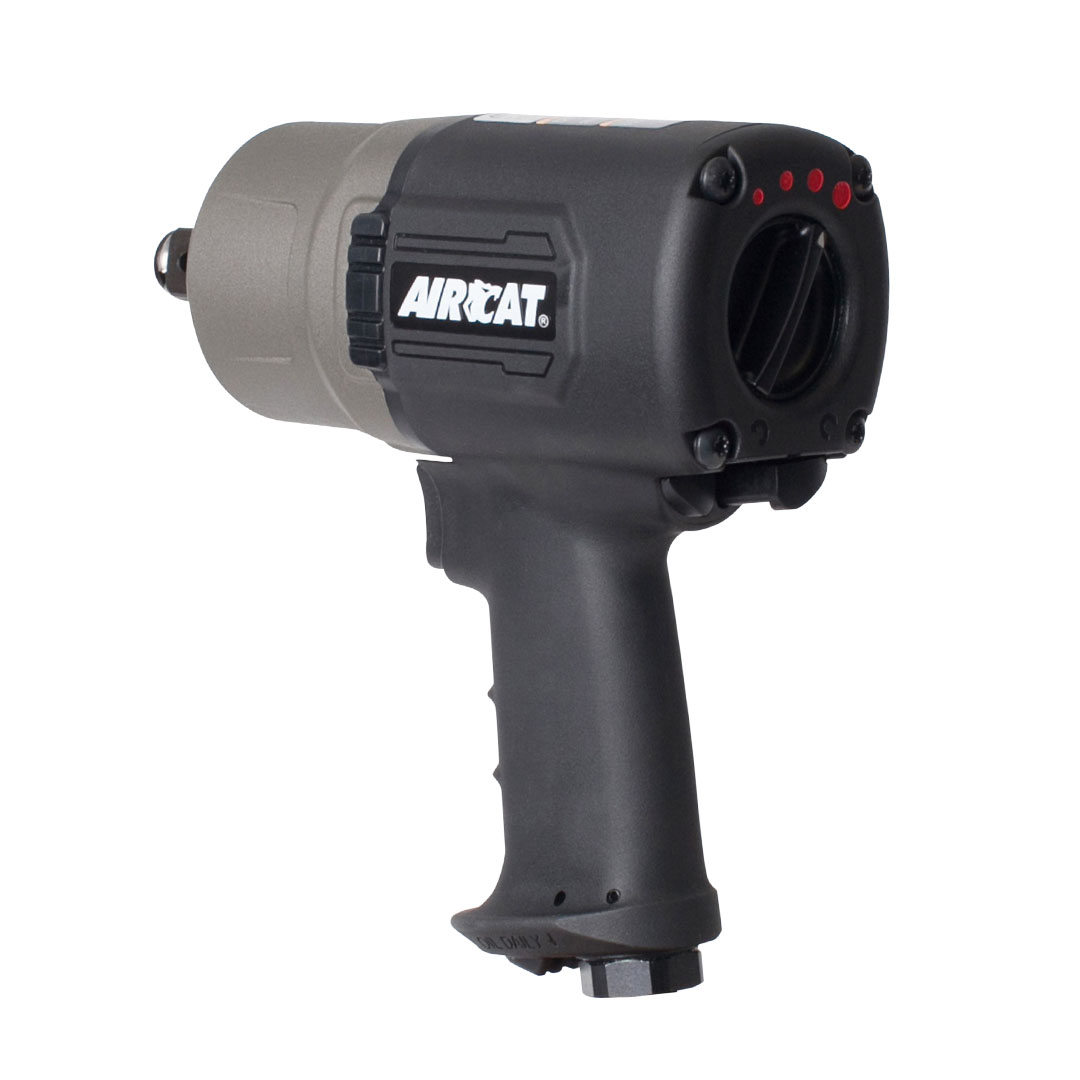

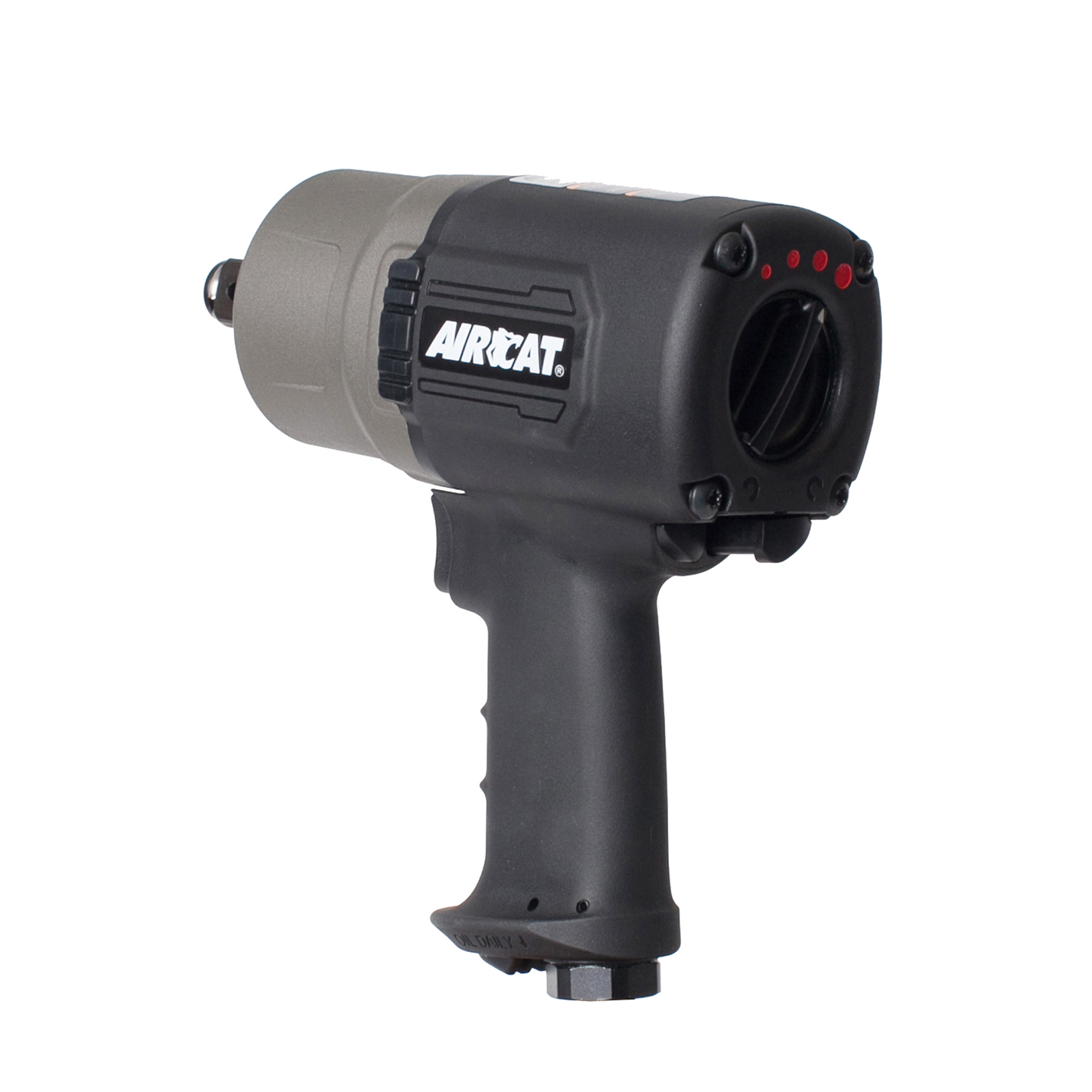

AIRCAT 1770-XL 3/4" Composite Impact Wrench

AIRCAT 3/4″ COMPOSITE IMPACT WRENCH

Model: 1770-XL

The AIRCAT 1770-XL 3/4" Composite Impact Wrench delivers 1,400 ft-lbs of maximum torque and 1,600 ft-lbs of loosening torque for heavy-duty fleet maintenance and industrial MRO applications. Its refined twin hammer mechanism, ergonomic design, and durable composite housing provide powerful, reliable performance and operator comfort.

Safety Manual Manual / Parts Fact Sheets Request Info Order Parts

Product Details +

• Provides 1,400 ft-lb maximum torque and 1,600 ft-lb of loosening torque
• Refined design twin hammer increases blow frequency and efficiency
• Power management switch with three power settings
• Molded-in buffers protect tool from side impact
• Ergonomically designed grip and trigger provide ultimate operating comfort
• Designed for heavy duty fleet maintenance and industrial MRO work
• Combined through hole and friction ring socket retainer

Specifications +

Maximum Torque (ft-lbs)	1400
Loosening Torque (ft-lbs)	1600
Impacts Per Minute (IPM)	1300
Free Speed (RPM)	6500
Square Drive (in.)	3/4-in.
Bolt Capacity (in.)	1-in.
Weight (lbs.)	7.4
Length (in.)	8.25-in.
Noise Levels d(B)A	91.3
Vibration Levels (m/sec2)	14.6
Air Consumption (CFM)	8
Air Inlet (NPT/BSP)	3/8-in.
Rec. Hose Size (in.)	1/2-in.
