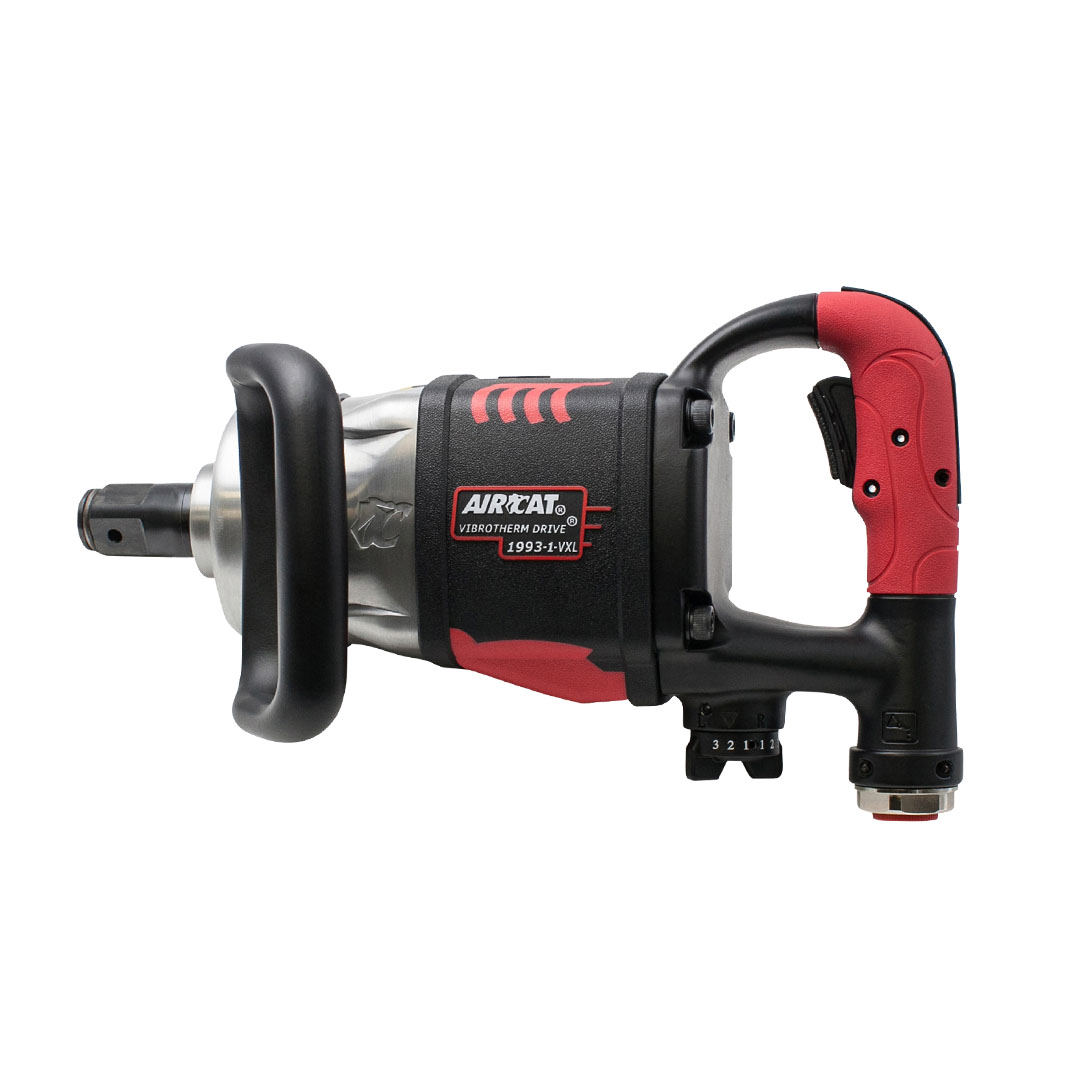

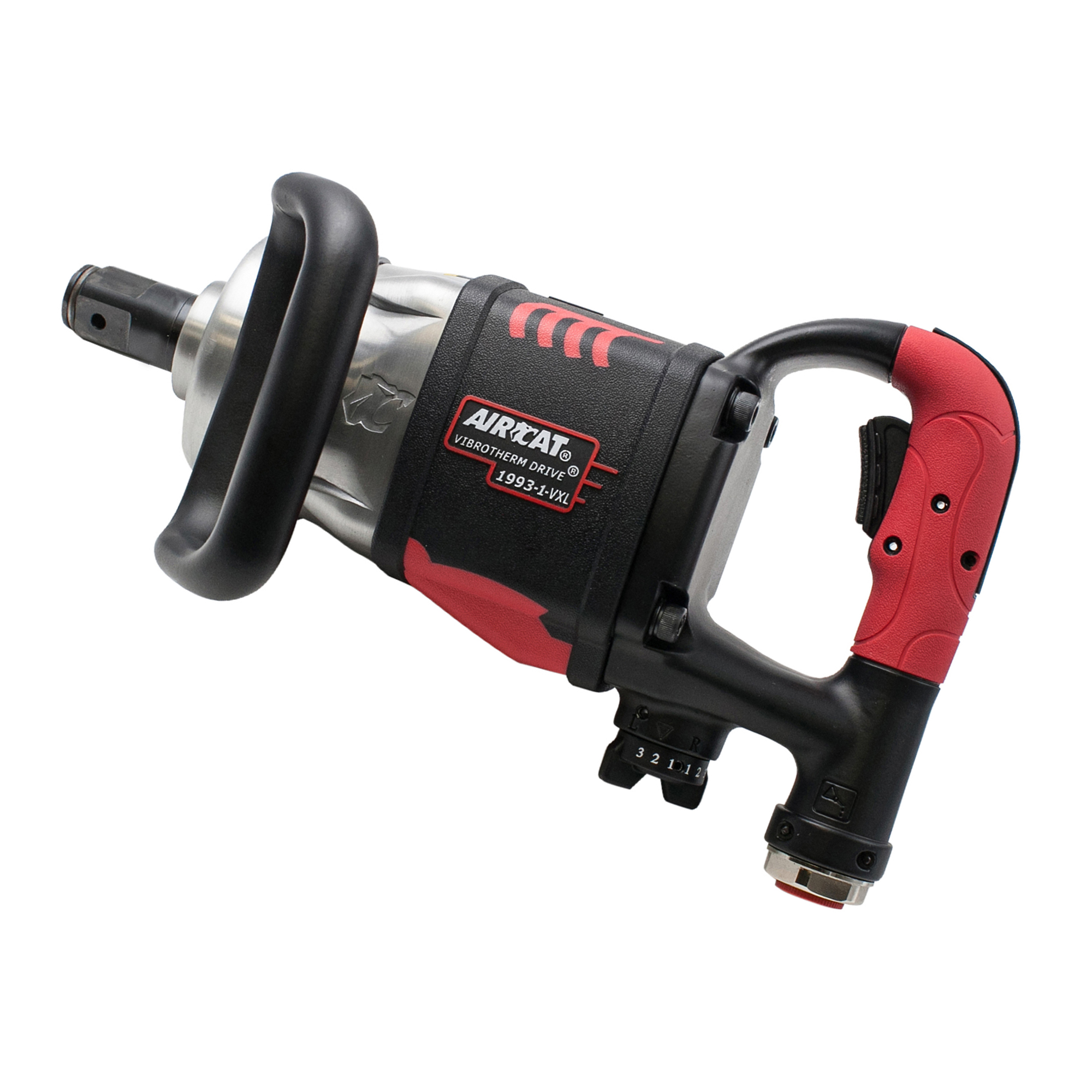

AIRCAT 1″ VIBROTHERM DRIVE COMPOSITE STRAIGHT IMPACT WRENCH

1993-1-vXL

VIBROTHERM DRIVE impact wrenches incorporates the new patented AIRCAT design impact wrench mechanism

Safety Manual
Manual Parts
Fact Sheet
Request Info
Order Parts

SHARE

Product Details

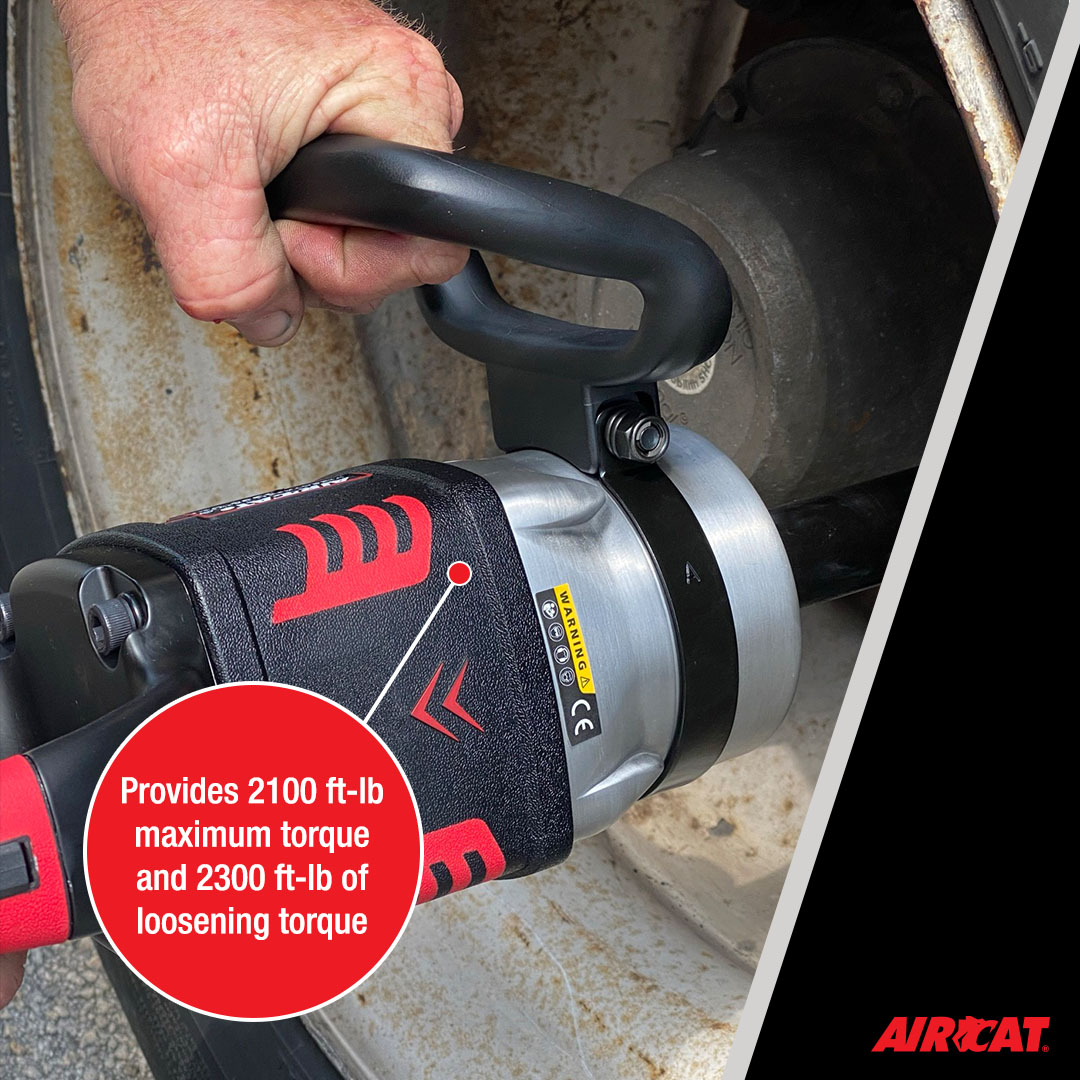

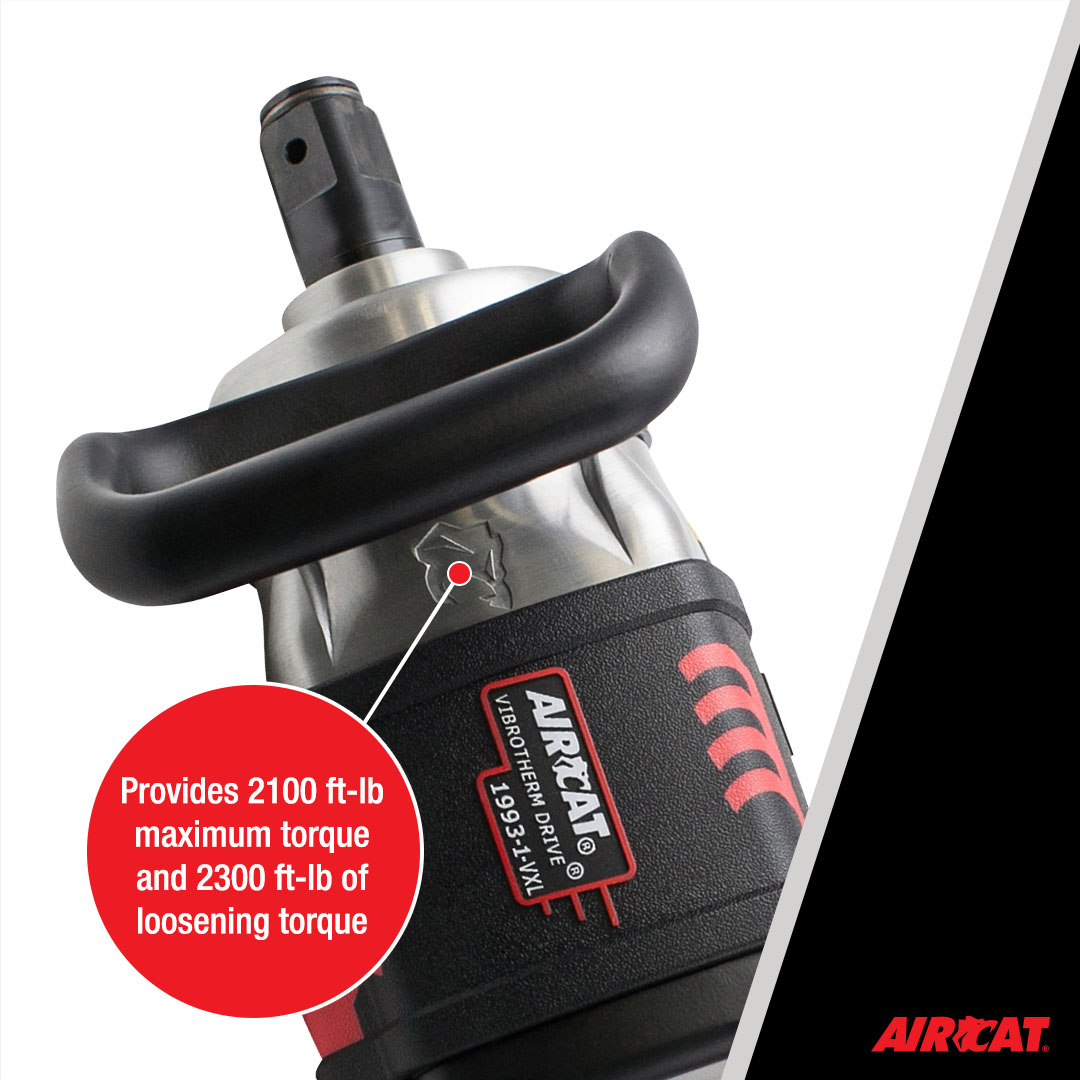

  • Provides 2,100 ft-lb maximum torque and 2,300 ft-lb of loosening torque

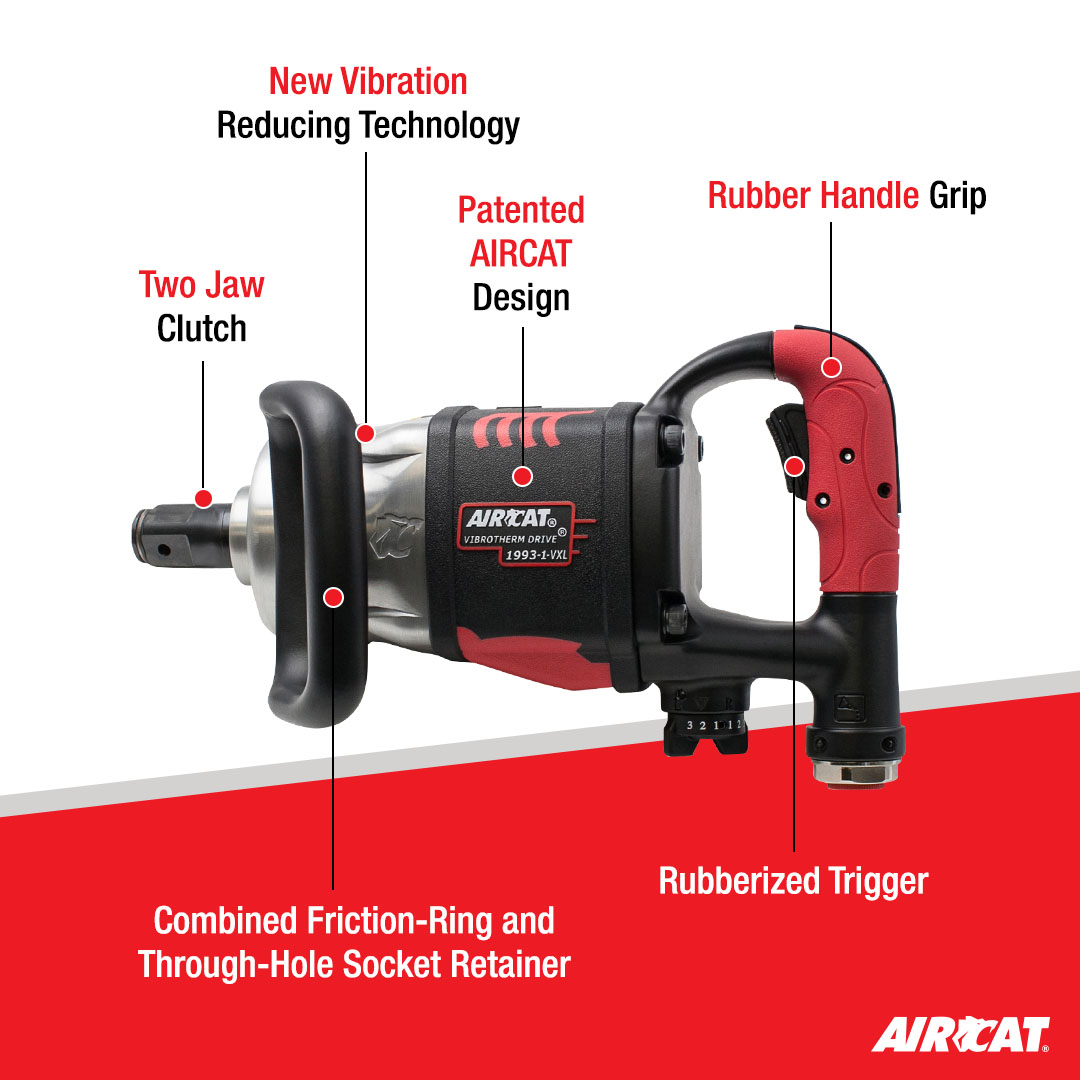

  • VIBROTHERM DRIVE® impact wrenches incorporates the new patented AIRCAT® design impact wrench mechanism

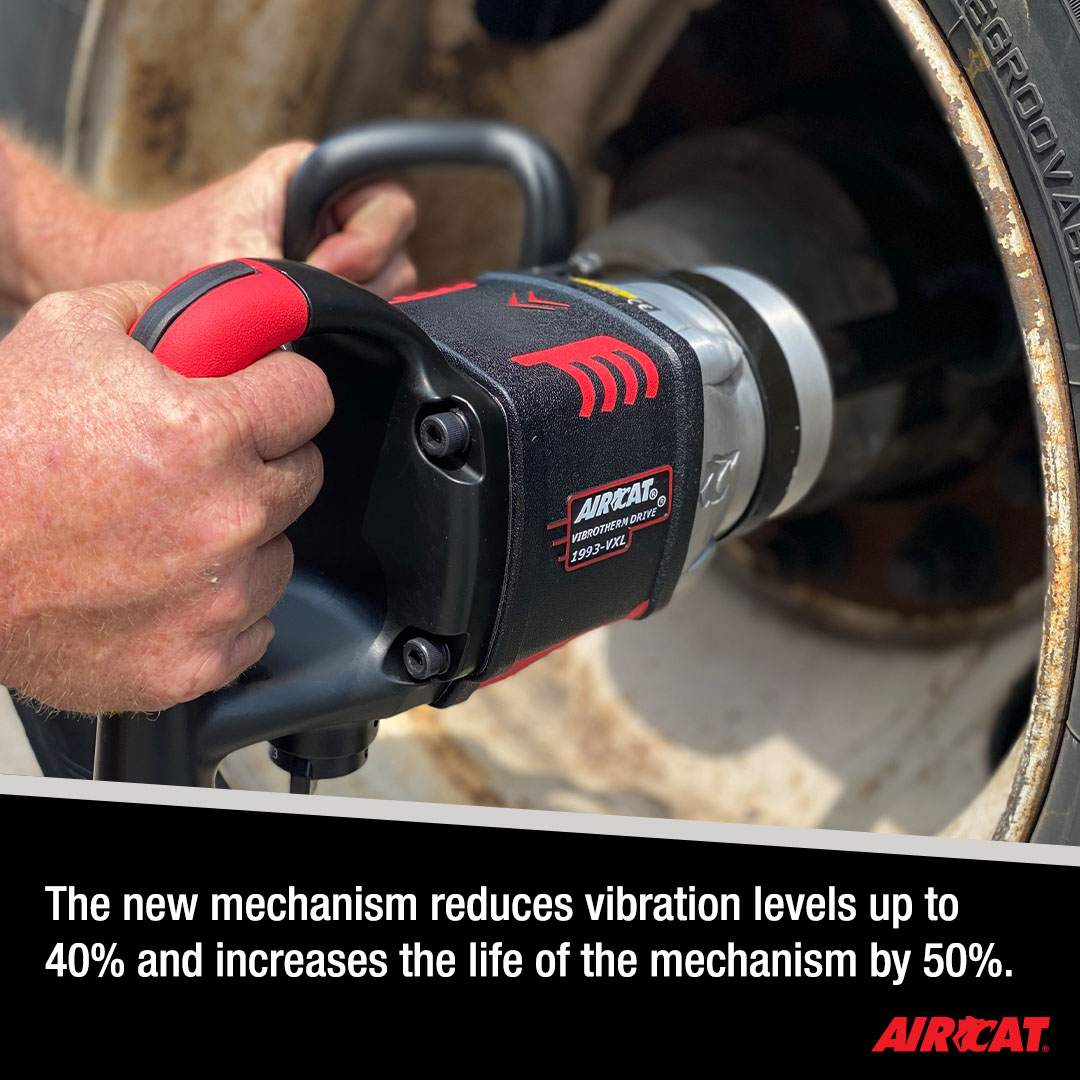

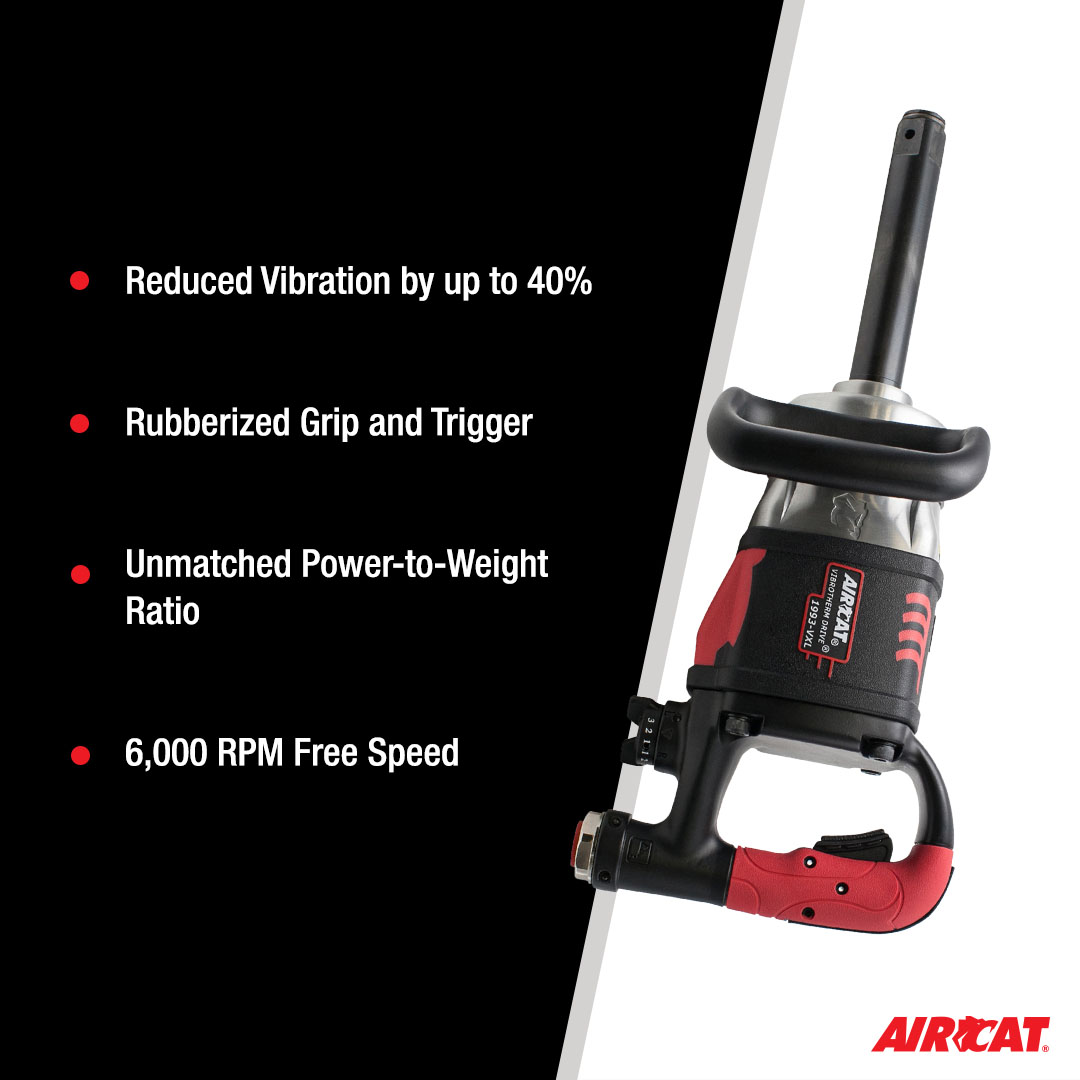

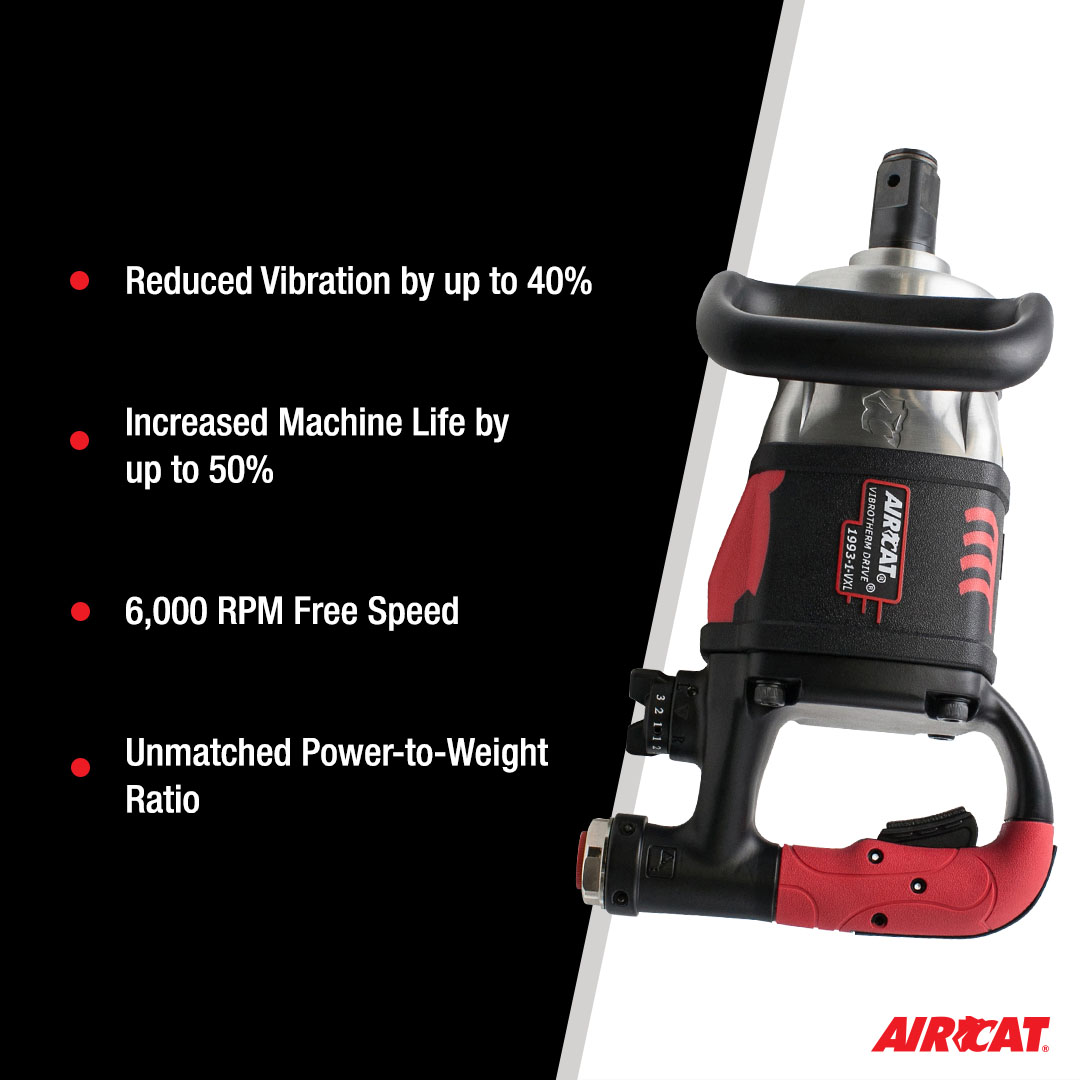

  • The new mechanism reduces vibration levels by 30%-40% and increases the life of the mechanism by 50%
  • 6,000 RPM Free Speed
  • Unmatched power-to-weight ratio

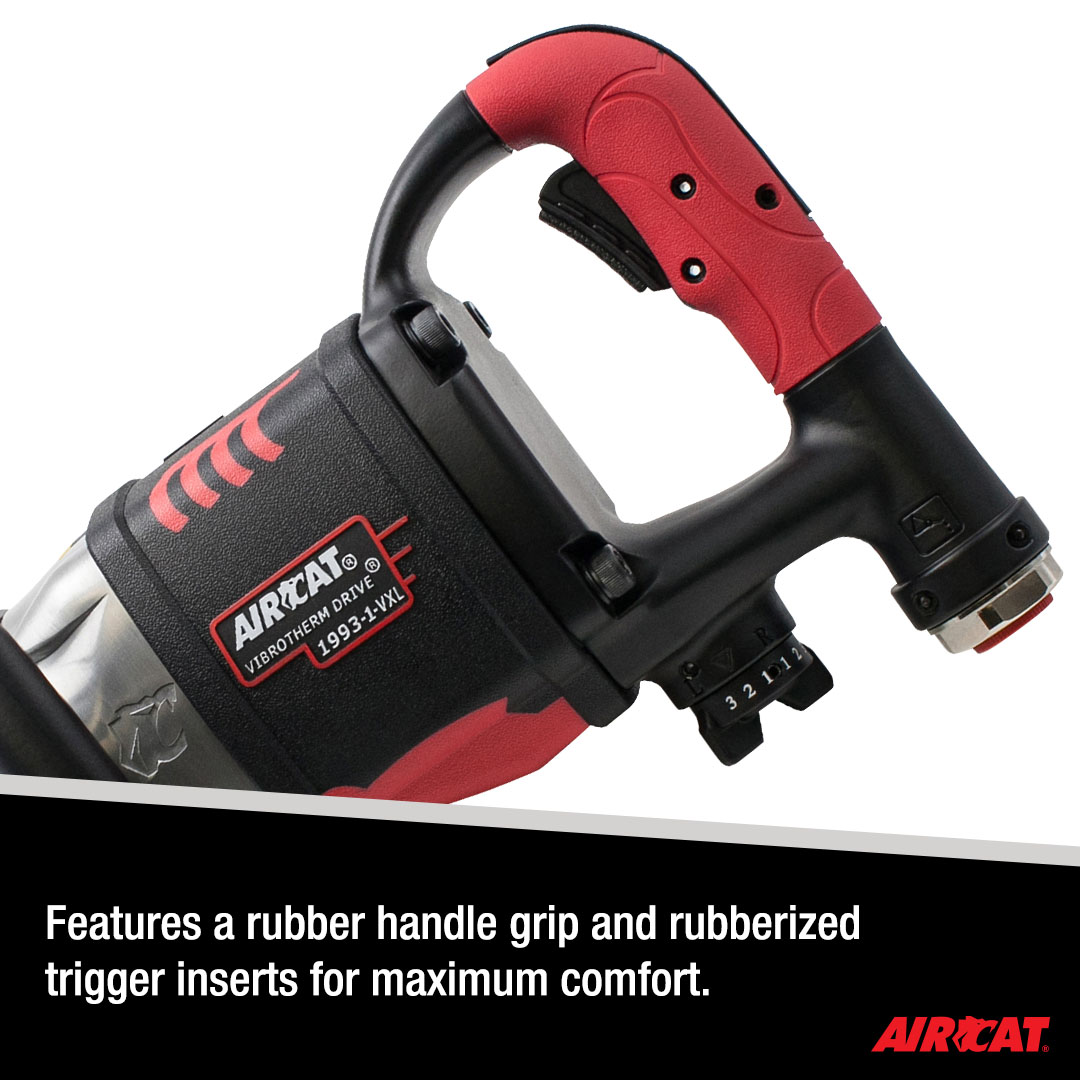

  • Rubber handle grip and rubberized trigger inserts for ultimate comfort

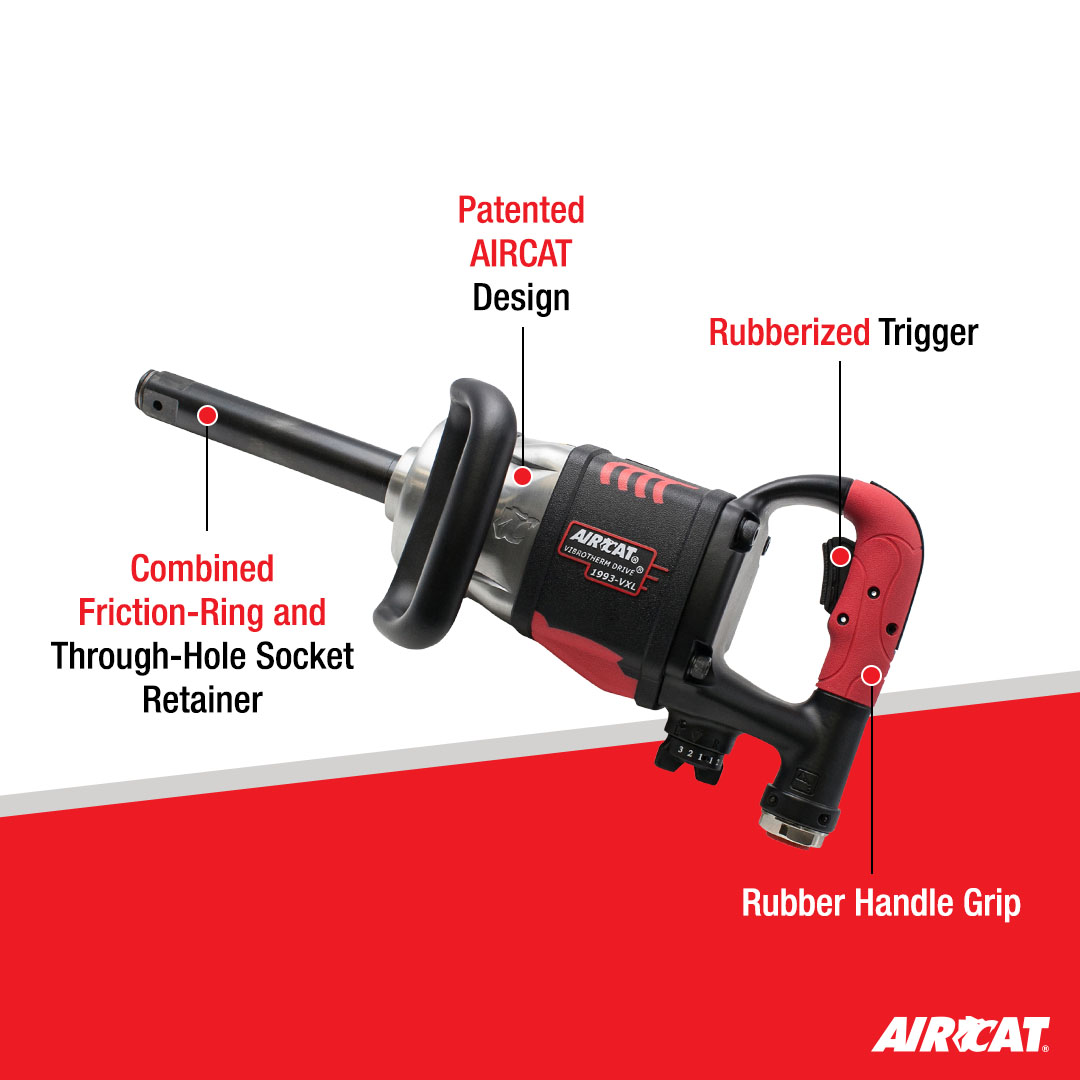

  • Combined friction-ring and through-hole socket retainer
  • Investment in tooling, materials, and the triple injection molding processes enables AIRCAT® to produce cosmetic designs that are unmatched in the industry

Specifications

Additional information

Square Drive (in.)

1-in.
Air Consumption (CFM)

10
Bolt Capacity (in)

1-1/4-in.
Air Inlet (NPT/BSP)

1/2-in.
Rec. Hose Size (in.)

1/2-in.
Weight (lb.)

18.5
Length (in.)

13.4
Free Speed (RPM)

6000
Impacts Per Minute (IPM)

950
Max. Torque (ft-lb)

2100
Loosening Torque (ft-lb)

2300
Noise Levels (dBA)

108
Vibration Levels (m/sec2)

12.7

VIBROTHERM DRIVE impact wrenches incorporates the new patented AIRCAT design impact wrench mechanism

Additional information

Square Drive (in.)

1-in.
Air Consumption (CFM)

10
Bolt Capacity (in)

1-1/4-in.
Air Inlet (NPT/BSP)

1/2-in.
Rec. Hose Size (in.)

1/2-in.
Weight (lb.)

18.5
Length (in.)

13.4
Free Speed (RPM)

6000
Impacts Per Minute (IPM)

950
Max. Torque (ft-lb)

2100
Loosening Torque (ft-lb)

2300
Noise Levels (dBA)

108
Vibration Levels (m/sec2)

12.7
