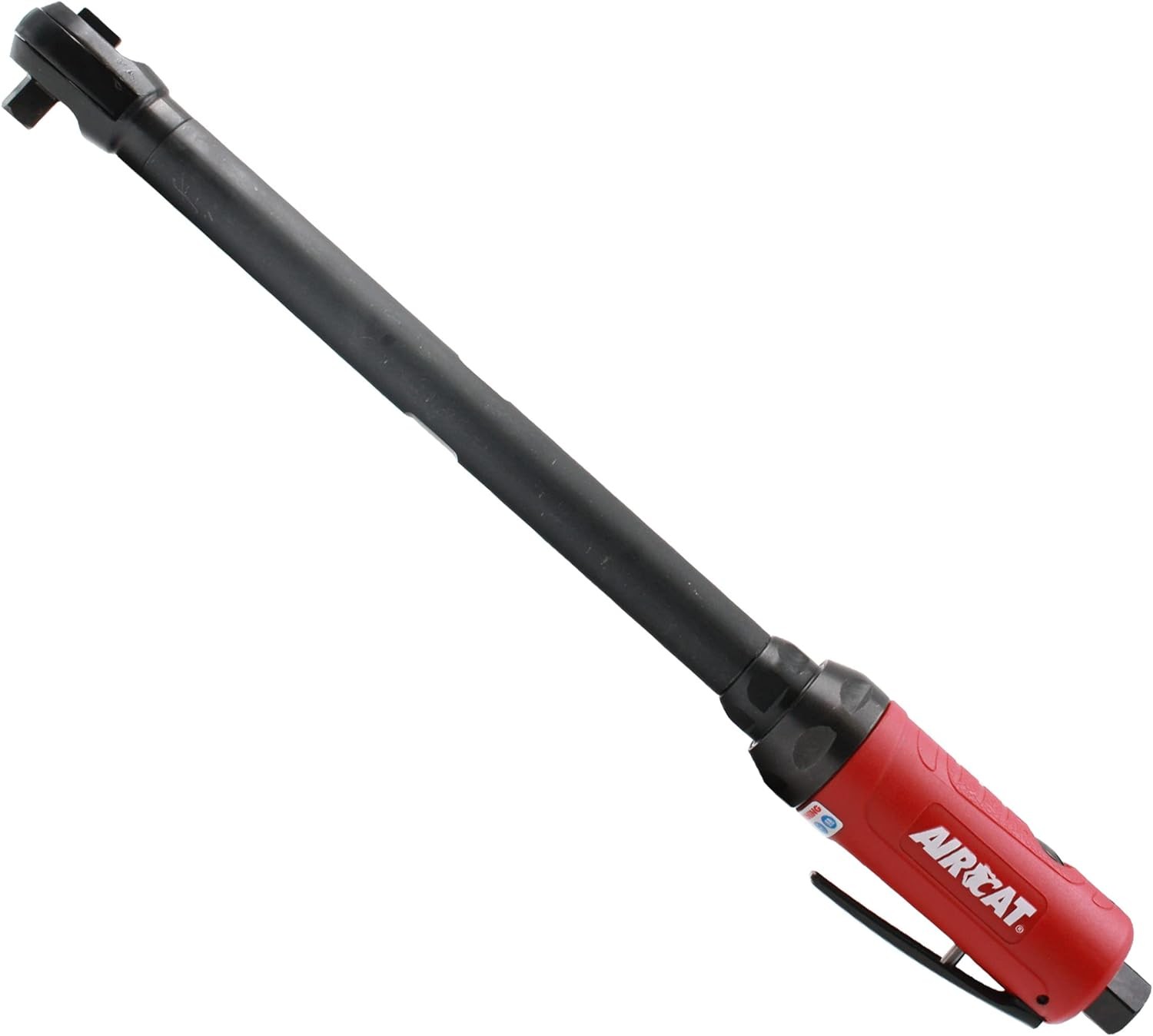

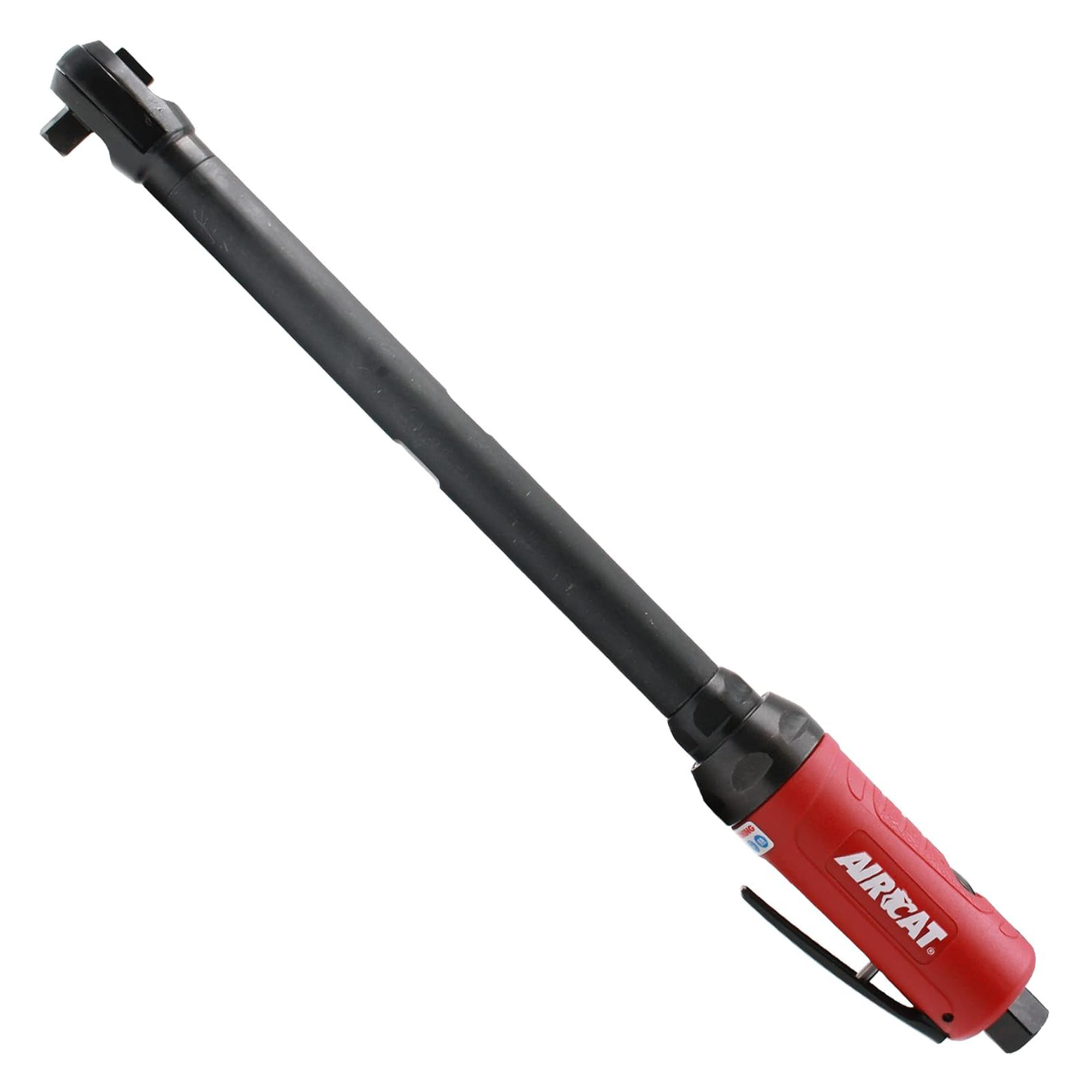

AIRCAT 1/4" LONG REACH RATCHET (15 INCH)

AIRCAT 1/4″ LONG REACH RATCHET (15 INCH)

808-15-25-A

1/4″ LONG REACH RATCHET (15 INCH)

SHARE

Product Details

35 ft-lb Maximum torque
200 RPM
Exclusive AIRCAT design
Extended drive shaft provides access for hard to reach fasteners
High grade materials and additional support bearings provide reliability

Specifications

Additional information

Square Drive (in.)	1/4-in.
Air Consumption (CFM)	3.5
Bolt Capacity (in)	3/8-in.
Air Inlet (NPT/BSP)	1/4-in.
Rec. Hose Size (in.)	3/8-in.
Weight (lb.)	3.1
Length (in.)	15.3
Free Speed (RPM)	200
Working Torque (ft-lb)	4-22 ft-lbs
Max. Torque (ft-lb)	35
Noise Levels (dBA)	85.4
Vibration Levels (m/sec2)	5.7
