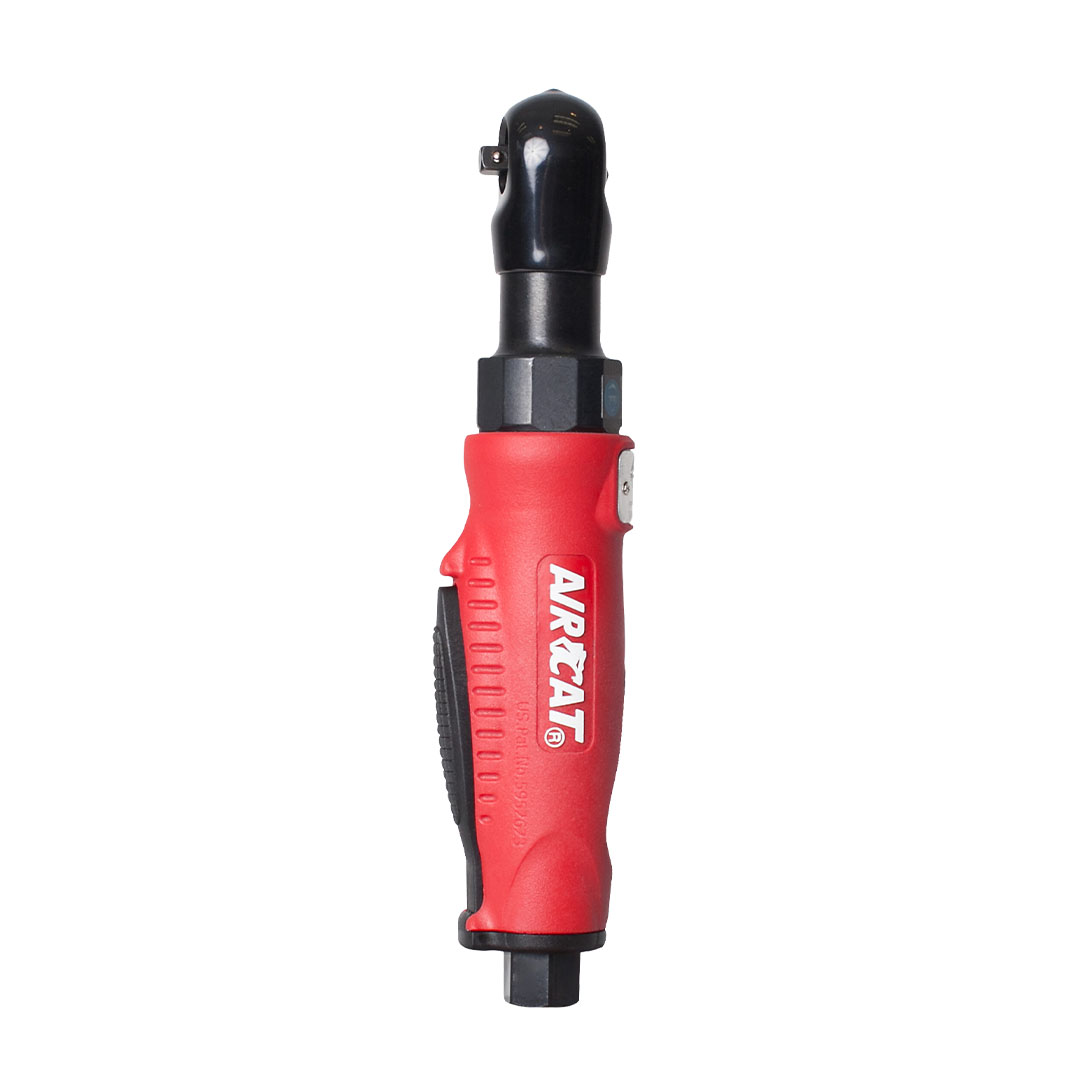

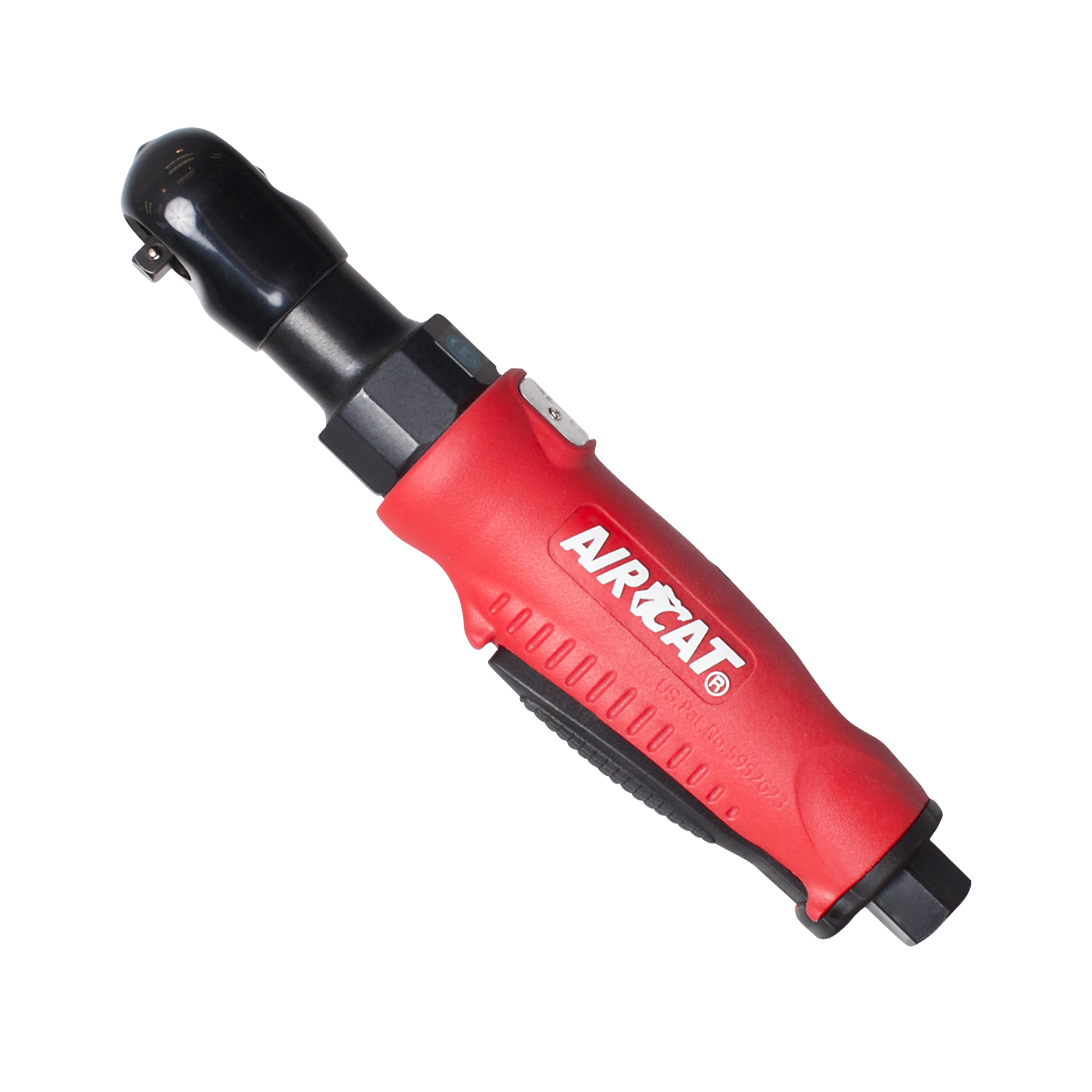

AIRCAT 3/8″ COMPOSITE RATCHET

Model: 801

The AIRCAT® 801 3/8-inch Composite Ratchet speeds up the removal and installation of fasteners to make short work of your engine, body, and interior chores. AIRCAT® 3/8 inch single-pawl ratchets are built with superior internal mechanics with patented quiet technology and ergonomically designed red composite handles, so you can work quietly and comfortably for prolonged periods.

Safety Manual Manual / Parts Fact Sheets Request Info Order Parts

Product Details +

35 ft-lb Maximum torque
320 RPM provides fast rundown
Single pawl mechanism
Superior internal mechanics
Patented quiet tuned exhaust (82 dBA)
Feather trigger for control – Most comfortable trigger lever in the industry!
Ergonomically designed housing

Specifications +

Maximum Torque (ft-lbs)	35
Working Torque (ft-lbs)	5-25
Free Speed (RPM)	320
Square Drive (in.)	3/8-in.
Bolt Capacity (in.)	3/8-in.
Weight (lb.)	1.6
Length (in.)	8.5-in.
Noise Levels d(B)A	82
Vibration Levels (m/sec2)	2.3
Air Consumption (CFM)	4
Air Inlet (NPT/BSP)	1/4-in.
Rec. Hose Size (in.)	3/8-in.
