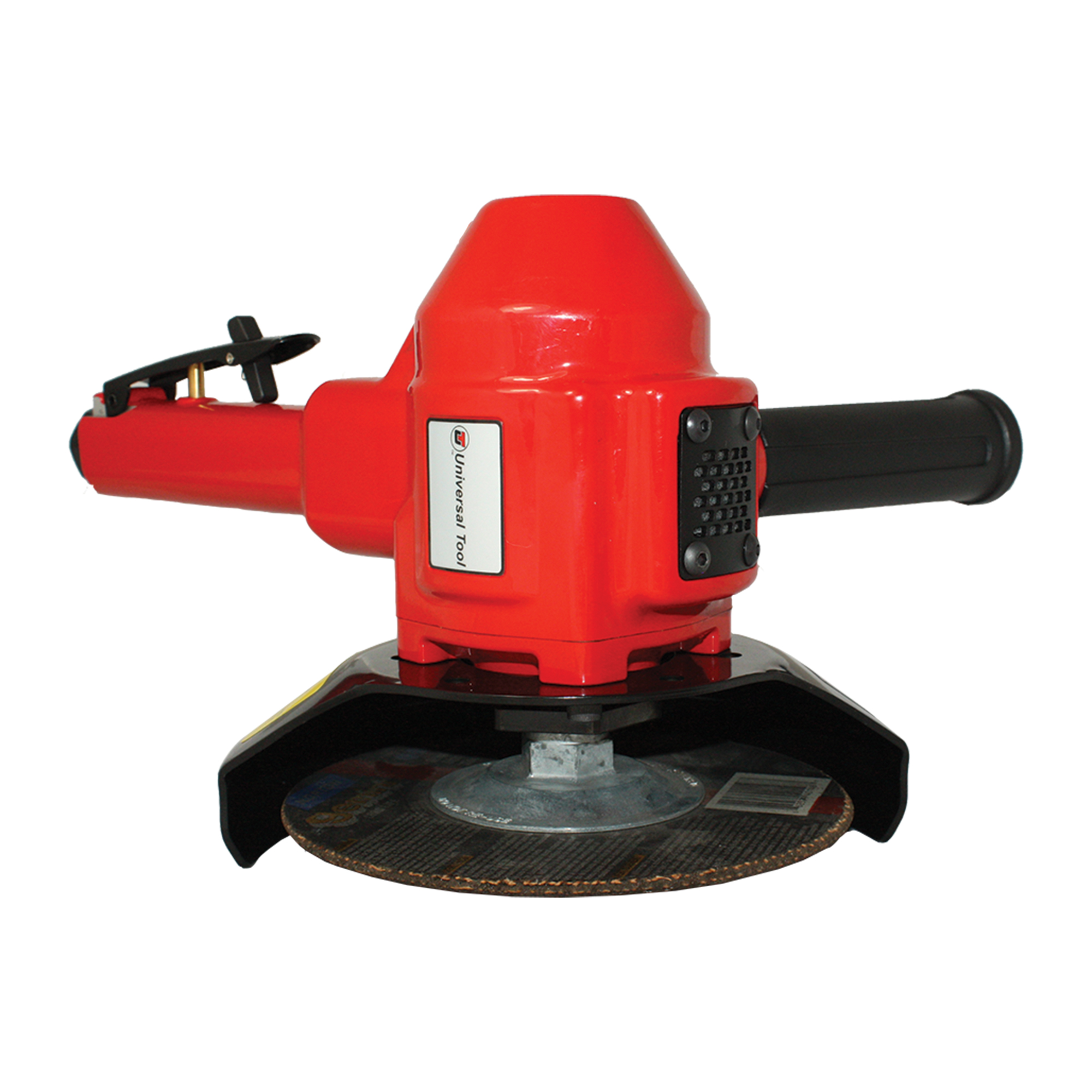

7″ Heavy-duty Vertical Grinder 3 HP

Model: UT8768-3V-60-7

Universal Tool UT8768-3V-60-7 7" Vertical Grinder 3HP features a 3.0 HP governed motor, high-grade aluminum alloy housing, a safety lock-off throttle and side assist handle, and wheel guards and flanges that follow ANSI standards. Built for heavy-duty continuous grinding.

Safety Manual Manual / Parts Fact Sheets Request Info Order Parts

Note: Product is only available in the USA.

Product Details +

Governed Motors for constant speed.
Housings made from high grade aluminum alloy for maximum strength.
Safety lock-off throttle and side assist handle for operating comfort
Internal silencing reduces noise level
Wheel guards and flanges follow ANSI standards
Best for: Heavy-duty continuous grinding

Specifications +

Motor (HP)	3
Motor (kw)	2.2
Speed (RPM)	6000
Guard Type	Type 27
Spindle Size (in)	5/8" - 11
Exhaust	Side
Weight (lbs)	9.25
Weight (kg)	3.85
Length (in)	12
Length (mm)	305
Air Inlet (NPT / BSP)	1/2-in.
Rec. Hose Size (in)	1/2-in.
Air Consumption (CFM)	80
Average Air Consumption (CFM)	20
Rec. Air Pressure	90 psi-6.2 bar
