7″ Vertical Grinder

UT8767-23

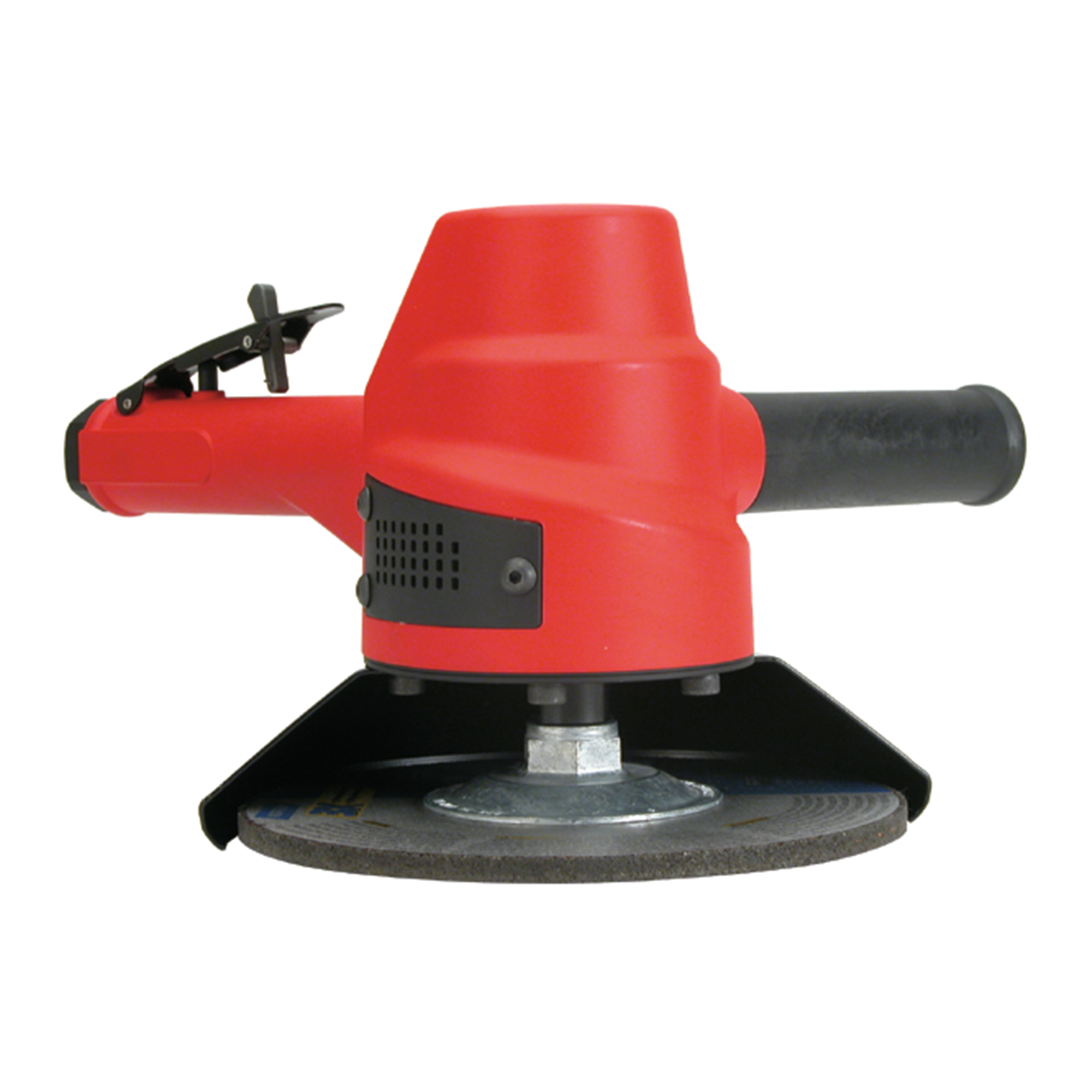

Universal Tool UT8767-23 7″ Vertical Grinder with 2.3 HP six-vane motor, double-bearing spindle design, safety lock-off throttle, and built-in exhaust silencer system. Best for: continuous heavy-duty grinding.

SHARE

Product Details

2.3 HP Motor prevents stall under load
Safety lock-off throttle
Governor controlled to maintain speed for optimum material removal
Double bearing spindle design for durability
Built-in exhaust silencer system Power Packed 2.3 HP Six Vane Motor
Best for: Continuous heavy duty grinding

Specifications

Additional information

Motor (HP)	2.3
Motor (kw)	1.71
Max Wheel Dia. (in.)	7" Type 27
guard-type	Type 27
Speed (RPM)	7000
Exhaust	Side
spindle-size-in	5/8" – 11
weight-lbs	7.2
Weight (kg)	3.3
Length (in.)	12.5
Length (mm)	318
Air Inlet (NPT / BSP)	1/2-in.
Rec. Hose Size (in)	1/2-in.
Air Consumption (cfm)	60
Average Air Consumption (CFM)	15
Rec. Air Pressure	90 psi-6.2 bar
