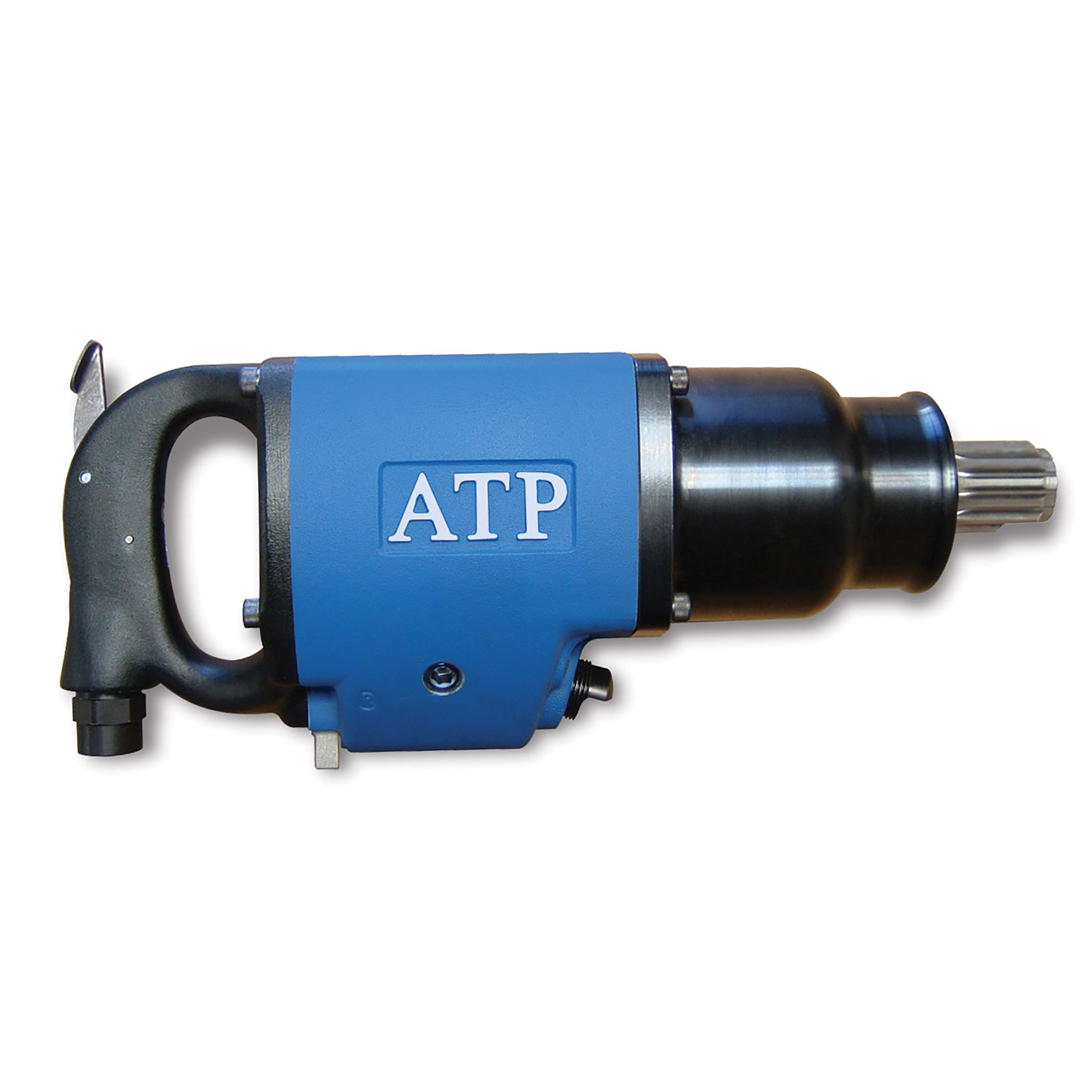

#5 Spline 1.5″ Drive Class Pneumatic Impact Wrench
Model: ATP1520EO-5S
It is highly regarded for its heavy-duty construction and is specifically designed for major bolting applications.
Product Details
1520 Series
• Two jaw clutch transfers high power
• Steel clutch housing
• Integral muffler for noise reduction
• Three-piece housing for ease of repair
• Anti-corrosion package
• End grip model comes with lift assist handle standard
Specifications
| Working Torque ft lb (Nm) | 2 | 500 (3 | 400) |
| Maximum Torque ft lb (Nm) | 3 | 000 (4 | 067) |
| Handle Type | End Grip I-T |
| Drive Type | #5 Spline |
| Retainer | Button & Ball Retention |
| Length in (mm) | 14.7 (373.3) |
| Weight lbs. (kg) | 33.7 (15.2) |
| Air Inlet NPT (in) | 1/2 NPT |
| Hose ID in (mm) | 3/4 (19) |
