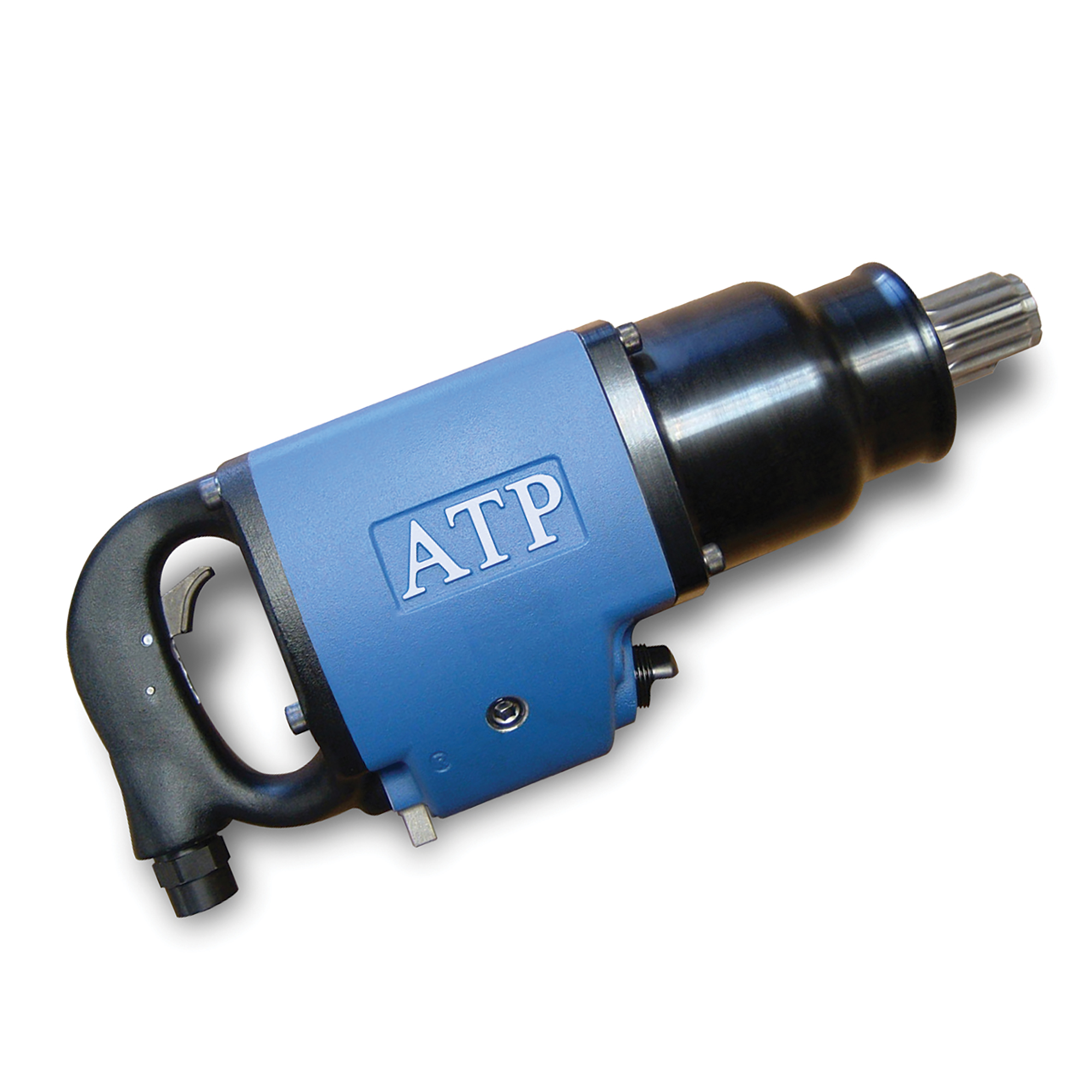

#5 Spline Outside Trigger Impact Wrench

Model: ATP1011EO-5S

Product Details +

1011 Series
• Two jaw clutch transfers high power
• Three-piece housing for ease of repair
• Steel housing clutch design
• Integral muffler for noise reduction
• Great power to weight ratio
• Anti-corrosion package
• End grip model comes with lift assist handle standard

Specifications +

Working Torque ft lb (Nm)	1 \| 800 (2 \| 440)
Max Torque ft lb (Nm)	2 \| 800 (3 \| 796)
Handle Type	End Grip O-T
Drive Type	#5 Spline
Retainer	Button
Length in (mm)	12.5 (317.5)
Weight lbs. (kg)	22.5 (10.2)
Air Inlet NPT (in)	1/2 NPT 3/4 (19)
