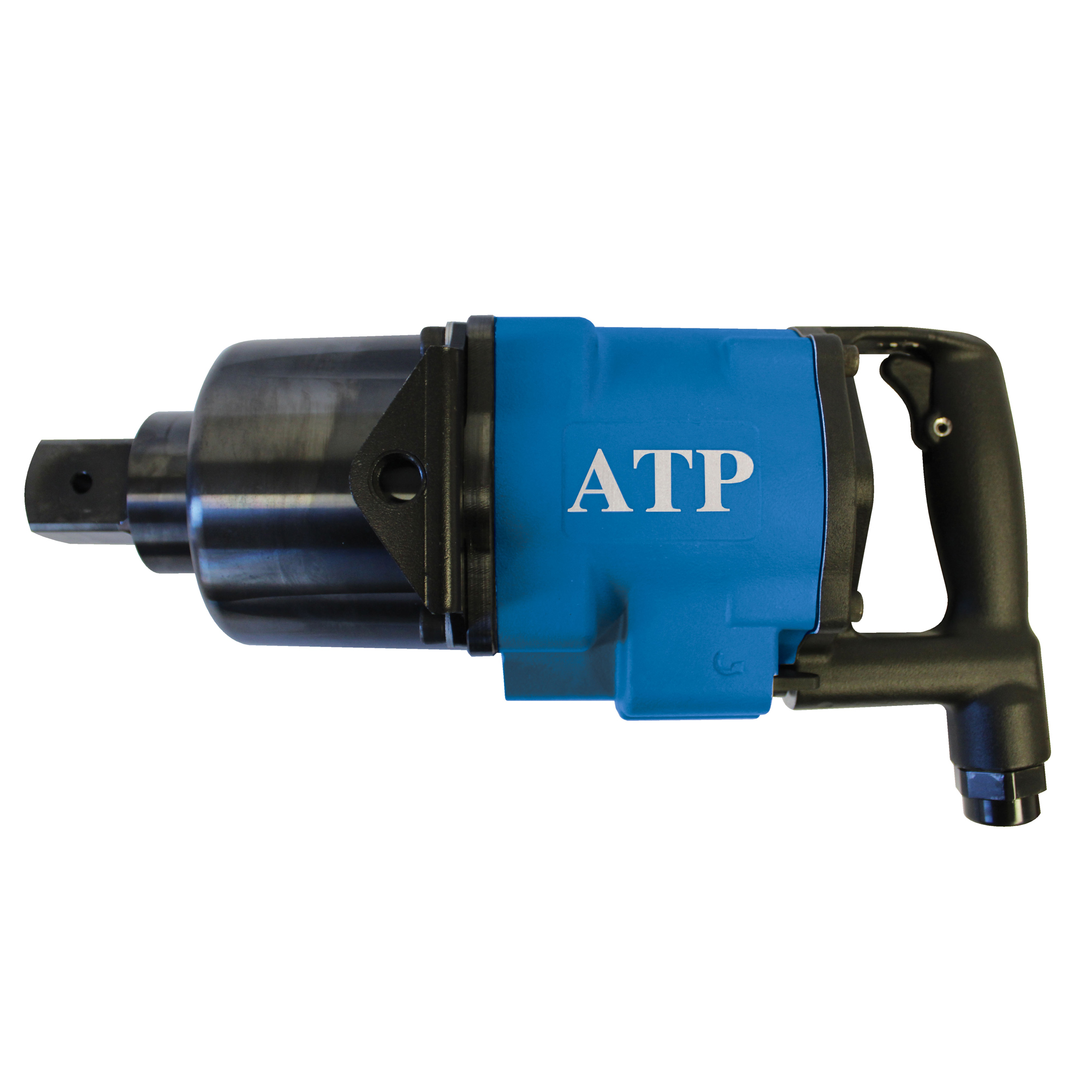

#5 Spline 1.5″ Class Outside Trigger Impact Wrench, Magnum Series
Model: ATP1555EO-5S
Product Details
1555 Magnum Series
• High output twin hammer mechanisms
• Bronze end plates for increased motor durability
• Model 1555 high output 7 vane motor
• Steel hammer case
• Integral muffler for noise reduction
• Three-piece housing for ease of repair
• Anti-corrosion package
• End grip model comes with lift assist handle standard
Specifications
| Working Torque ft lb (Nm) | 3 | 200 (4 | 339) |
| Maximum Torque ft lb (Nm) | 4 | 200 (5 | 694) |
| Handle Type | End Grip O-T |
| Drive Type | #5 Spline |
| Retainer | Button & Ball Retention |
| Length in (mm) | 16.8 (426.7) |
| Weight lbs. (kg) | 35.6 (16.1) |
| Air Inlet NPT (in) | 1/2 NPT |
| Hose ID in (mm) | 3/4 (19) |
