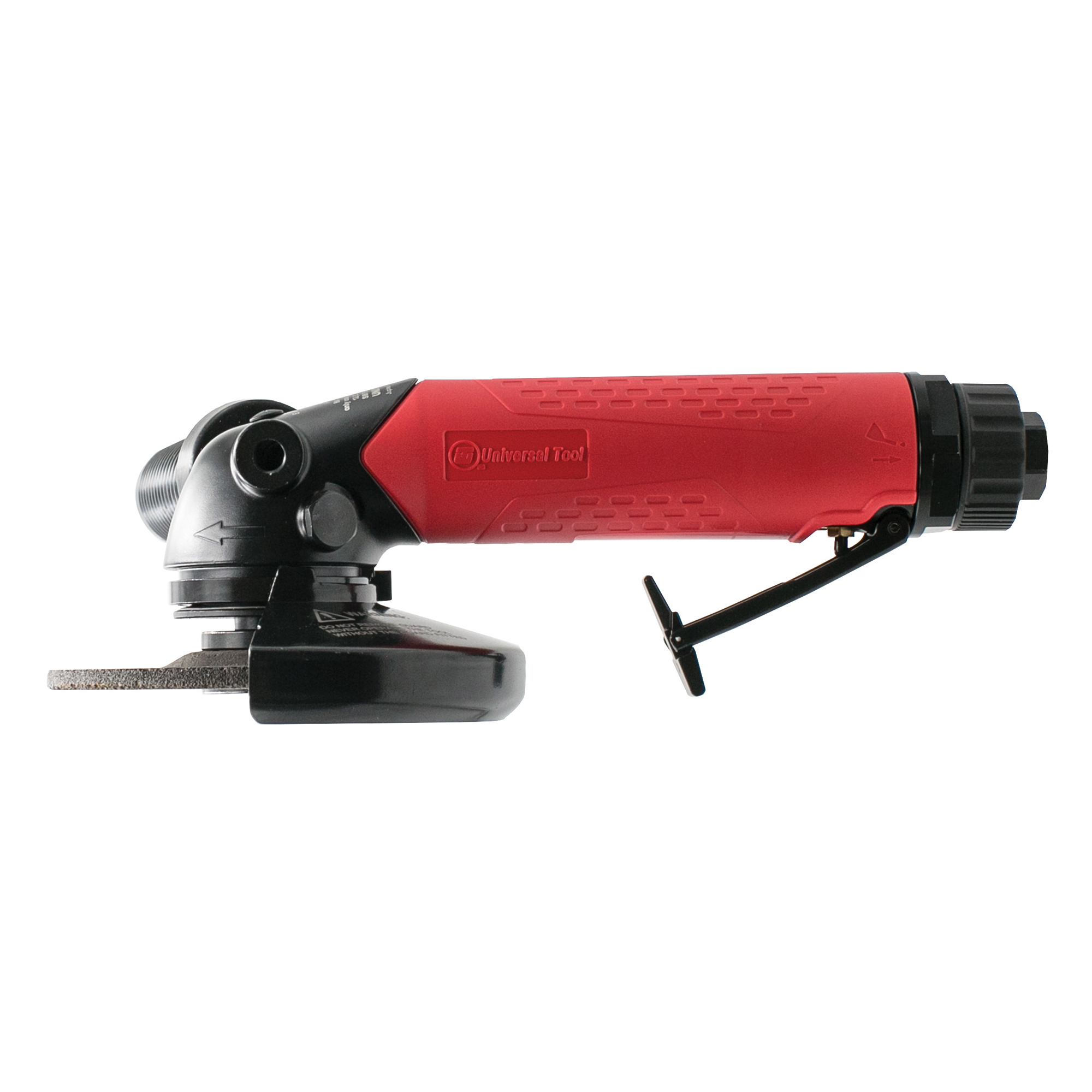

4-1/2-in. & 5″ 2.4 HP Angle Grinder

Model: UT8784-5

UT8784-5 4-1/2" & 5" Angle Grinder features a 2.4 HP governed motor for stall-free operation, alloy steel spiral gears with heavy-duty bearings, rapid-adjust guard, rotational rear-exhaust deflector, spindle lock, and vibration-damped side handle. Ideal for high-performance grinding.

Safety Manual Manual / Parts Fact Sheets Request Info Order Parts

Product Details +

2.4 HP governed motor for stall-free operation
Capable of 4-1/2-in. & 5″wheels
Alloy steel spiral gears with heavy duty bearings for added reliability
“Rapid-adjust” guard allows rotational adjustment without tools
Rotational rear-exhaust deflector reduces noise output and allows operator to adjust flow direction
Compact design – reduced weight
Spindle lock for rapid wheel change can be moved to right or left side of body
Vibration damped side handle included
Insulated composite handle over-mold increases operator comfort

Specifications +

Motor (HP)	2.4
Motor (kw)	1.79
Max. Wheel Size (in)	4-1/2 & 5
Guard Type	Rapid-Adjust
Speed (RPM)	12000
Exhaust	Rear
Spindle Size (in)	5/8"-11
weight-lbs	3.9
Weight (kg)	1.77
Length (in)	9.8
Length (mm)	248.92
Air Inlet (NPT / BSP)	3/8-in.
Rec. Hose Size (in)	1/2-in.
Air Consumption (CFM)	10
Average Air Consumption (CFM)	10
Rec. Air Pressure	90 psi-6.2 bar
