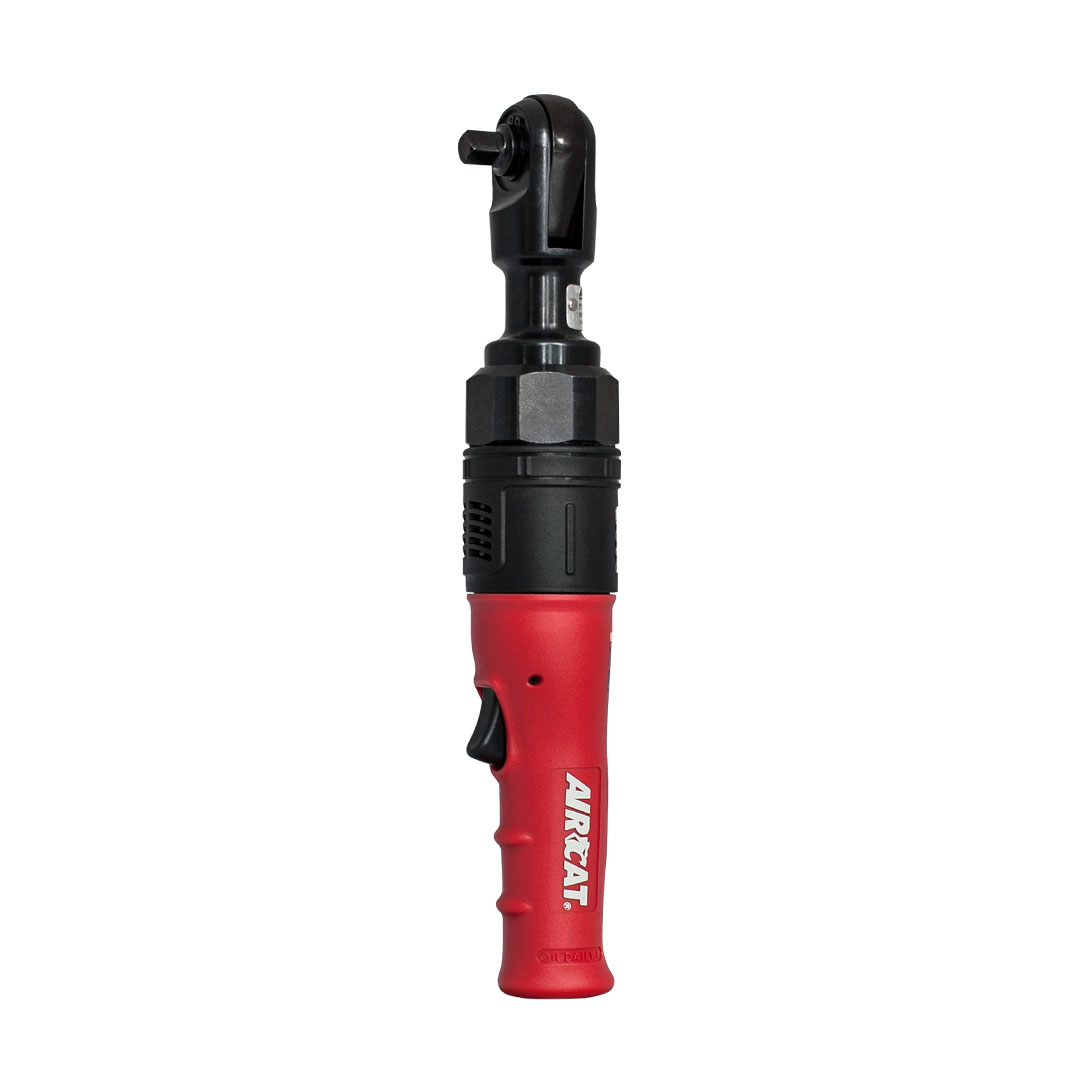

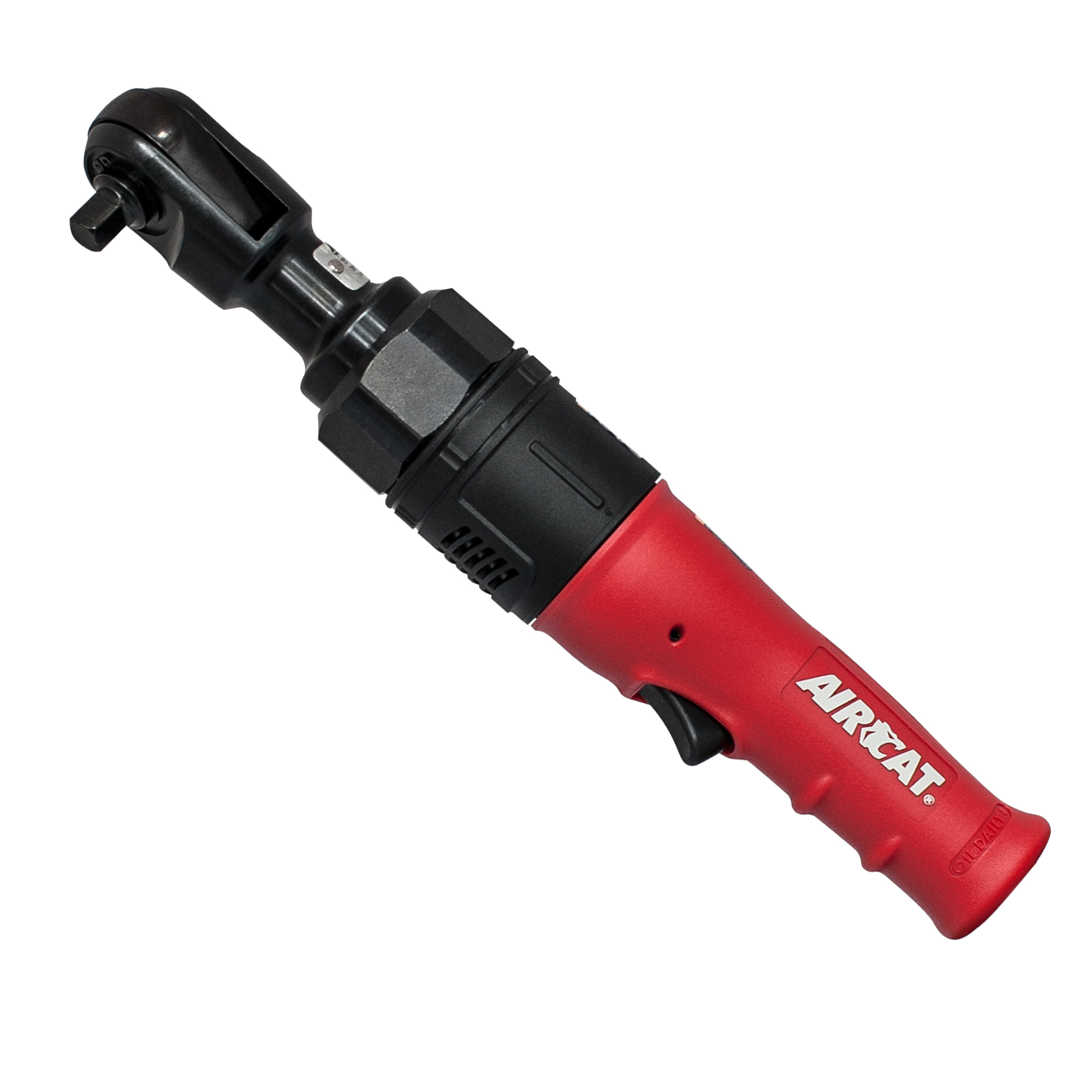

AIRCAT 1/2″ HIGH TORQUE RATCHET

Model: 805-HT-5

The AIRCAT® 805-HT-5 1/2-inch high-torque ratchet has an enlarged motor and ratchet head for added torque—a maximum of 130 foot-pounds. The needle-bearing construction ensures the reliability of this 180 RPM air tool.

Safety Manual Manual / Parts Fact Sheets Request Info Order Parts

Product Details +

130 ft-lb Maximum torque
180 RPM
Latest design ratchet head eliminates “spreading”
Reliable single pawl design
Extra large ratchet head increases reliability
Rapid response and variable speed trigger
Quiet for such a powerful ratchet (84 dBA)
Ergonomically designed contoured grip and trigger provide ultimate operating comfort

Specifications +

Maximum Torque (ft-lbs)	130
Working Torque (ft-lbs)	20-90
Free Speed (RPM)	180
Square Drive (in.)	1/2-in.
Bolt Capacity (in.)	1/2-in.
Weight (lbs.)	3.3
Length (in.)	12.45-in.
Noise Levels d(B)A	84
Vibration Levels (m/sec2)	6.6
Air Consumption (CFM)	6
Air Inlet (NPT/BSP)	1/4-in.
Rec. Hose Size (in.)	3/8-in.
