AIRCAT 3/8" HIGH TORQUE RATCHET

AIRCAT 3/8″ HIGH TORQUE RATCHET

805-HT

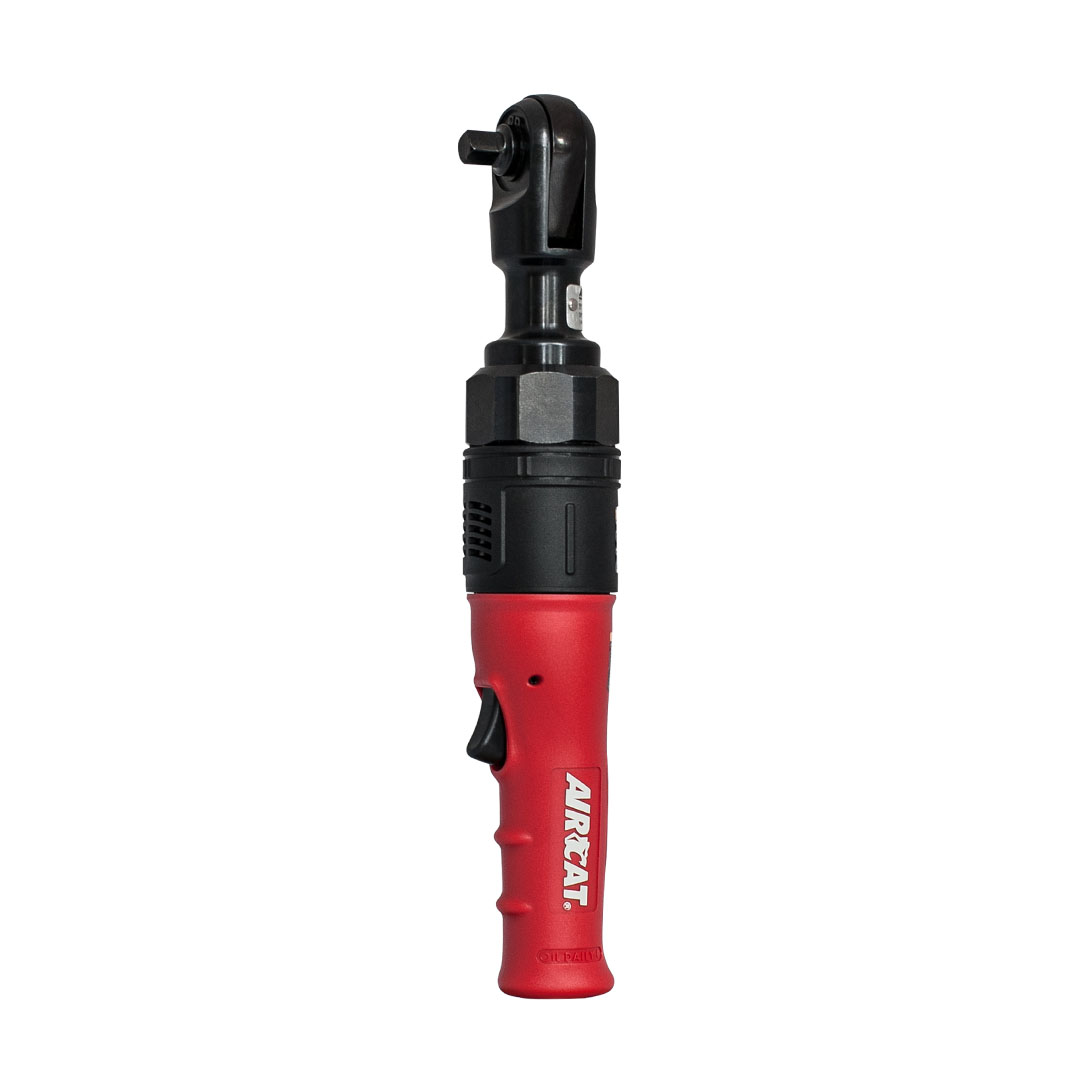

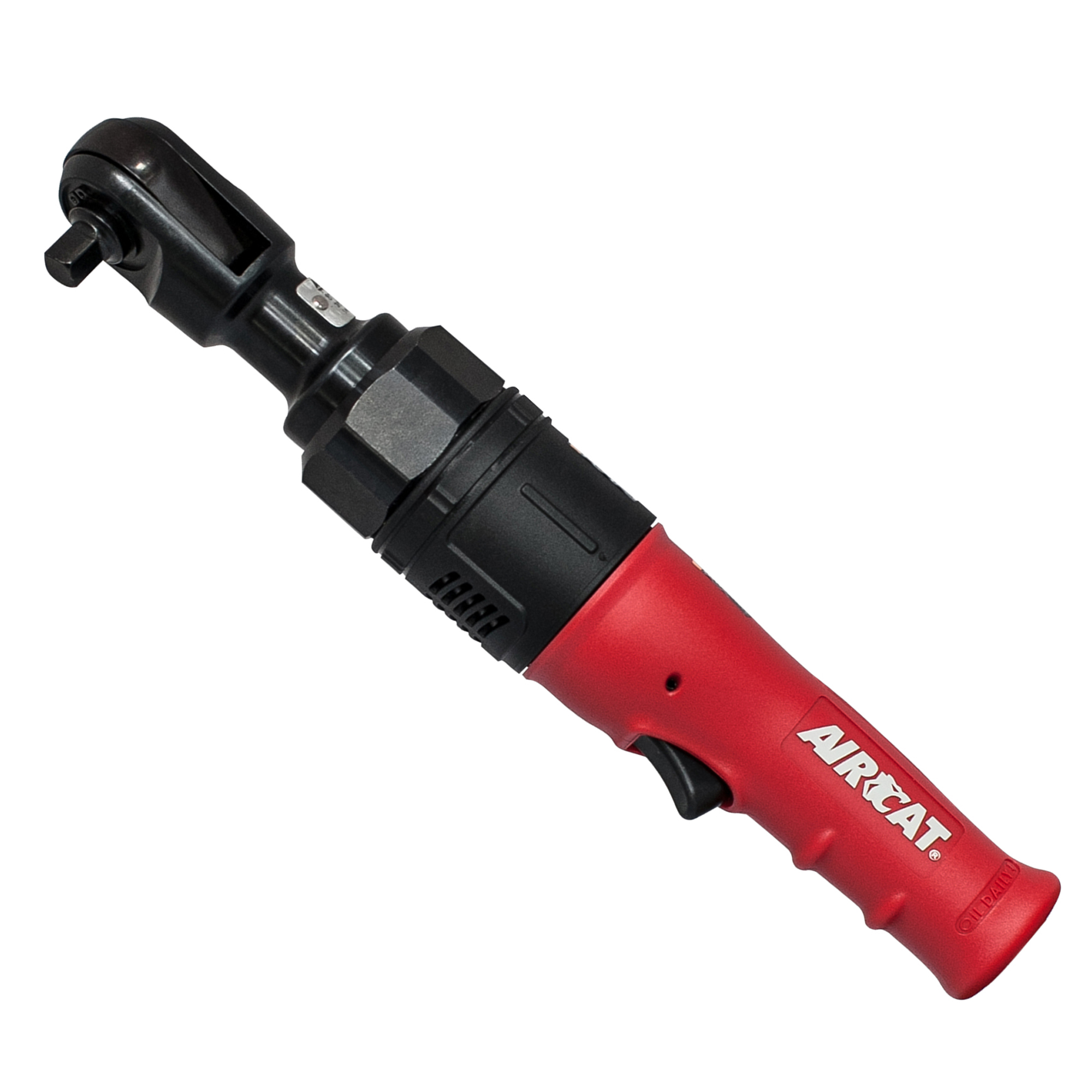

The AIRCAT 805-HT 3/8-inch high-torque ratchet has an enlarged motor and ratchet head for added torque—a maximum of 130 foot-pounds.

Safety Manual
Manual Parts
Fact Sheet
Request Info
Order Parts

SHARE

Product Details

  • 130 ft-lb Maximum torque
  • 180 RPM
  • Latest design ratchet head eliminates “spreading”
  • Reliable single pawl design
  • Extra large ratchet head increases reliability
  • Rapid response and variable speed trigger
  • Quiet for such a powerful ratchet (84 dBA)

Specifications

Additional information

Square Drive (in.)

3/8-in.
Air Consumption (CFM)

6
Bolt Capacity (in)

5/8-in.
Air Inlet (NPT/BSP)

1/4-in.
Rec. Hose Size (in.)

3/8-in.
Weight (lb.)

3.3
Length (in.)

12.45
Free Speed (RPM)

180
Working Torque (ft-lb)

20-90 ft-lbs
Max. Torque (ft-lb)

130
Noise Levels (dBA)

84
Vibration Levels (m/sec2)

6.6

The AIRCAT 805-HT 3/8-inch high-torque ratchet has an enlarged motor and ratchet head for added torque—a maximum of 130 foot-pounds.

Additional information

Square Drive (in.)

3/8-in.
Air Consumption (CFM)

6
Bolt Capacity (in)

5/8-in.
Air Inlet (NPT/BSP)

1/4-in.
Rec. Hose Size (in.)

3/8-in.
Weight (lb.)

3.3
Length (in.)

12.45
Free Speed (RPM)

180
Working Torque (ft-lb)

20-90 ft-lbs
Max. Torque (ft-lb)

130
Noise Levels (dBA)

84
Vibration Levels (m/sec2)

6.6
