TFP200 Air TCT
Model: HP200-PNEU
Note:
products is not available in the USA.
Product Details
- 195mm cutting width
- Easy to use, maintain and maneuver
- Precise screw type cutter height adjustment for accurate removal and milling
- Angled dust port allows connection of industrial dust collector giving virtually dust free performance

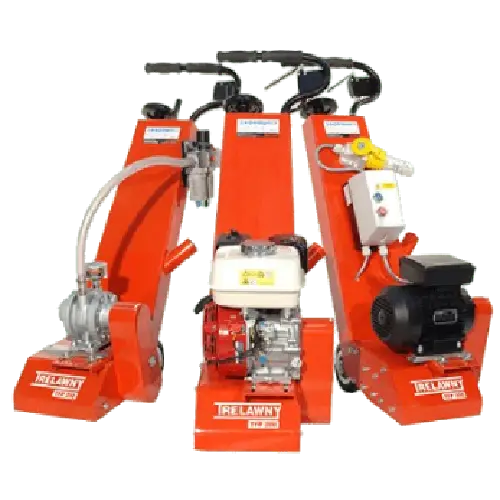

- Choice of electric, petrol and pneumatic power sources for operation in a wide range of applications
TCT Cutters (steel) 2.9 m/s2 (K=+0.63m/s2) Star Cutters (concrete) 3.7m/s2 (K=+0.7m/s2) Star Cutters (steel) 3.8m/s2 (K=+0.98m/s2) Beam Cutters (concrete) 4.8m/s2 (K=+0.79m/s2) Beam Cutters (steel) 5.4m/s2 (K=+0.9m/s2) Milling Cutters (concrete) 9.5 m/s2 (K=+1.26m/s2) Milling Cutters (steel) 12.6 m/s2 (K=+1.36m/s2) Wire Brush (concrete) 7.6 m/s2 (K=+2.49m/s2) Wire Brush (steel) 11.9 m/s2 (K=3.16m/s2)
Specifications
| Height (mm) | 900 |
| Width (mm) | 350 |
| Cutting Width (mm) | 195 |
| Length (mm) | 900 |
| Weight (kg) | 64 |
| Cutter head speed | 1528 rpm |
| Working distance from wall | 55 mm |
| Air Consumption (CFM) | 78 - 165 (lps - cfm) |
| Power hp kw | 3.5 - 2.6 |
| Vibration levels | 4.4 |
| Maximum cutting depth mm | 3 |
| Tct cutters concrete | 4.4 m/s2 (K=+1.43m/s2) |
