TFP200 110v 1ph 60hz TCT
Model: HP200-110EM60
Note:
products is not available in the USA.
Product Details
- 195mm cutting width
- Easy to use, maintain and manoeuvre
- Precise screw type cutter height adjustment for accurate removal and milling
- Angled dust port allows connection of industrial dust collector giving virtually dust free performance

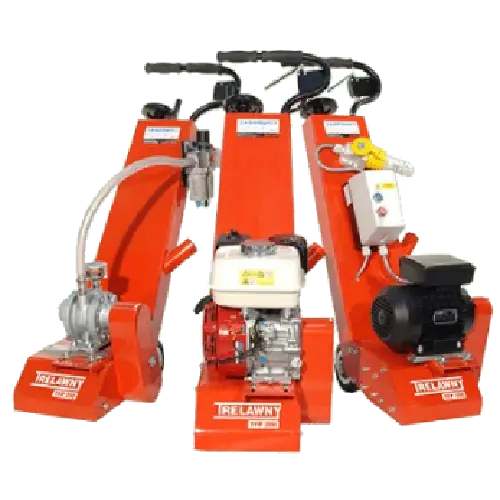

- Choice of electric, petrol and pneumatic power sources for operation in a wide range of applications
TCT Cutters (concrete) 4.4 m/s2 (K=+1.43m/s2) TCT Cutters (steel) 2.9 m/s2 (K=+0.63m/s2) Star Cutters (concrete) 3.7m/s2 (K=+0.7m/s2) Star Cutters (steel) 3.8m/s2 (K=+0.98m/s2) Beam Cutters (concrete) 4.8m/s2 (K=+0.79m/s2) Beam Cutters (steel) 5.4m/s2 (K=+0.9m/s2) Milling Cutters (concrete) 7.0m/s2 (K=+1.41m/s2) Milling Cutters (steel) 7.0m/s2 (K=+1.41m/s2) Milling Cutters (steel) 4.8m/s2 (K=+1.3m/s2) Wire Brush (concrete) 2.4m/s2 (K=+0.92m/s2) Wire Brush (steel) 3.8m/s2 (K=0.79m/s2)
Specifications
| Height (mm) | 900 |
| Width (mm) | 350 |
| Cutting Width (mm) | 195 |
| Length (mm) | 900 |
| Weight (kg) | 68 |
| Cutter head speed | 1650 rpm |
| Working distance from wall | 55 mm |
| Plug size | 32 Amp 3 Pin |
| Vibration levels | 4.4 |
| Voltage | 110 |
| Cycle | 60hz |
| Transformer size | 3 Kva |
| Cable size mm | Min 2.5Core |
| Cable length m | 15-30 |
| Power hp kw | 3-2.2 |
| Maximum cutting depth mm | 3 |
| Vacuum take off diameter | 50 |
