Scribe/Engraving Chisel Kit
Model: UT8617K
The UT8617K Scribe & Engraving Chisel Kit provides precise pneumatic power for engraving, scribing, and light chipping applications. Ideal for detailed work on metal, stone, and marble surfaces.
Note:
products is not available in the USA.
Product Details
- Provides sufficient power for engraving & mini chipping applications
- High precision throttle ensures critical control

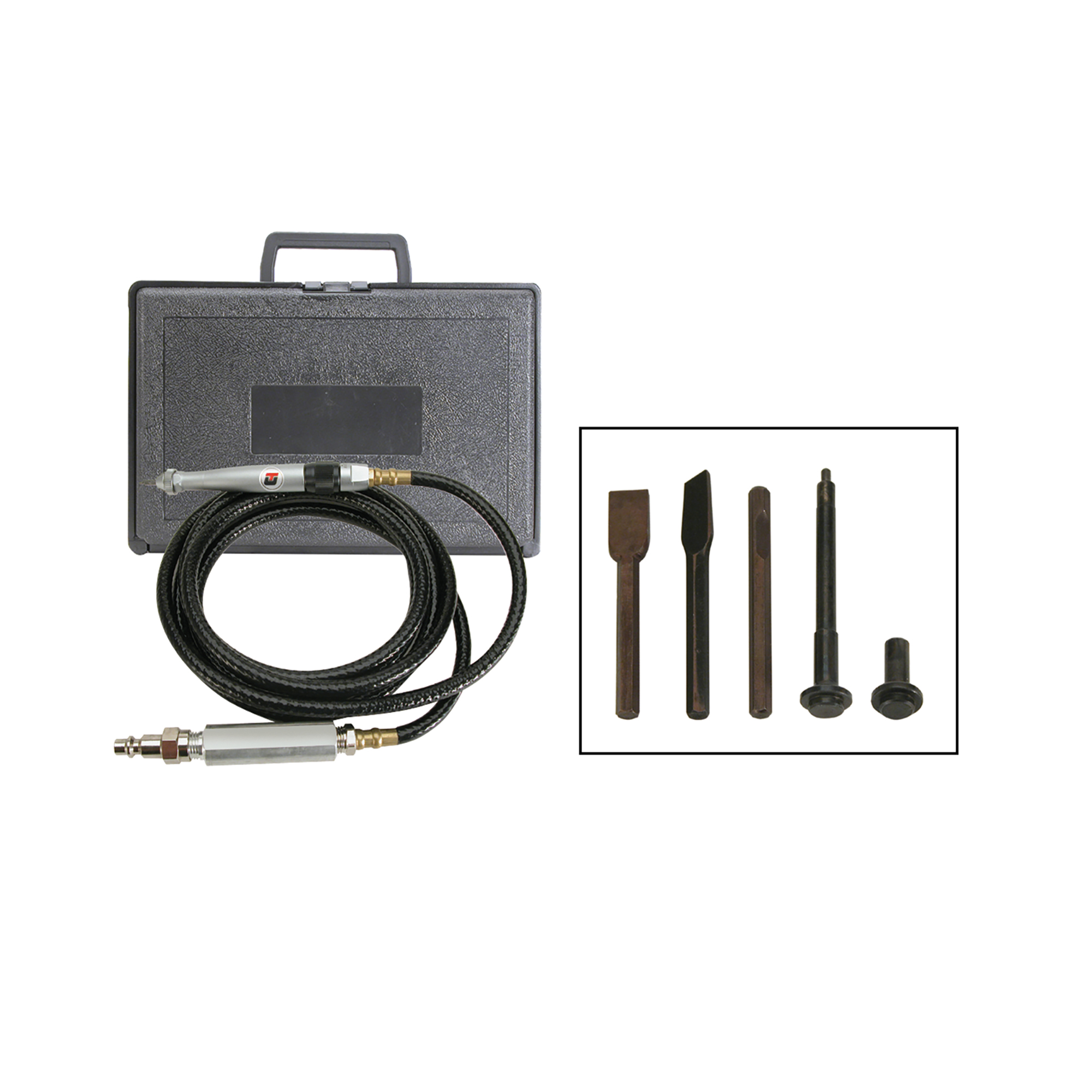

- Complete with stylus, flat, round & chisel blanks, air hose and filter connection
- Best for: Precision engraving of metals, stone and marble
Specifications
| Retainer | Screw |
| Housing Material | Aluminum |
| Bushing (in) | 1/8-in. |
| Blow per minute bpm | 13, 500 |
| Bore (in) | 0.228 |
| Stroke (in) | 3/16-in. |
| weight-lbs | 0.3 |
| Weight (kg) | 1.4 |
| Length (in) | 5 |
| Length (mm) | 127 |
| Air Inlet (NPT / BSP) | 1/4-in. |
| Rec. Hose Size (in) | 3/16-in. |
| Air Consumption (CFM) | 1.1 |
| Average Air Consumption (CFM) | 0.3 |
| Recommended air pressure | 90 psi -6.2 bar |
