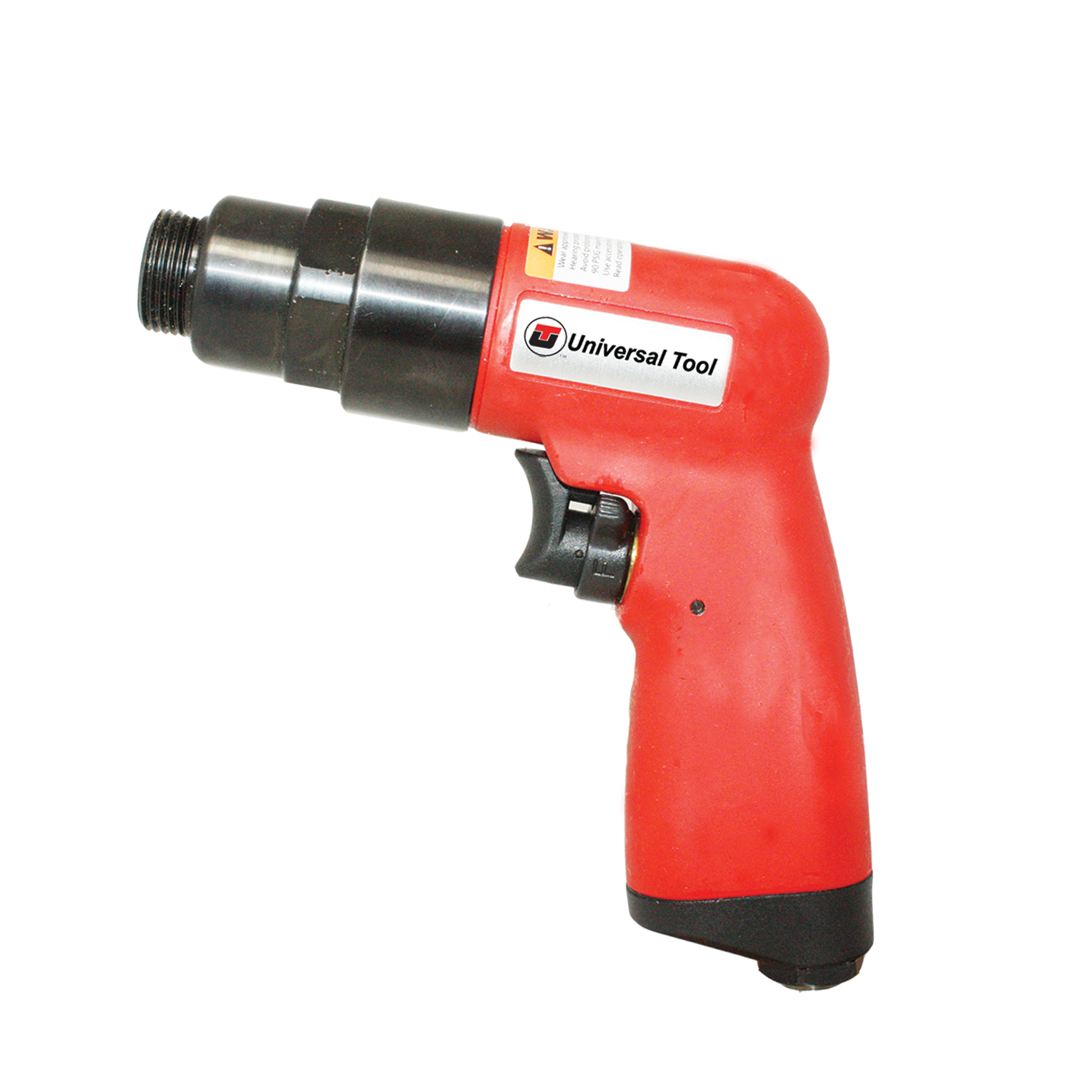

Reversible Internal Spline Drive Tool 3000 RPM

UT8895RSP-30

The Universal Tool UT8895RSP-30 Reversible Internal Spline Drive Tool features a .8 HP motor for ultimate stall resistance delivering 3,000 RPM.

SHARE

Product Details

  • 0.8 HP Motor for ultimate stall resistance
  • Fully caged gears with needle bearings for ultimate reliability
  • Ported throttle valve for ultimate control and reliability
  • Through handle exhaust with built-in silencing system
  • Advanced ergonomically designed handle with “Softouch” coating offers ultimate comfort and reduced vibration
  • Internal Spline Drive for Use with Universal Tool or Jiffy® “L”- Foot and Pancake Drilling Attachments
  • Reversible For Back Drilling Requirements
  • Best for: Continuous precision air frame work

Specifications

Additional information

Motor (HP)

0.8

Motor (kw)

0.59

gear-ratio

6.6:1

Speed (RPM)

3000

Exhaust

Handle

Chuck Size (in)

Internal Spline

weight-lbs

2.1

Weight (kg)

1

Length (in.)

7

Length (mm)

178

Air Inlet (NPT / BSP)

1/4-in.

Rec. Hose Size (in)

3/8-in.

Air Consumption (cfm)

18

Avg. Air Consumption (CFM)

4.5

Rec. Air Pressure

90 psi-6.2 bar
