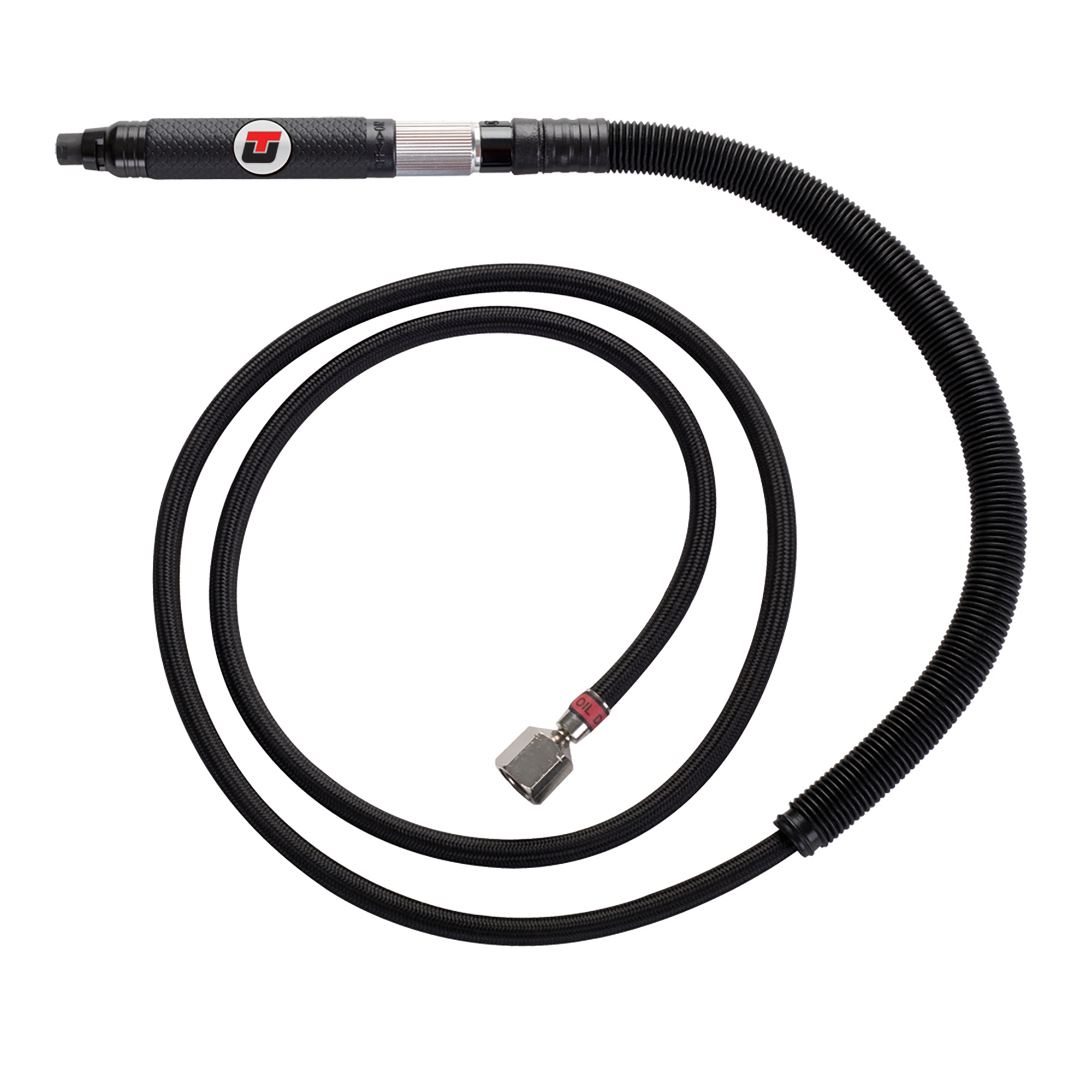

1/8″ Pencil Grinder

Model: UT8714

Universal Tool UT8714 Pencil Grinder features double front spindle bearings for durability and low vibration, roll throttle and small diameter grip for precise control, rear exhaust for a cleaner work area, and coaxial hose assembly. Ideal for precision grinding in mold and die maintenance.

Safety Manual Manual / Parts Fact Sheets Request Info Order Parts

Product Details +

Double front spindle bearing for increased durability and reduced vibration
Roll throttle and small diameter grip for constant speed and operator control
Supplied complete with coaxial hose assembly
Rear exhaust keeps work area clean from cuttings
Best for: Precision grinding in mold and die maintenance

Specifications +

Motor (HP)	0.25
Motor (kw)	0.18
Max. Wheel Dia. (in.)	1/8-in.
Speed (RPM)	70000
Exhaust	Rear
Collet Size (in)	1/8-in.
weight-lbs	0.5
Weight (kg)	0.2
Length (in)	4.75
Length (mm)	121
Air Inlet (NPT / BSP)	1/4-in.
Rec. Hose Size (in)	1/4-in.
Air Consumption (CFM)	12
Average Air Consumption (CFM)	5.7
Rec. Air Pressure	90 psi-6.2 bar
