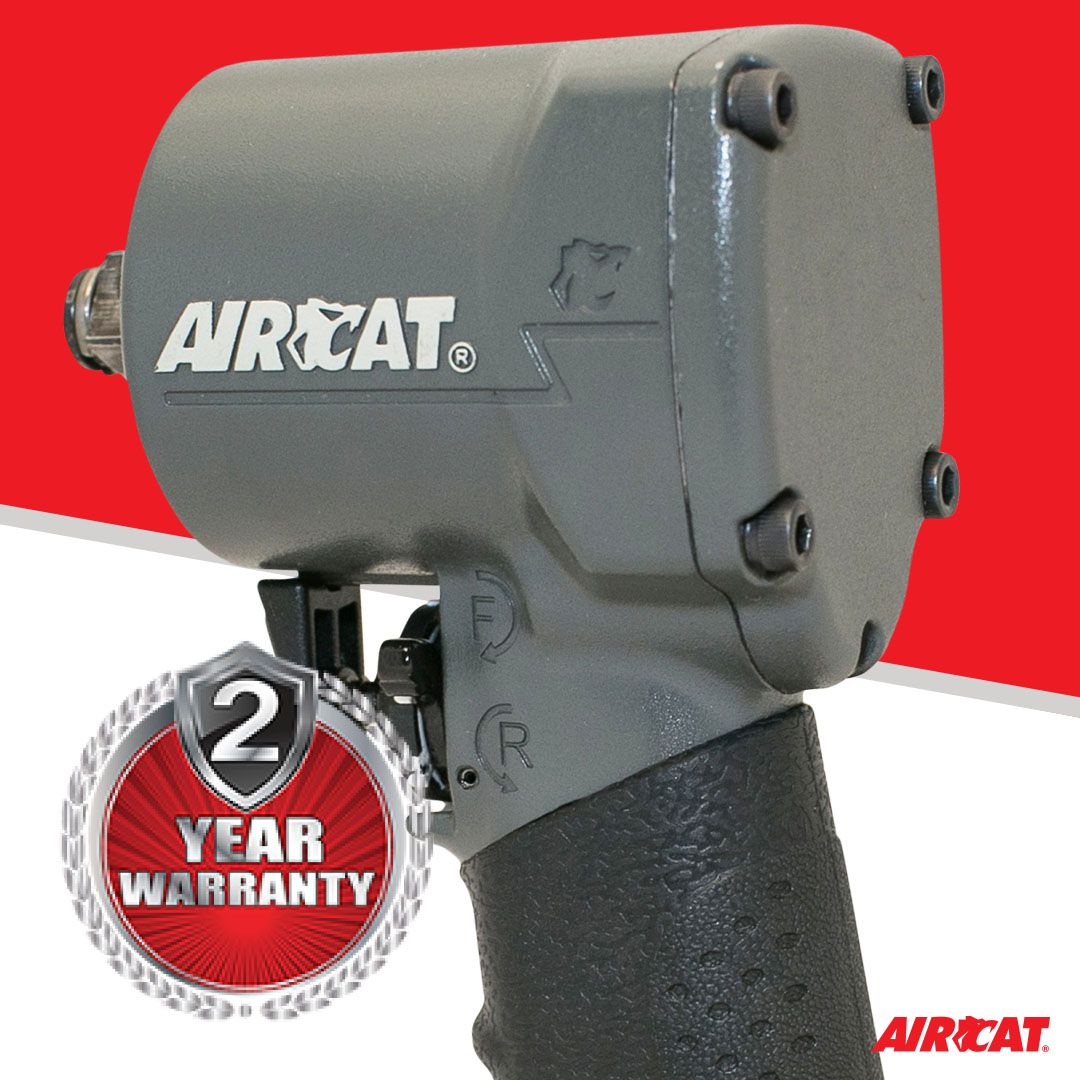

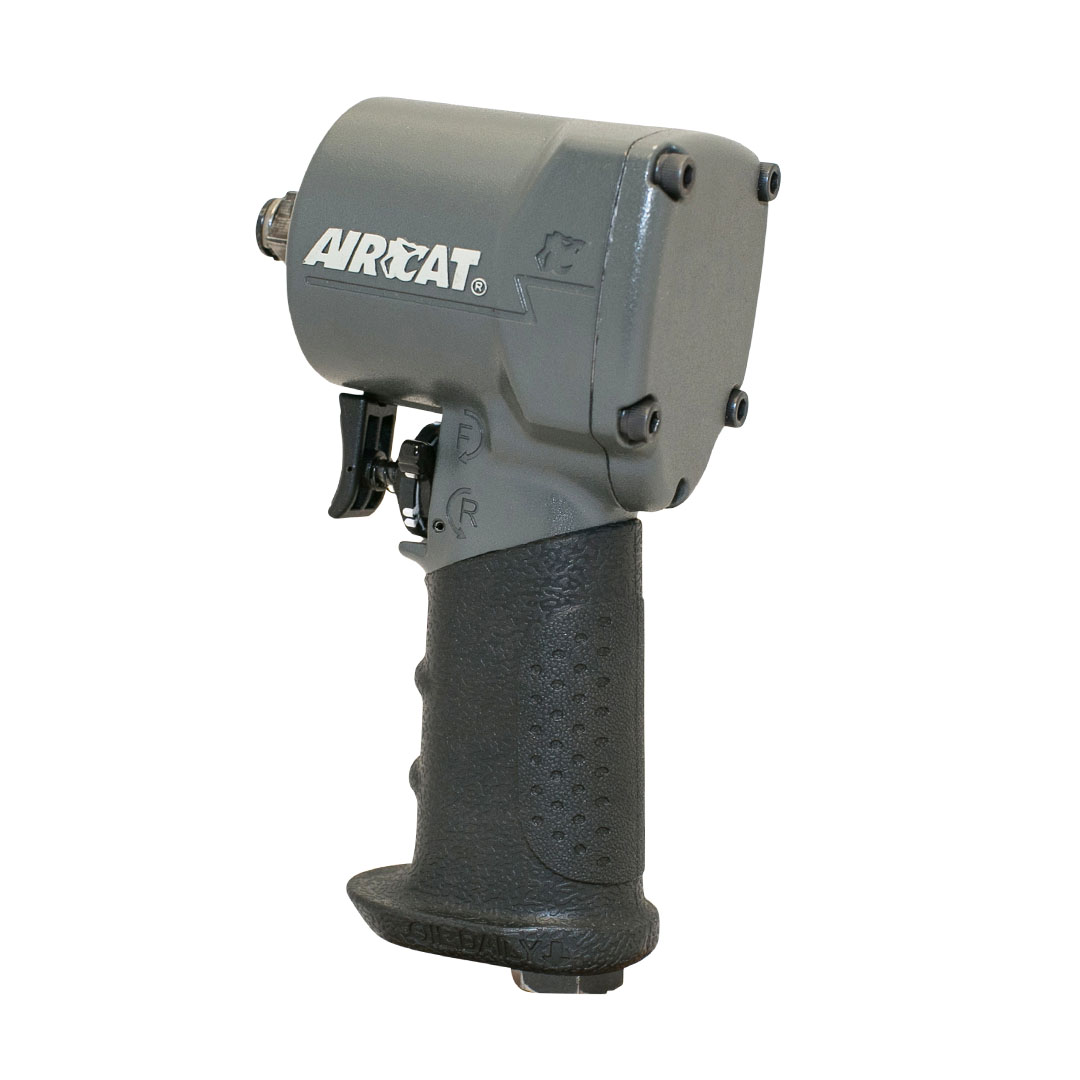

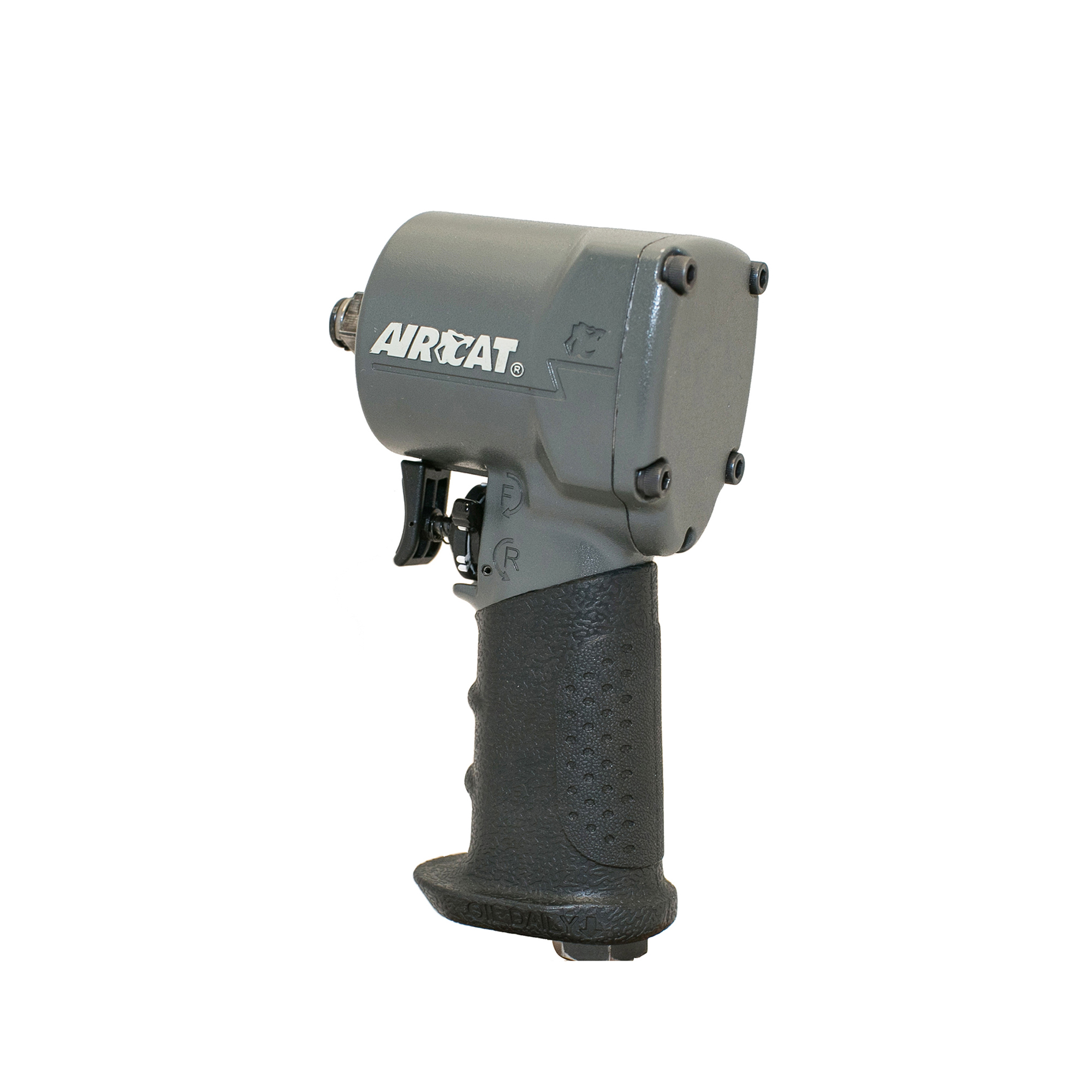

AIRCAT 3/8″ STUBBY IMPACT WRENCH

Model: 1077-TH

The AIRCAT 1077-TH 3/8" Stubby Impact Wrench delivers 500 ft-lbs of maximum torque and 700 ft-lbs of loosening torque in a compact 3.85" design. Featuring a reliable jumbo hammer mechanism, low weight aluminum housing, and patented Silencing Technology, it provides powerful performance with improved control and comfort.

Safety Manual Manual / Parts Fact Sheets Request Info Order Parts

Product Details +

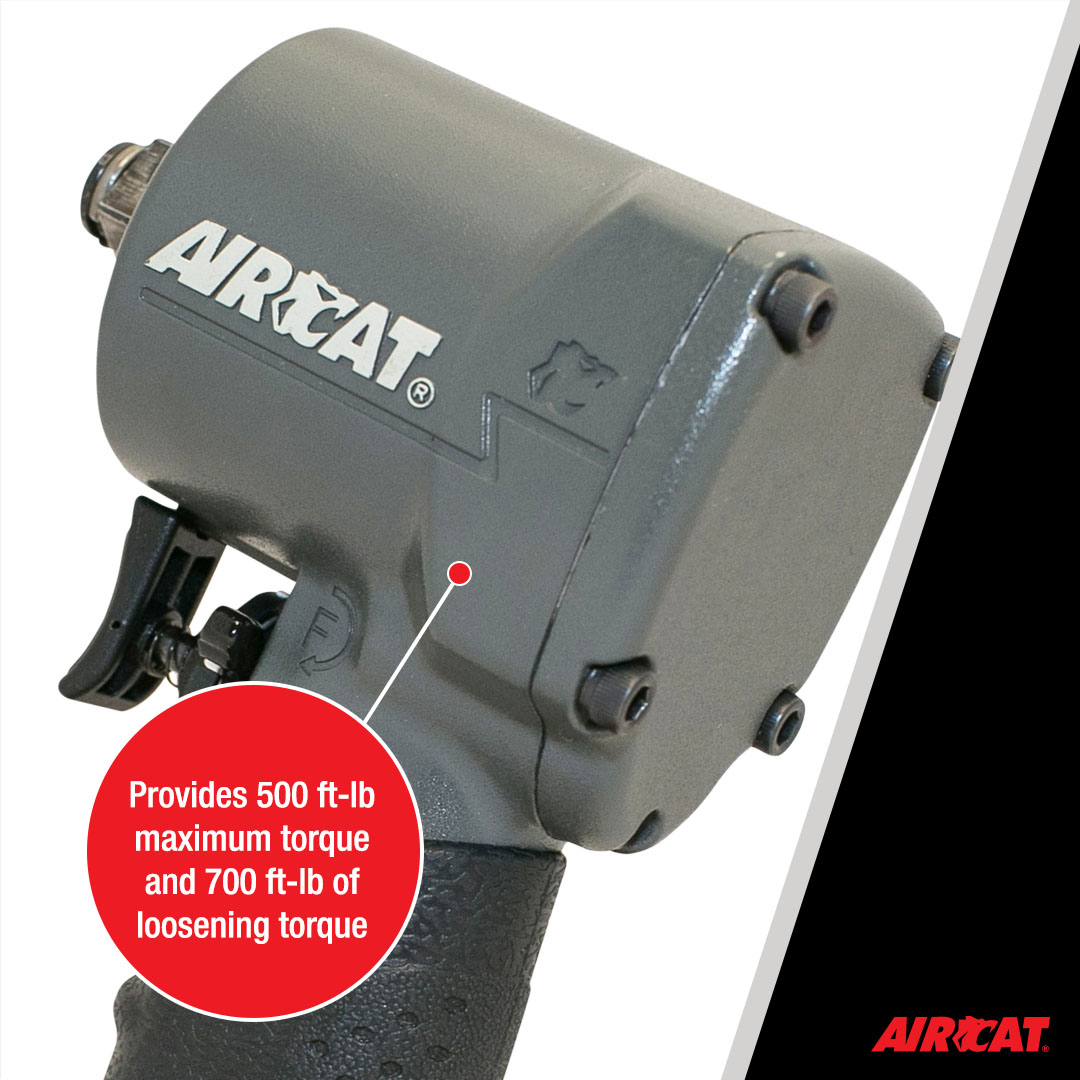

Provides 500 ft-lb of maximum torque and 700 ft-lb of loosening torque

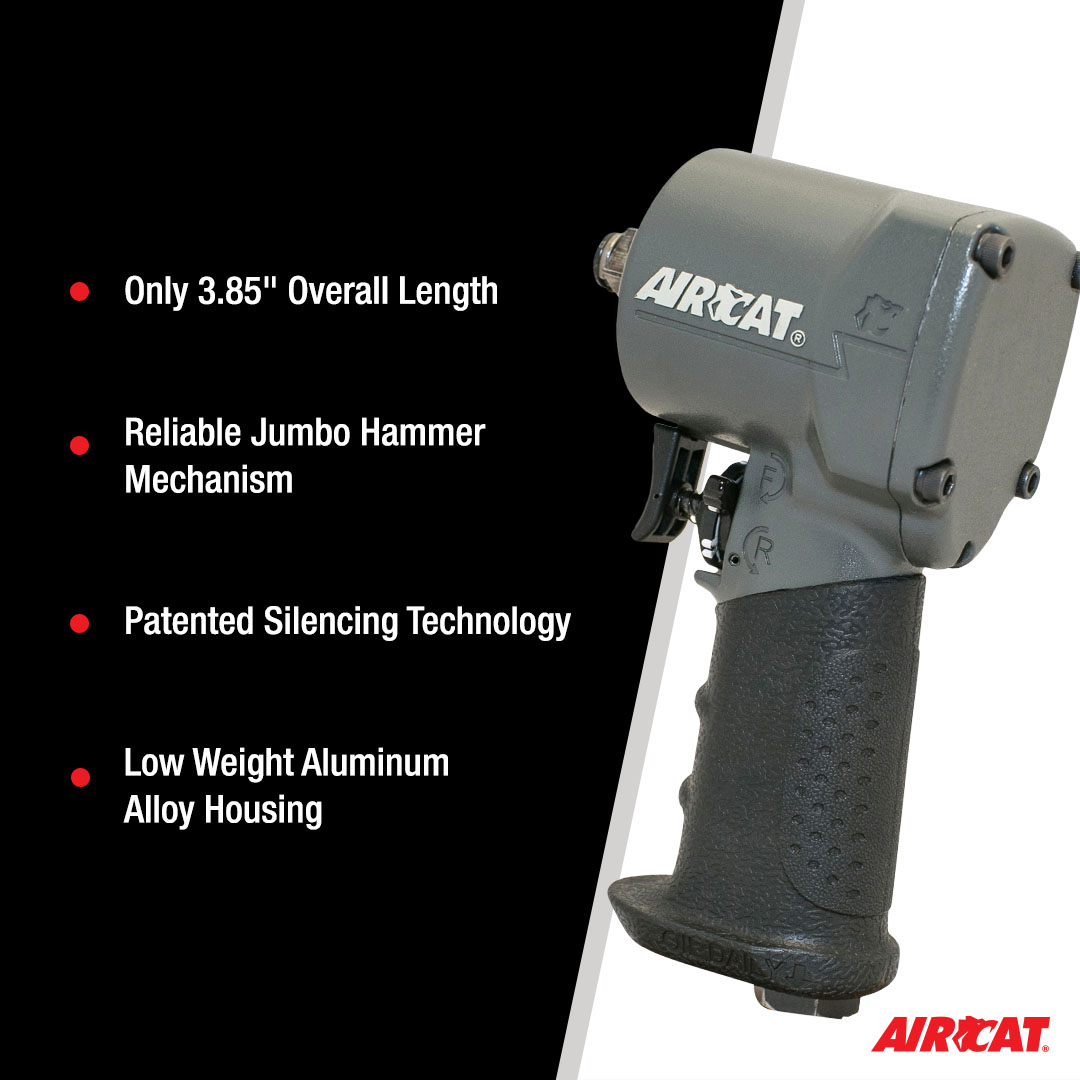

Only 3.85 overall length

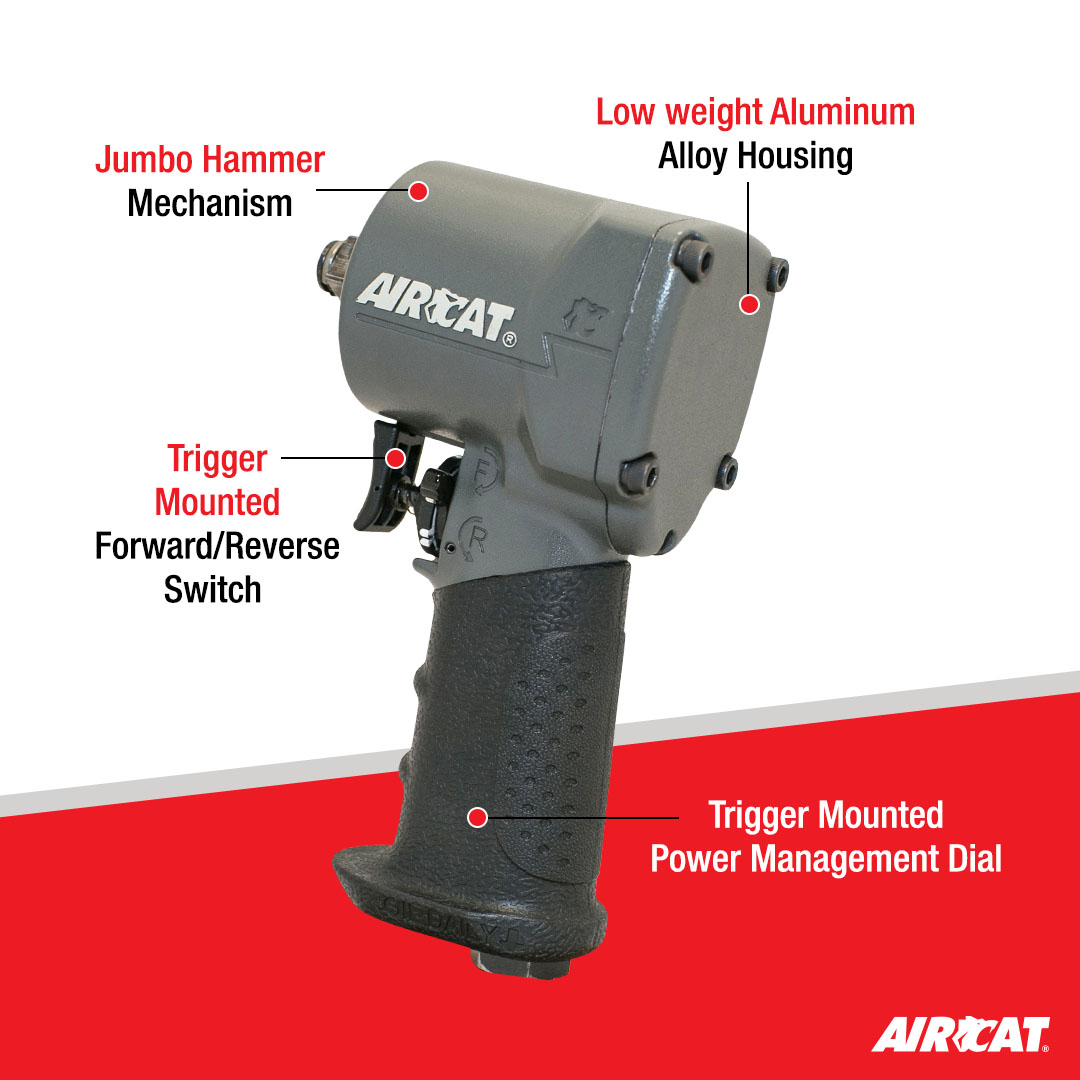

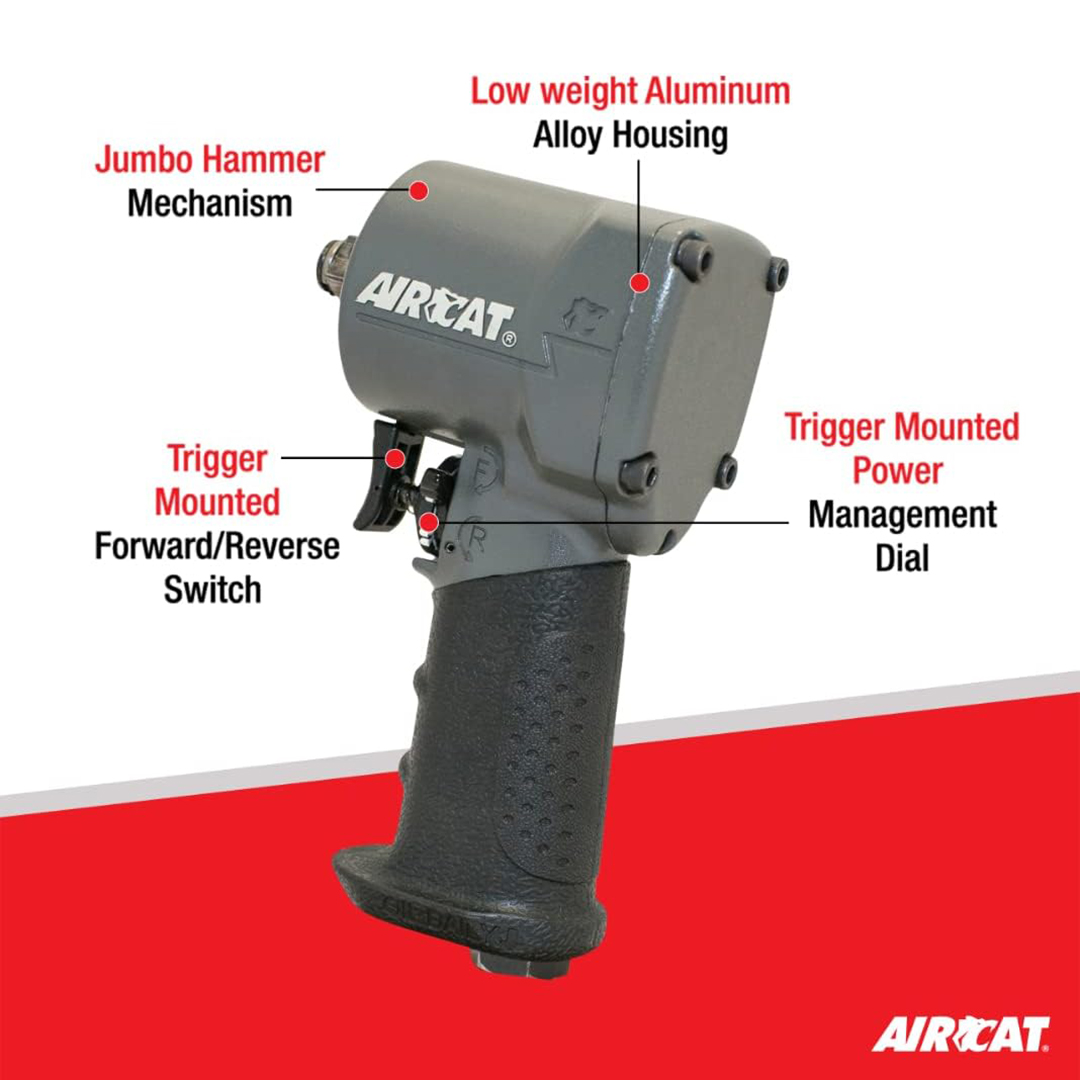

Low weight aluminum alloy housing

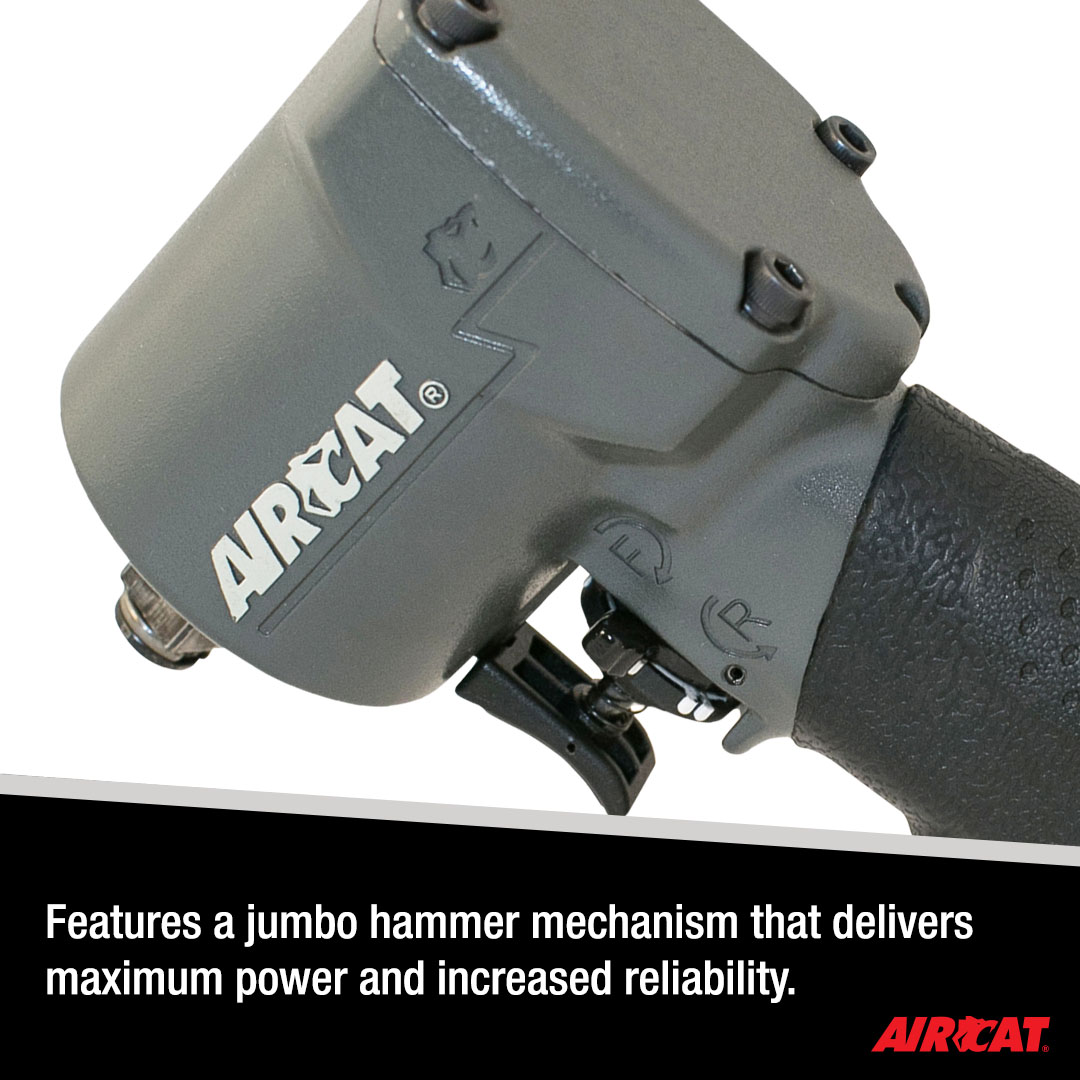

Reliable Jumbo hammer mechanism delivers maximum power while increasing reliability
Patented Silencing Technology reduces the noise level to (89 dBA)
Trigger mounted combined forward/reverse and power management switch provides ultimate control and one-hand operation

Specifications +

Maximum Torque (ft-lbs)	500
Loosening Torque (ft-lbs)	700
Impacts Per Minute (IPM)	1600
Free Speed (RPM)	9000
Square Drive (in.)	3/8-in.
Bolt Capacity (in.)	1/2-in.
Weight (lbs.)	2.8
Length (in.)	3.85-in.
Noise Levels d(B)A	89
Vibration Levels (m/sec2)	9.9
Air Consumption (CFM)	6
Air Inlet (NPT/BSP)	1/4-in.
Rec. Hose Size (in.)	3/8-in.
