AIRCAT 1770-XLK 3/4" Composite Impact Wrench Kit

AIRCAT 3/4″ COMPOSITE IMPACT WRENCH KIT

Model: 1770-XLK

The AIRCAT 1770-XLK 3/4" Composite Impact Wrench Kit delivers up to 1,400 ft-lb of maximum torque and 1,600 ft-lb of loosening torque for heavy duty fleet maintenance and industrial MRO applications. This impact wrench features a refined twin-hammer mechanism, three-position power management, ergonomic grip and trigger, and durable molded-in buffers. Kit includes the 1770-XLK impact, AIRCAT tool bag and 3/4" drive deep-length impact socket set.

Safety Manual Manual / Parts Fact Sheets Request Info Order Parts

Product Details +

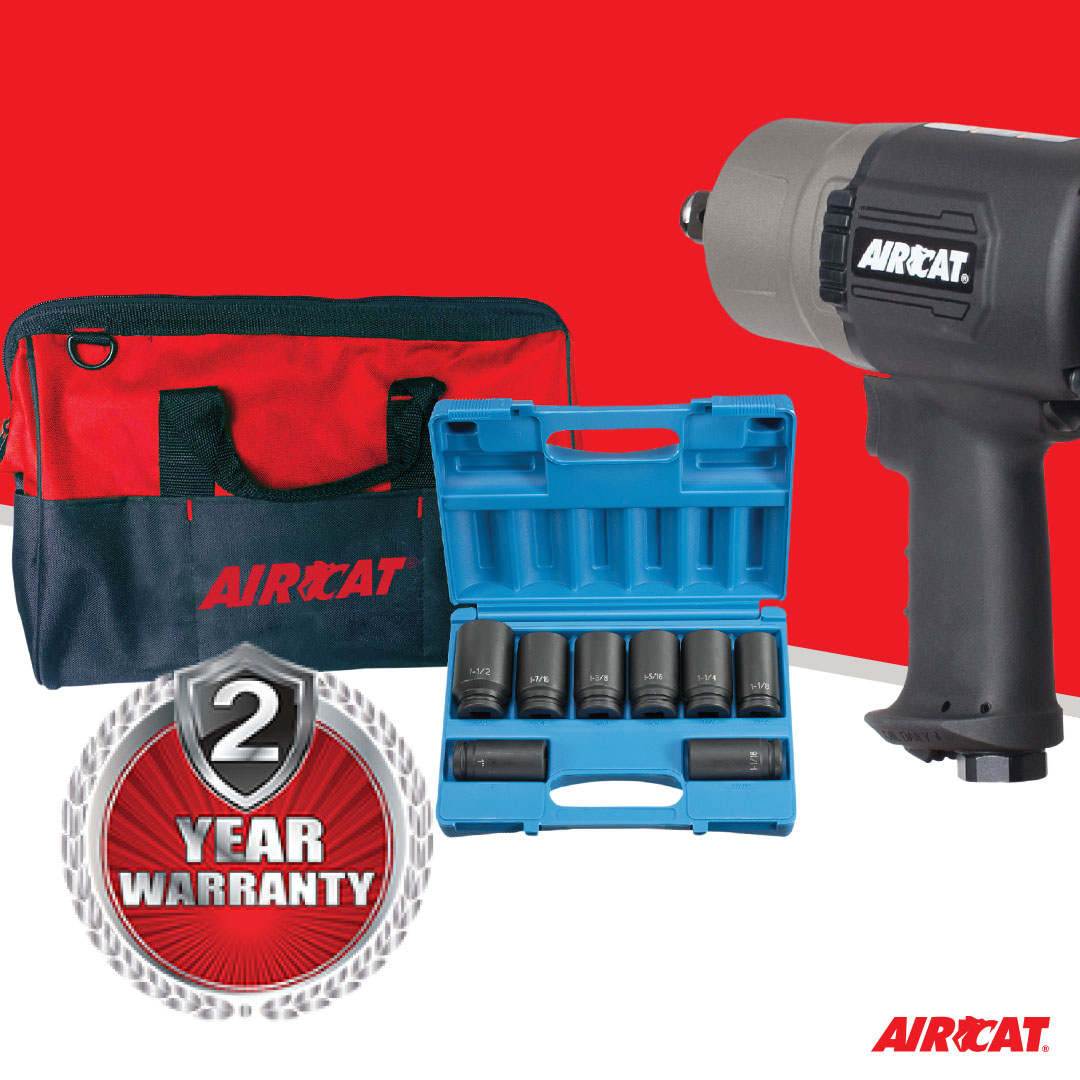

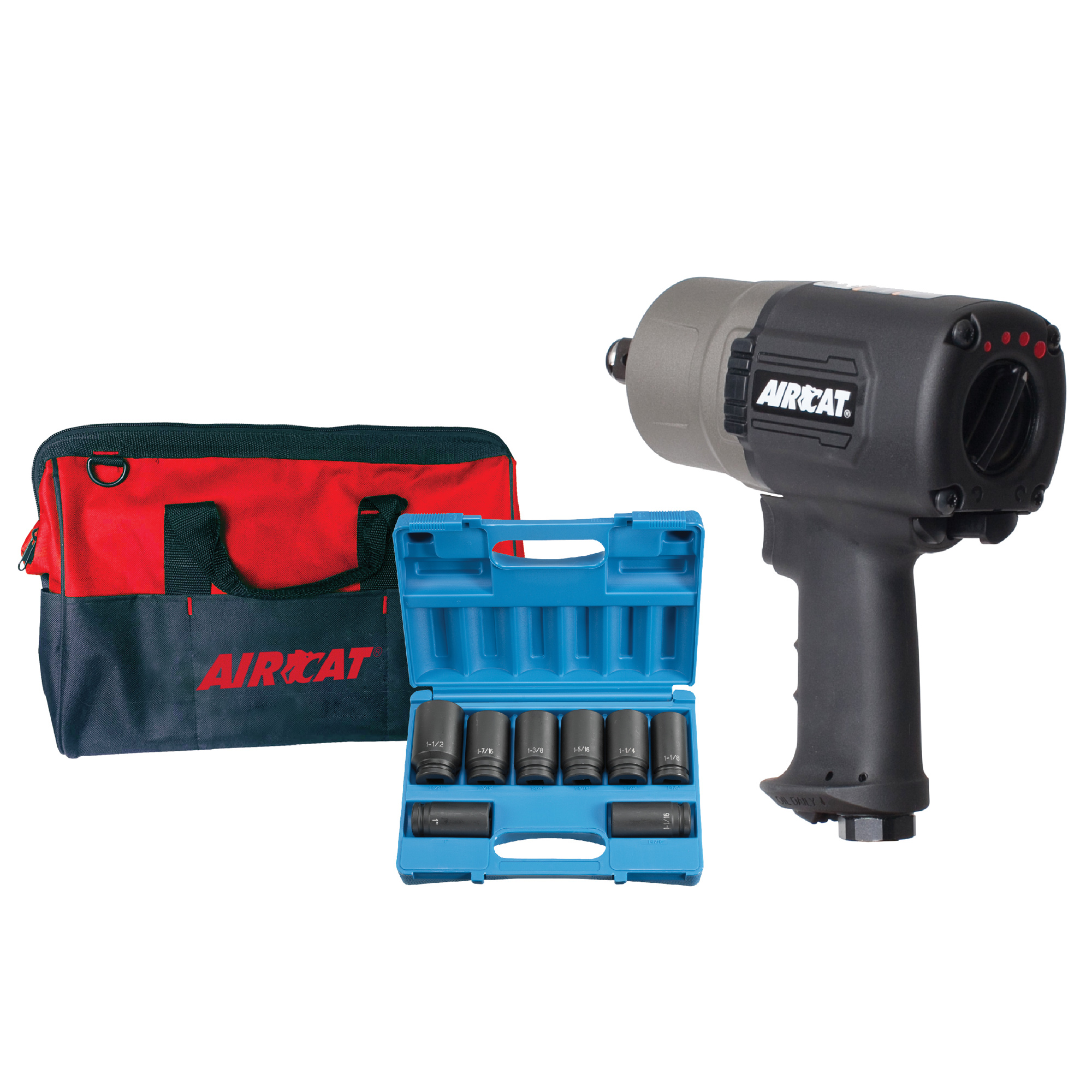

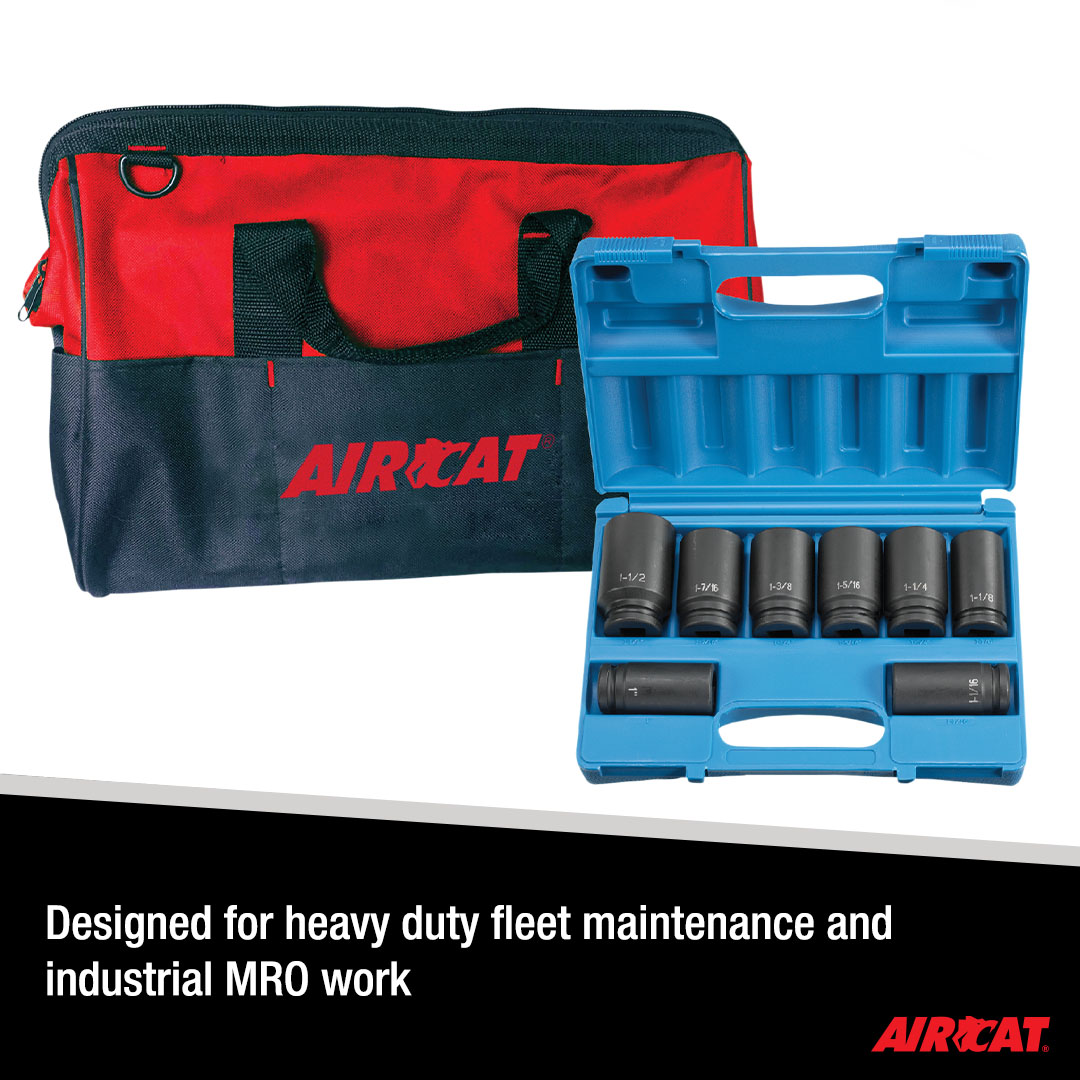

Includes: 1770-XL 3/4″ Composite Impact Wrench, AIRCAT® Tool Bag and Grey Pneumatic 3/4-in. Drive “Deep Length” Impact Socket Set

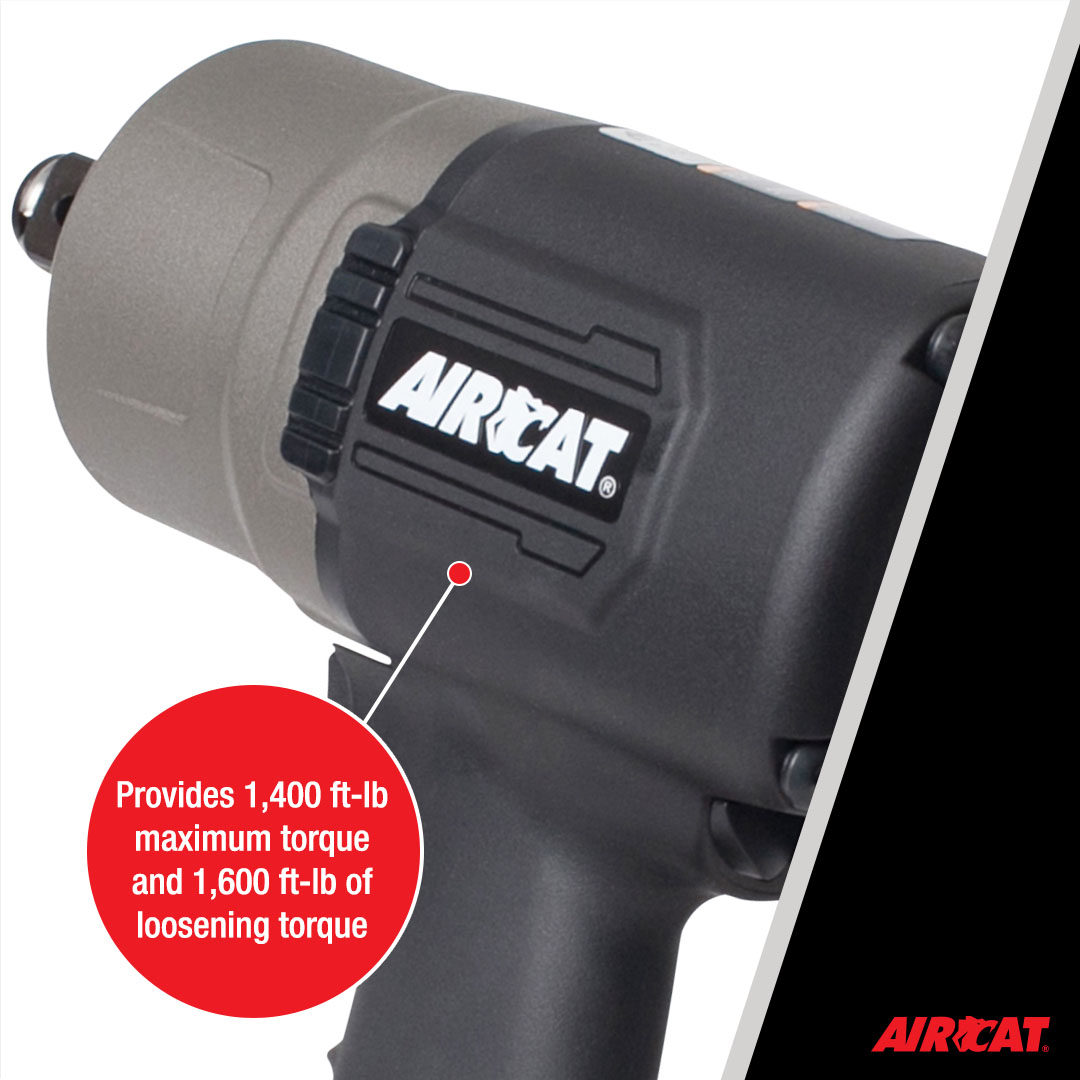

- Socket Sizes: 1″, 1-1/16″, 1-1/8″, 1-1/4″, 1-5/16″, 1-3/8″, 1-7/16″ and 1-1/2″Provides 1,400 ft-lb maximum torque and 1,600 ft-lb of loosening torque

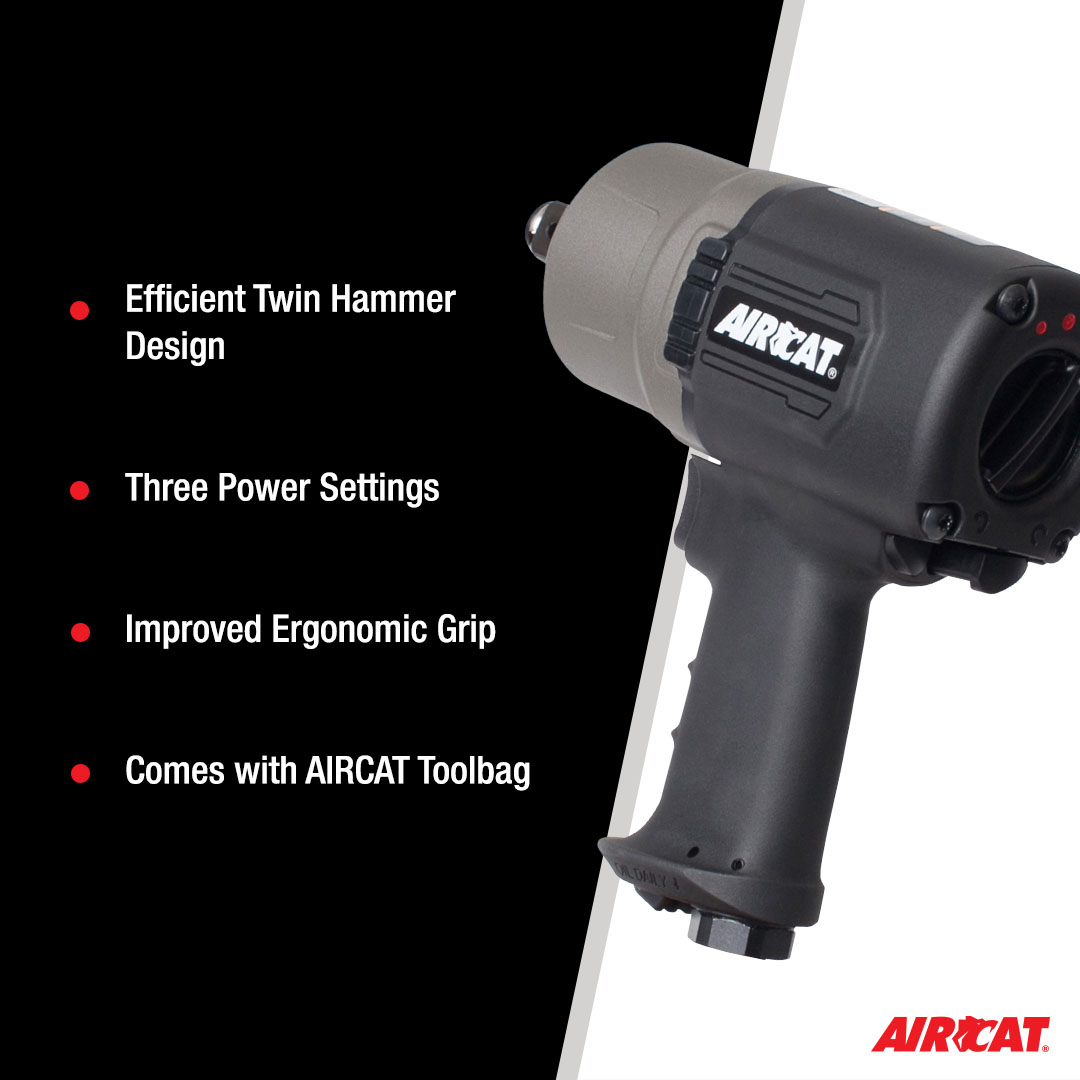

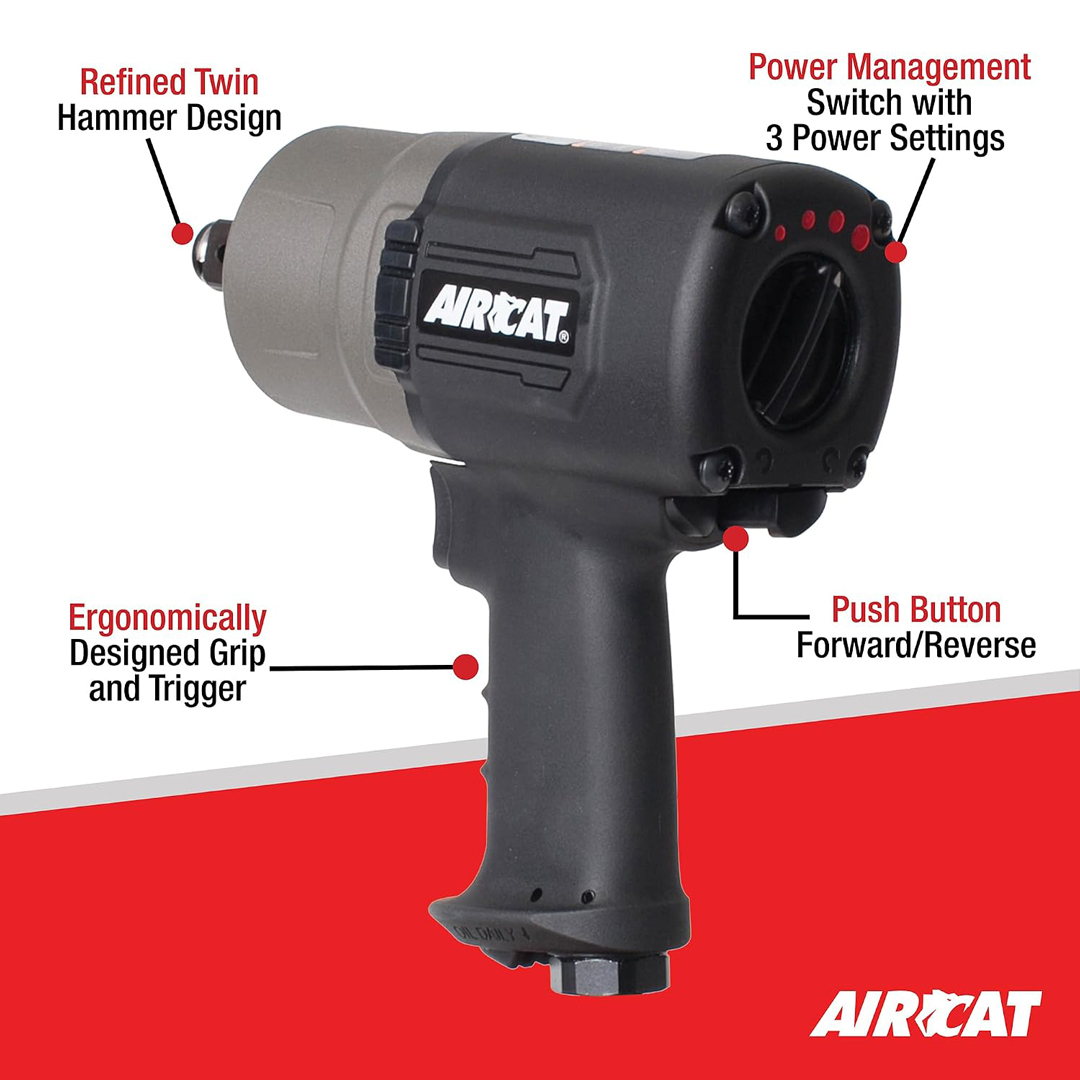

Refined design twin hammer increases blow frequency and efficiency
Power management switch with three power settings
Molded-in buffers protect tool from side impact
Ergonomically designed grip and trigger provide ultimate operating comfort
Designed for heavy duty fleet maintenance and industrial MRO work
Combined through hole and friction ring socket retainer

Specifications +

Maximum Torque (ft-lbs)	1400
Loosening Torque (ft-lbs)	1600
Impacts Per Minute (IPM)	1300
Free Speed (RPM)	6500
Square Drive (in.)	3/4-in.
Bolt Capacity (in.)	1-in.
Weight (lbs.)	7.4
Length (in.)	8.25-in.
Noise Levels d(B)A	91.3
Vibration Levels (m/sec2)	14.6
Air Consumption (CFM)	8
Air Inlet (NPT/BSP)	3/8-in.
Rec. Hose Size (in.)	1/2-in.
