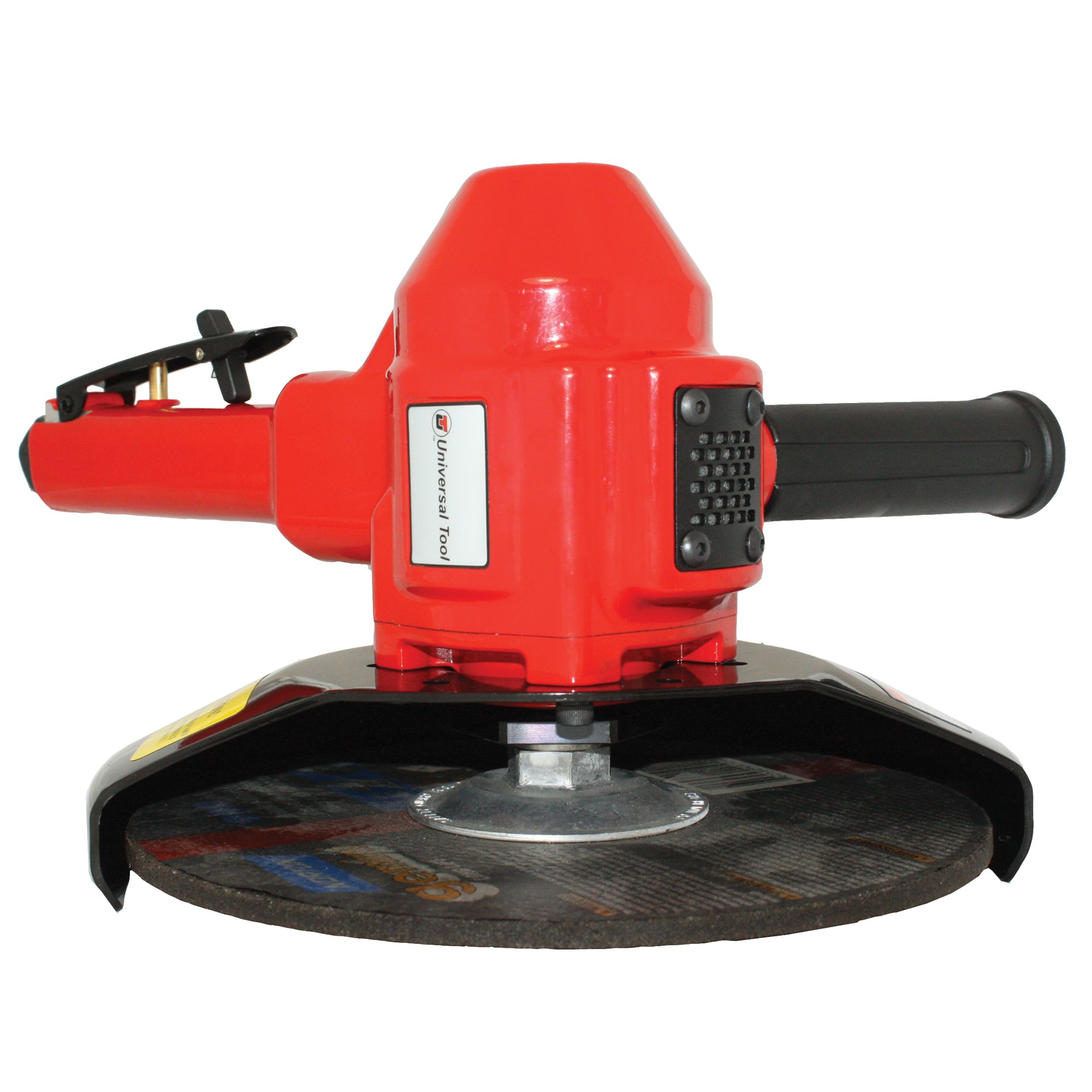

9″ Vertical Grinder 4HP

Model: UT8768-4V-60-9

Universal Tool UT8768-4V-60-9 9" Vertical Grinder features a 4.0 HP governed motor, high-grade aluminum alloy housing, a safety lock-off throttle and side assist handle, and wheel guards and flanges that follow ANSI standards. Built for heavy-duty continuous grinding.

Safety Manual Manual / Parts Fact Sheets Request Info Order Parts

Product Details +

Governed Motors for constant speed
Housings made from high grade aluminum alloy for maximum strength
Safety lock-off throttle and side assist handle for operating comfort
Internal silencing reduces noise level
Wheel guards and flanges follow ANSI standards
Best for: Heavy duty continuous grinding

Specifications +

Motor (HP)	4
Motor (kw)	2.93
Max Wheel Dia. (in.)	9" Type 27
Guard Type	Type 27
Speed (RPM)	6000
Exhaust	Side
Spindle Size (in)	5/8" - 11
weight-lbs	12.5
Weight (kg)	5
Length (in)	13
Length (mm)	330
Air Inlet (NPT / BSP)	1/2-in.
Rec. Hose Size (in)	1/2-in.
Air Consumption (CFM)	95
Average Air Consumption (CFM)	24
Rec. Air Pressure	90 psi-6.2 bar
