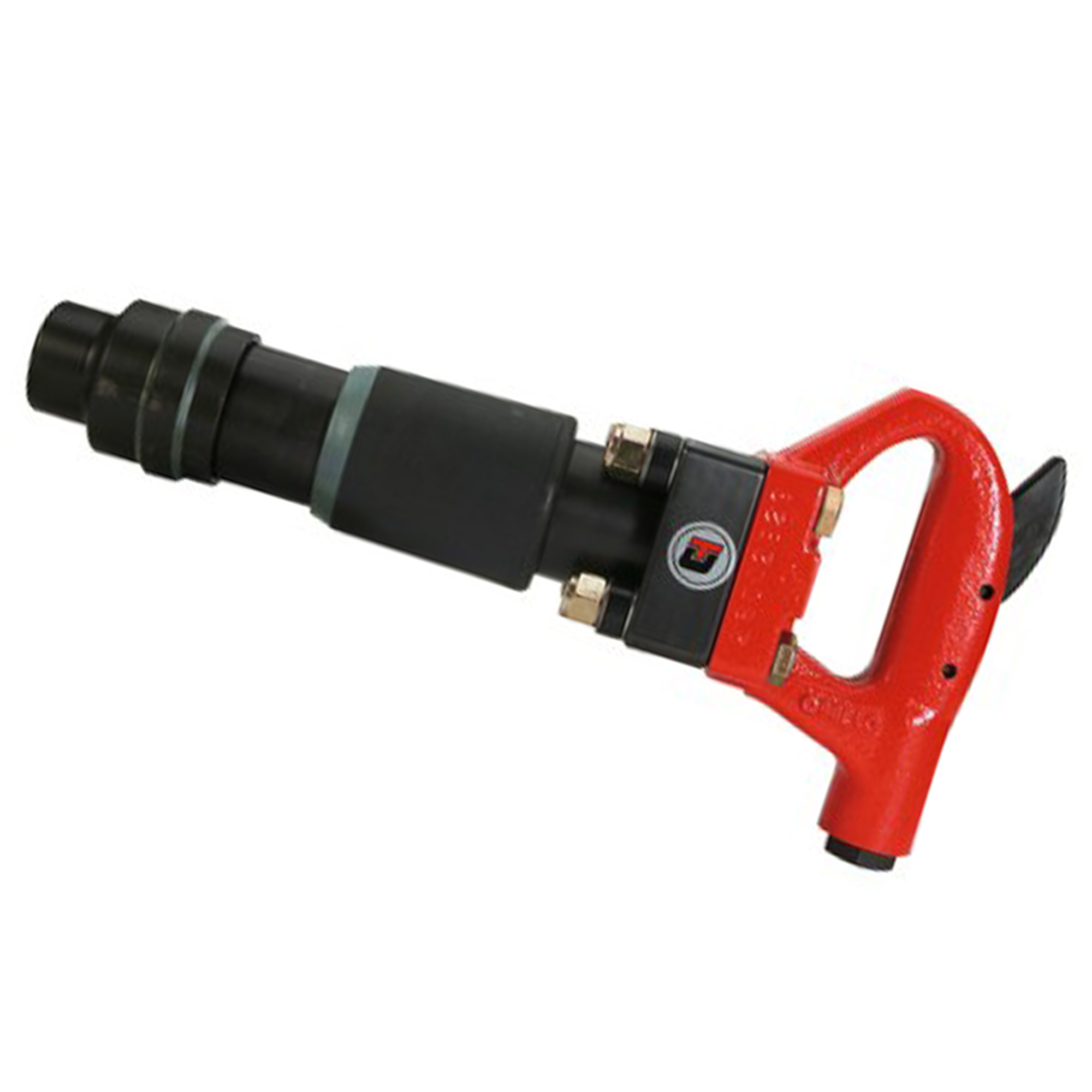

The Universal Tool UT8653H 3″ Stroke Chipping Hammer features a crisp plate valve for hard-hitting control, heat-treated precision cylinder and piston, and rugged four-bolt construction for heavy-duty use. Ergonomically designed for operator comfort, ideal for foundry plant maintenance and general contractor work.
SHARE
| Retainer | Oval Collar |
|---|---|
| Housing Material | Steel |
| Bushing (in.) | .580 hex |
| Blow Per Minute | 2100 |
| Bore (in.) | 1/8-in. |
| Stroke (in.) | 3.75 |
| Weight (lbs) | 18.5 |
| Weight (kg.) | 8.4 |
| Length (in.) | 15.25 |
| Length (mm) | 387 |
| Air Inlet (NPT/BSP) | 3/8-in. |
| Rec. Hose (I.D. in.) | 1/2-in. |
| Air Consumption (CFM) | 30 |
| Avg. Air Cons (CFM) | 7.5 |
| Rec. Air Pressure | 90 psi-6.2 bar |
