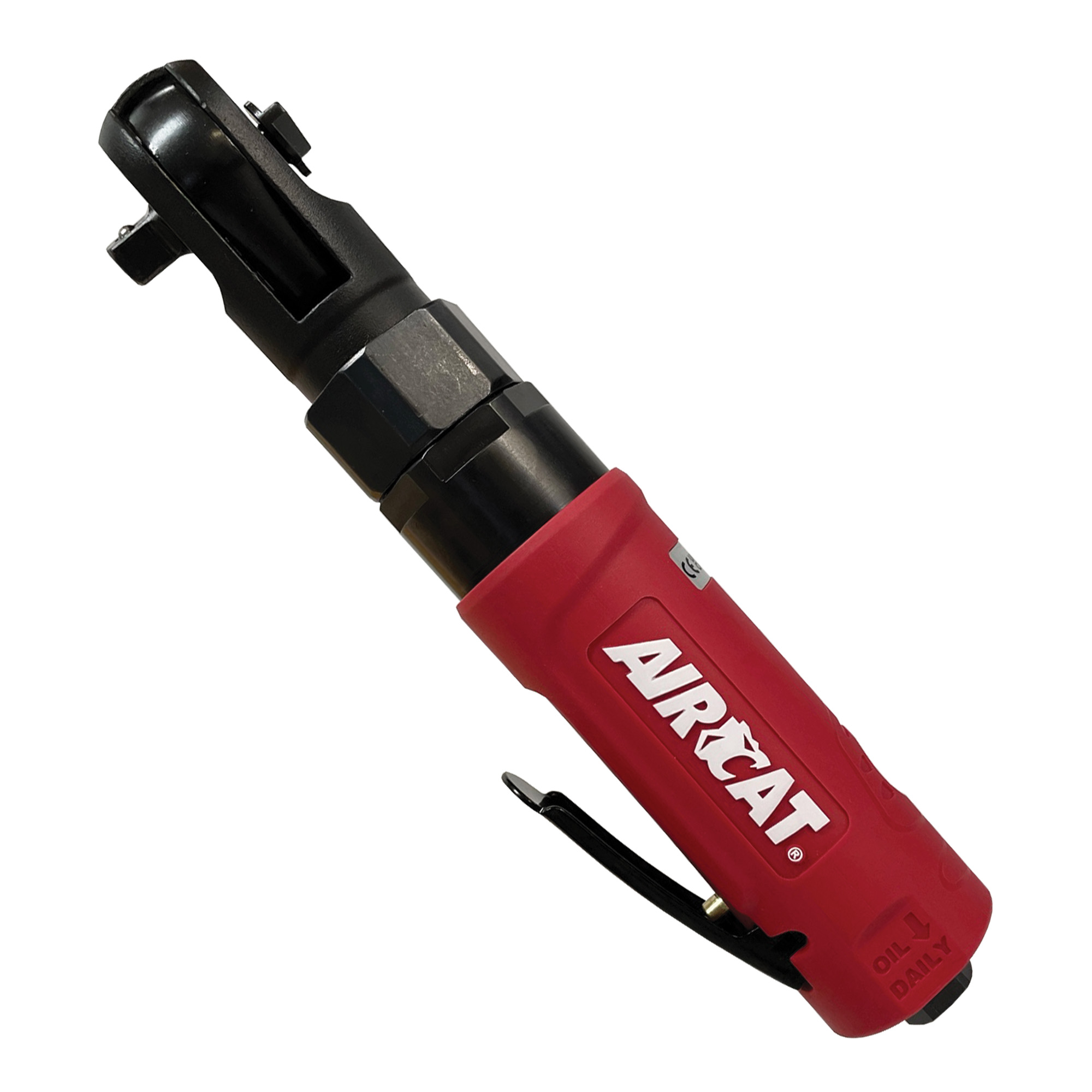

AIRCAT 3/8″ Impacting Ratchet Wrench
Model: 812-RW
AIRCAT 812-RW 3/8-inch reaction-less ratchets feature an internal impact mechanism that eliminates torque reaction and risk of finger trapping. Each air tool delivers 80 ft-lbs of maximum torque and 350 RPM Free Speed.
Product Details
- 80 ft-lb Maximum torque
- 350 RPM run-down speed with built-in regulator for control
- Internal impact mechanism eliminates torque reaction and risk of finger trapping
- Very quiet compared to conventional air ratchets – only (79 dBA)
- Composite handle grip increases operating comfort
- Needle bearing construction increases reliability
- Push and lock forward/reverse switch
Specifications
| Square Drive (in.) | 3/8-in. |
| Air Consumption (CFM) | 4 |
| Bolt Capacity (in) | 1/2-in. |
| Air Inlet (NPT/BSP) | 1/4-in. |
| Rec. Hose Size (in.) | 3/8-in. |
| Weight (lb.) | 2.9 |
| Length (in.) | 10 |
| Free Speed (RPM) | 350 |
| Working Torque (ft-lb) | 12-55 ft-lbs |
| Max. Torque (ft-lb) | 80 |
| Noise Levels (dBA) | 88 |
| Vibration Levels (m/sec2) | 5.7 |
