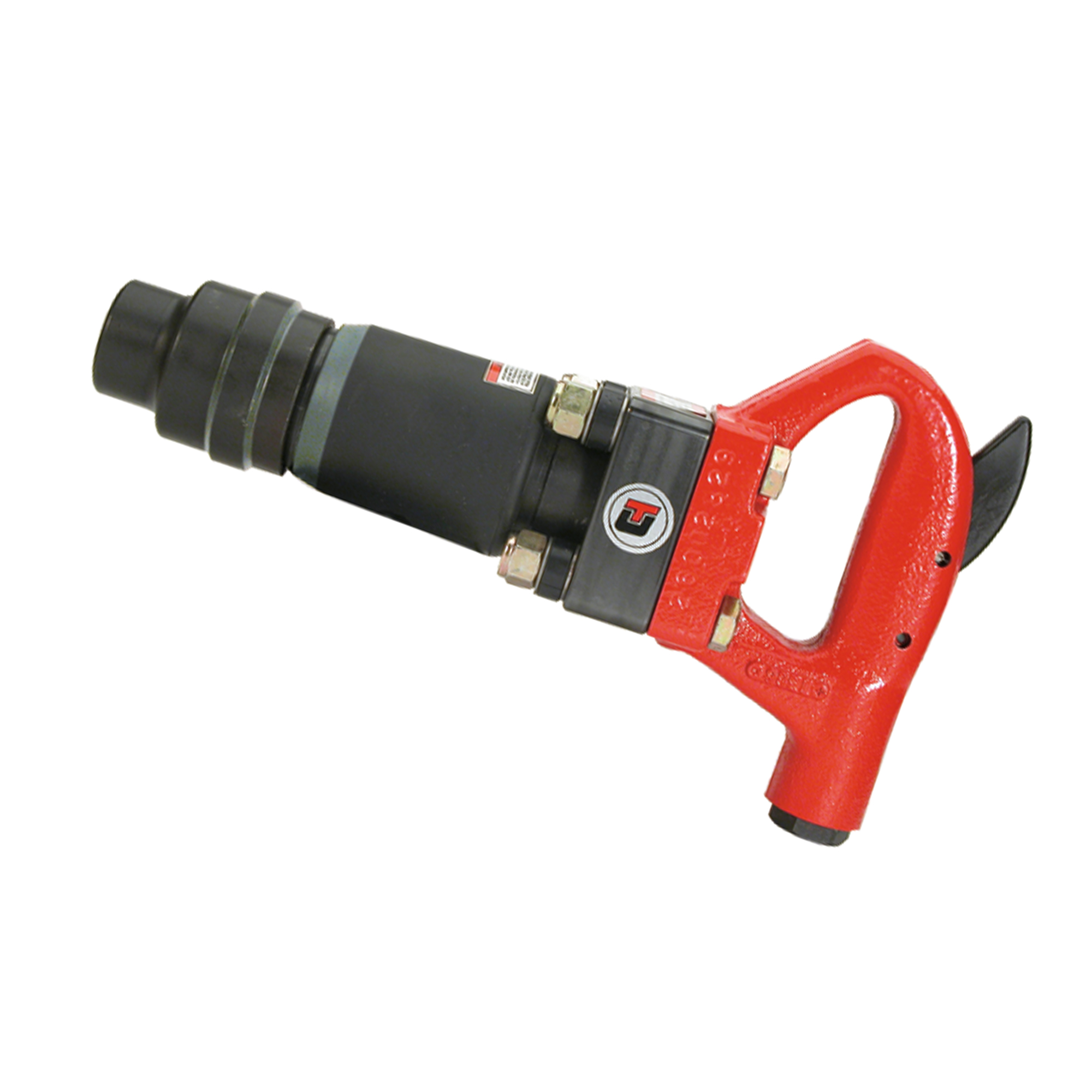

The Universal Tool UT8651R 1″ Stroke Chipping Hammer features a crisp plate valve for hard-hitting control, heat-treated precision cylinder and piston, and rugged four-bolt construction for heavy-duty use. Ergonomically designed for operator comfort, ideal for foundry plant maintenance and general contractor work.
SHARE
| Retainer | Oval Collar |
|---|---|
| Housing Material | Steel |
| Bushing (in.) | .680 round |
| Blow Per Minute | 2450 |
| Bore (in.) | 1/8-in. |
| Stroke (in.) | 2.5 |
| Weight (lbs) | 16 |
| Weight (kg.) | 7.3 |
| Length (in.) | 12 |
| Length (mm) | 305 |
| Air Inlet (NPT/BSP) | 3/8-in. |
| Rec. Hose (I.D. in.) | 1/2-in. |
| Air Consumption (CFM) | 24 |
| Avg. Air Cons (CFM) | 6 |
| Rec. Air Pressure | 90 psi-6.2 bar |
The Universal Tool UT8651R 1″ Stroke Chipping Hammer features a crisp plate valve for hard-hitting control, heat-treated precision cylinder and piston, and rugged four-bolt construction for heavy-duty use. Ergonomically designed for operator comfort, ideal for foundry plant maintenance and general contractor work.
| Retainer | Oval Collar |
|---|---|
| Housing Material | Steel |
| Bushing (in.) | .680 round |
| Blow Per Minute | 2450 |
| Bore (in.) | 1/8-in. |
| Stroke (in.) | 2.5 |
| Weight (lbs) | 16 |
| Weight (kg.) | 7.3 |
| Length (in.) | 12 |
| Length (mm) | 305 |
| Air Inlet (NPT/BSP) | 3/8-in. |
| Rec. Hose (I.D. in.) | 1/2-in. |
| Air Consumption (CFM) | 24 |
| Avg. Air Cons (CFM) | 6 |
| Rec. Air Pressure | 90 psi-6.2 bar |
