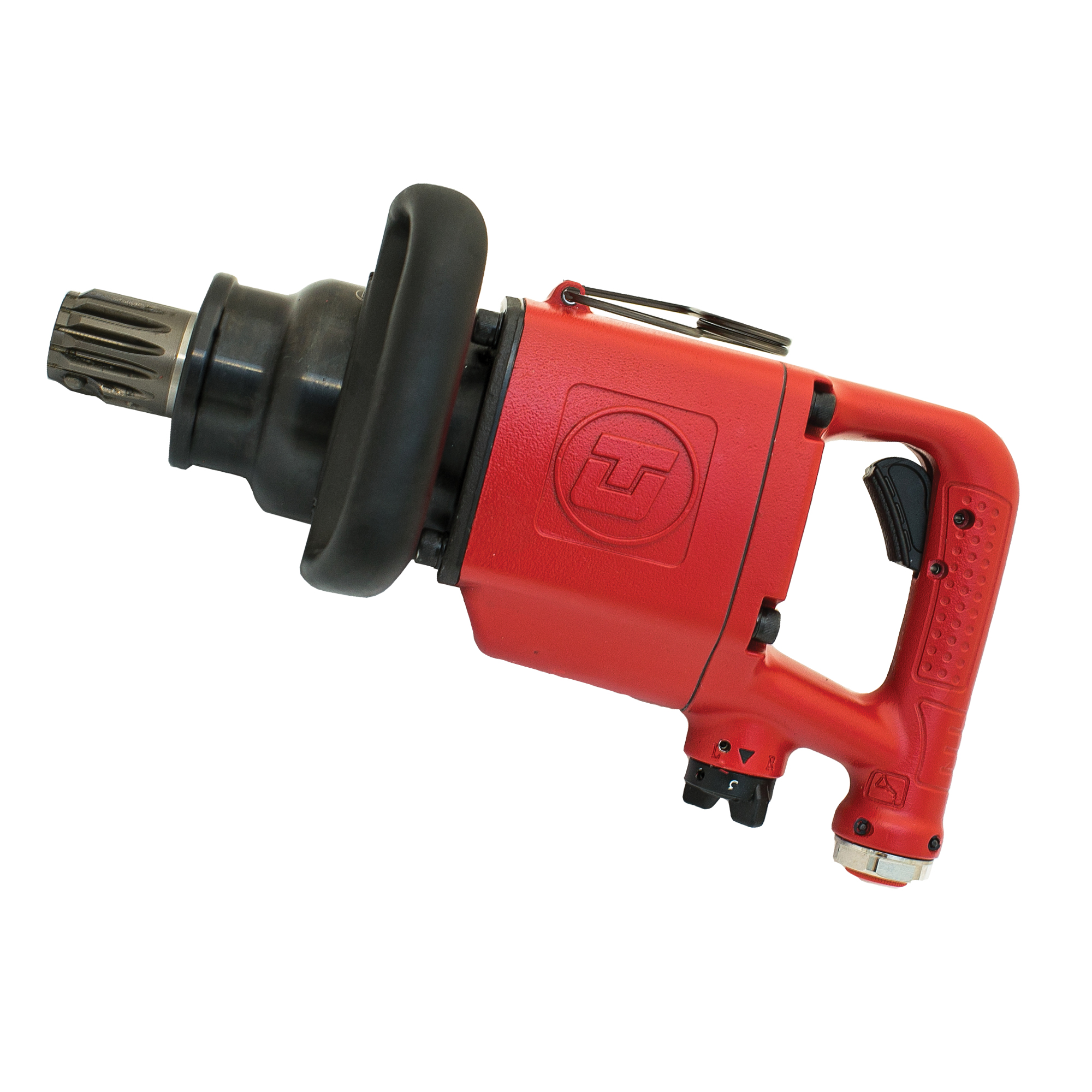

1″ Impact Wrench

Model: UT8641S

Universal Tool UT8641S 1" Impact Wrench: 2,800 ft-lb maximum torque, two-jaw clutch for high output and lower air use, suspension/safety bail, through hole retainer and includes (3pc) retaining pin & ring. Designed for demanding applications.

Safety Manual Manual / Parts Fact Sheets Request Info Order Parts

Product Details +

2,800 ft-lb maximum torque
The high energy two jaw clutch provides unmatched torque output and increases the life of the hammers beyond other impact mechanisms
The two jaw clutch does not waste energy reducing Air Consumption (CFM)
The heavy duty built-in suspension/safety bail allows safe suspension of the tool when used overhead or at high levels
Button style retainer
The machined steel hammer case & rugged construction ensures reliability in the toughest conditions.
The unique trigger with a rubber inlay increases operating comfort

Specifications +

Square Drive (in.)	1" / #5
Working Torque (ft-lb.)	500-1650
Working Torque (nm)	678-2237
Max Torque (ft-lb)	2100
Maximum Torque(nm)	3796
Speed (RPM)	4300
Exhaust	Top
Anvil	# 5 Spline
Socket Retainer	Button
Weight (lb.)	23.3
Weight (kg)	10.6
Length (in)	14.3
Length (mm)	363
Air Pressure (NPT/BSP)	1/2-in.
Hose Size	3/4-in.
Air Consumption (CFM)	25.2
Average Air Consumption (CFM)	6.3
