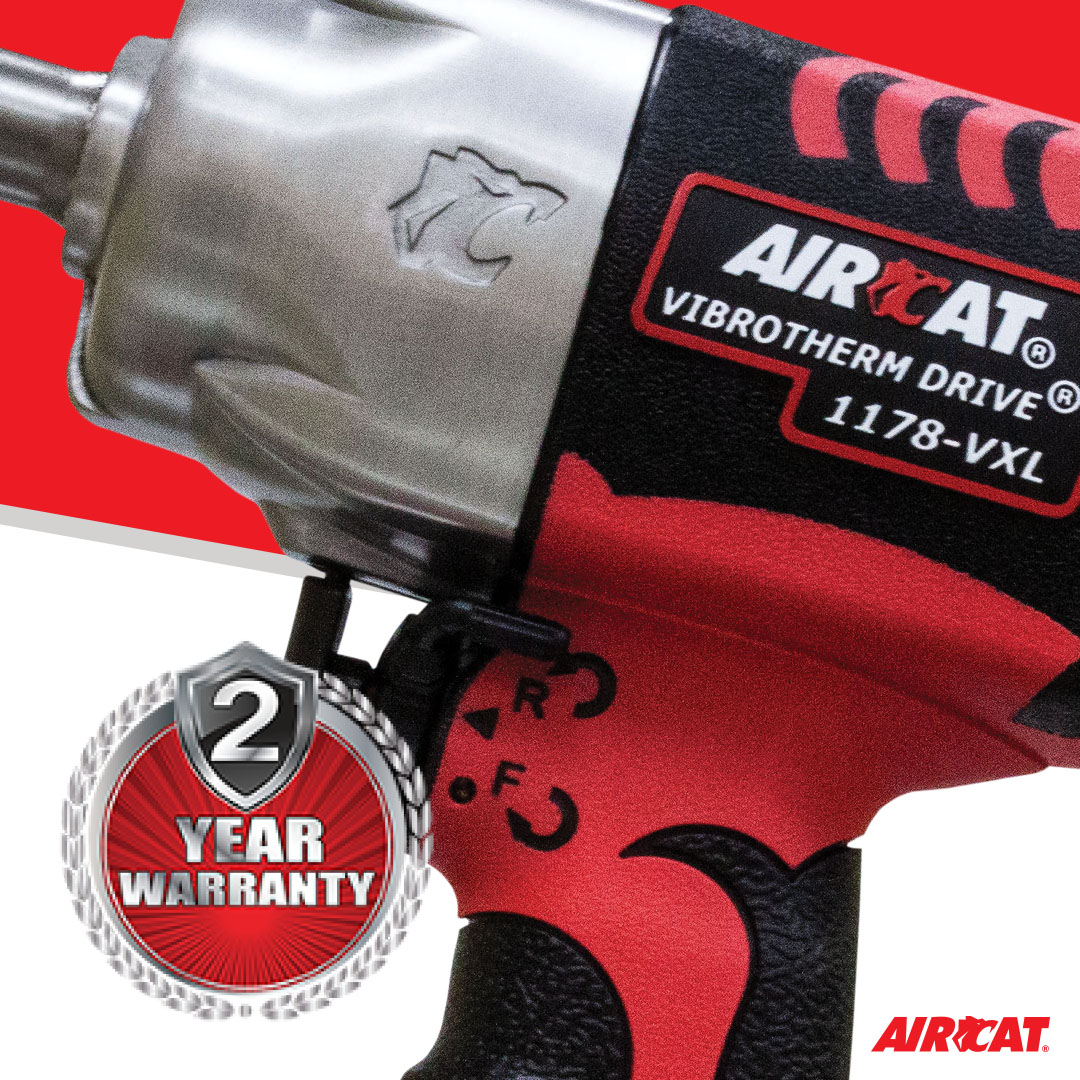

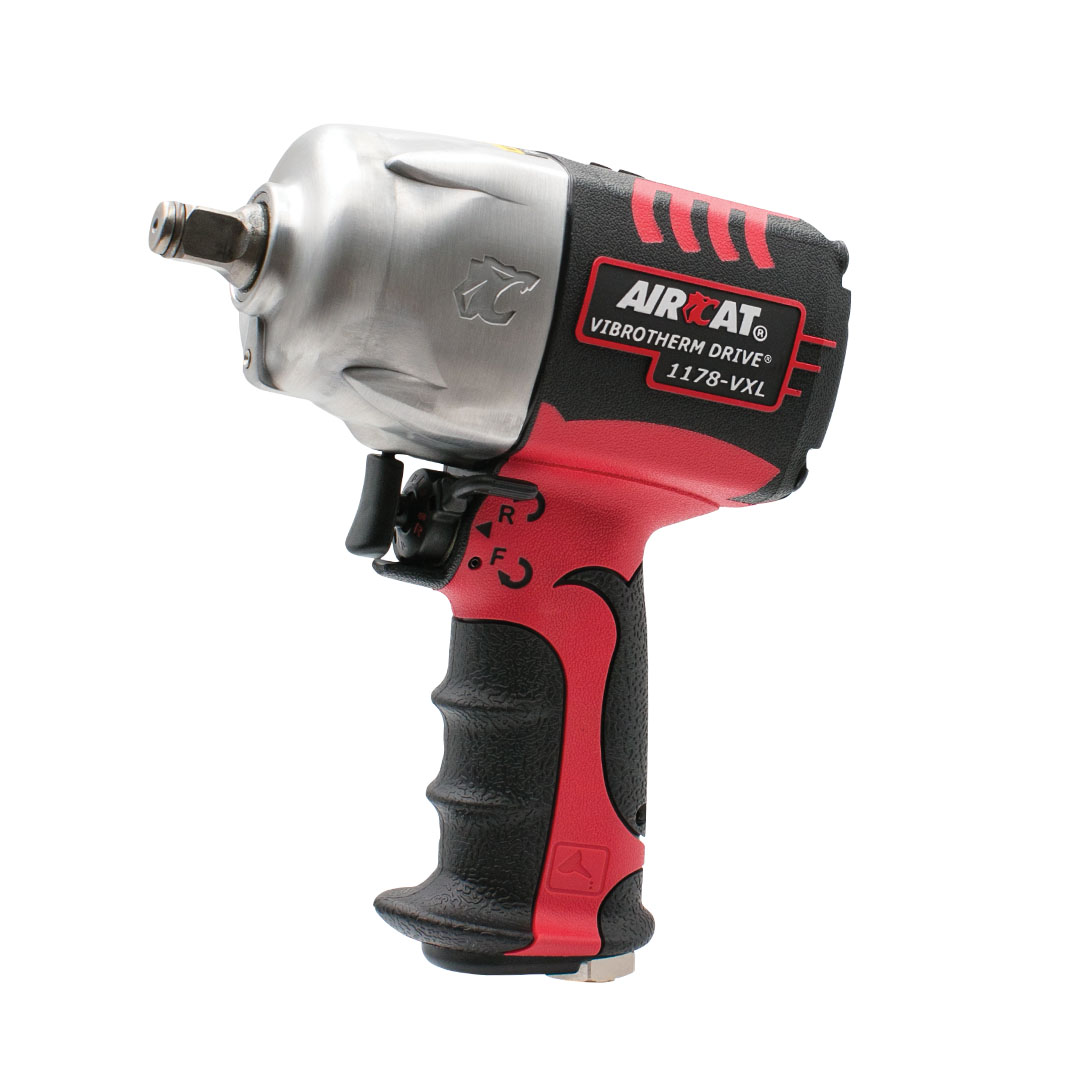

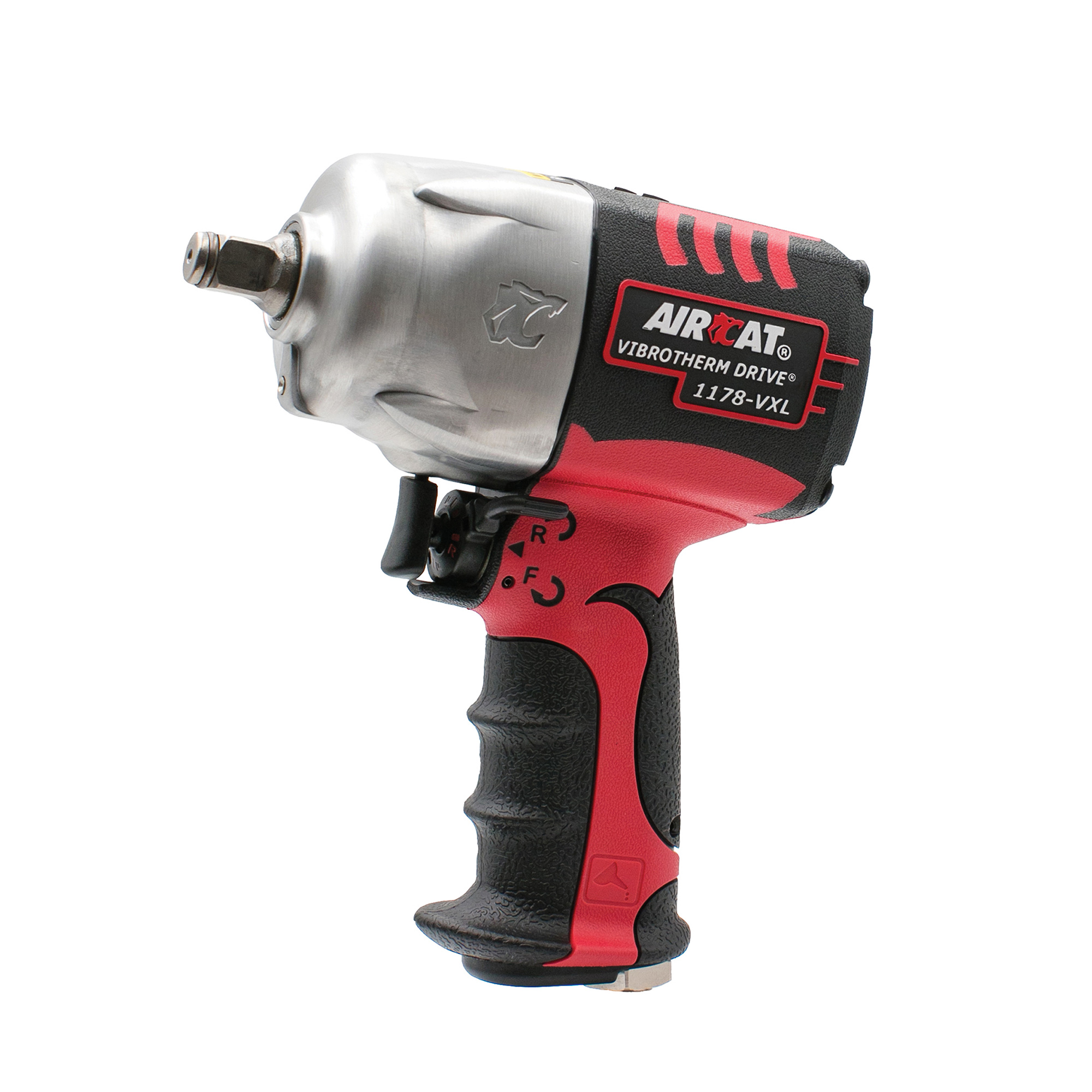

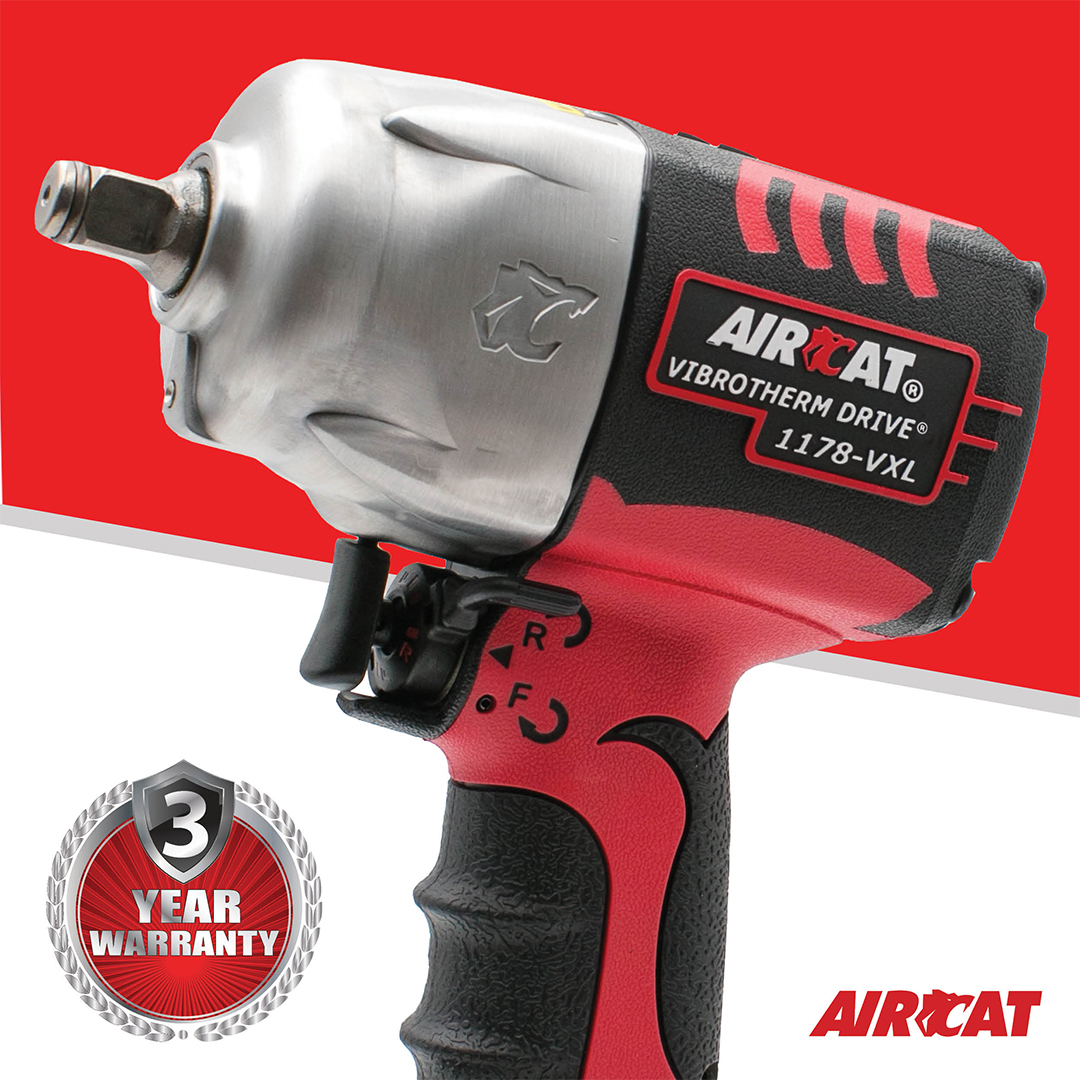

AIRCAT 1/2″ VIBROTHERM DRIVE® COMPOSITE IMPACT WRENCH

Model: 1178-VXL

The AIRCAT 1178-VXL 1/2" VIBROTHERM DRIVE® Composite Impact Wrench delivers 950 ft-lbs of maximum torque and 1,300 ft-lbs of loosening torque for demanding professional applications. Patented VIBROTHERM DRIVE® technology reduces vibration levels by up to 30-40%, extends tool life by up to 50%, and provides the quiet, comfortable performance AIRCAT is known for.

Safety Manual Manual / Parts Fact Sheets Request Info Order Parts

Product Details +

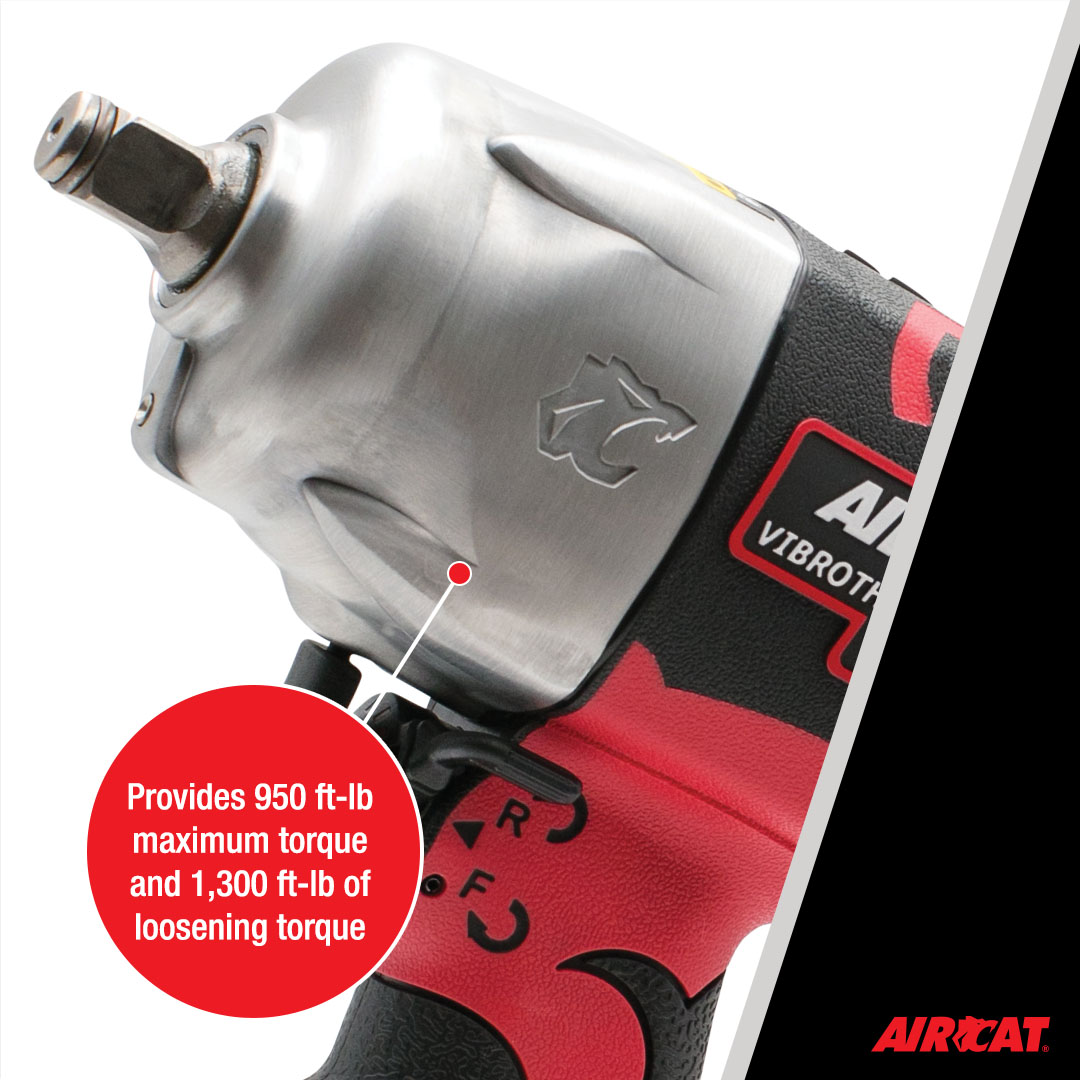

Provides 950 ft-lb maximum torque and 1,300 ft-lb of loosening torque

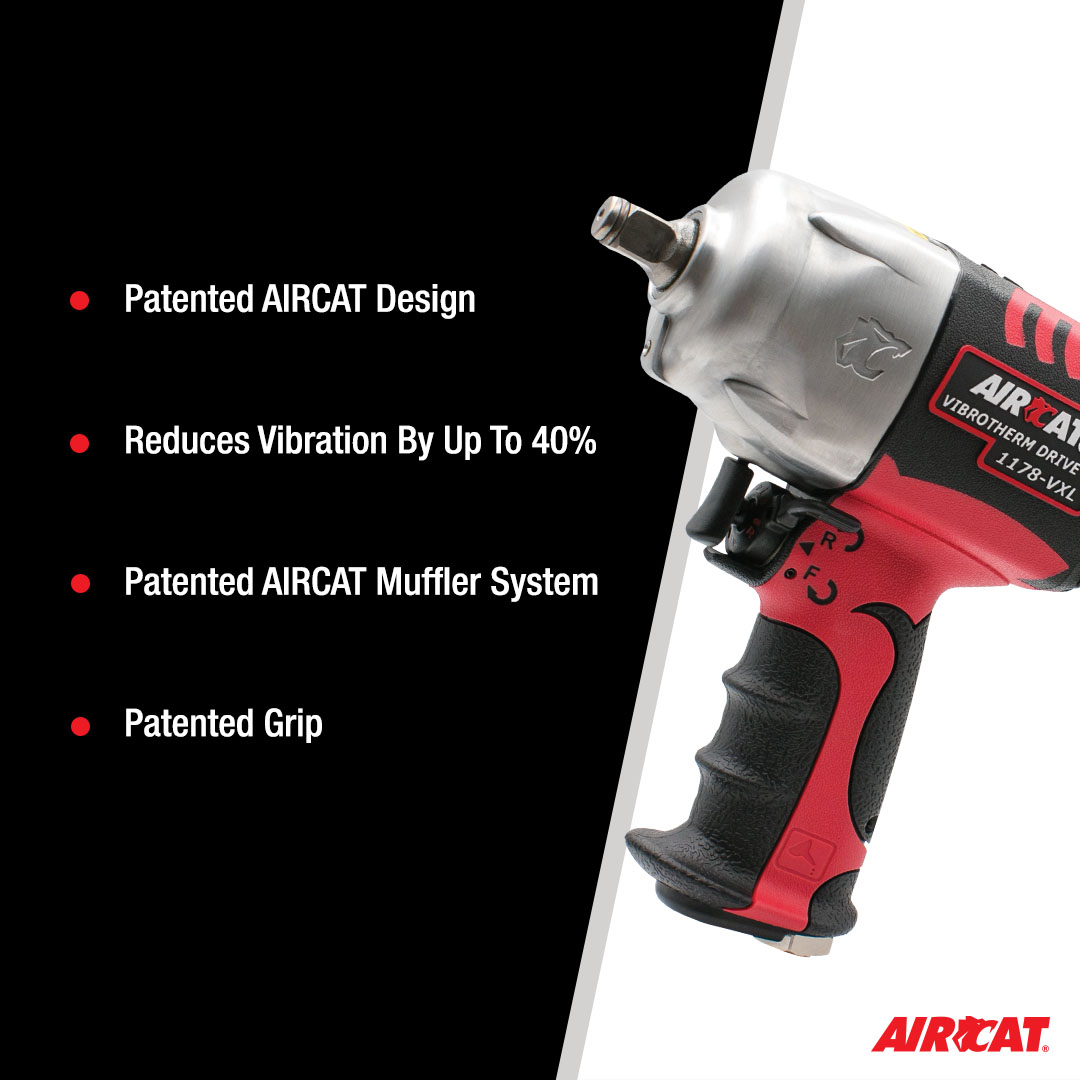

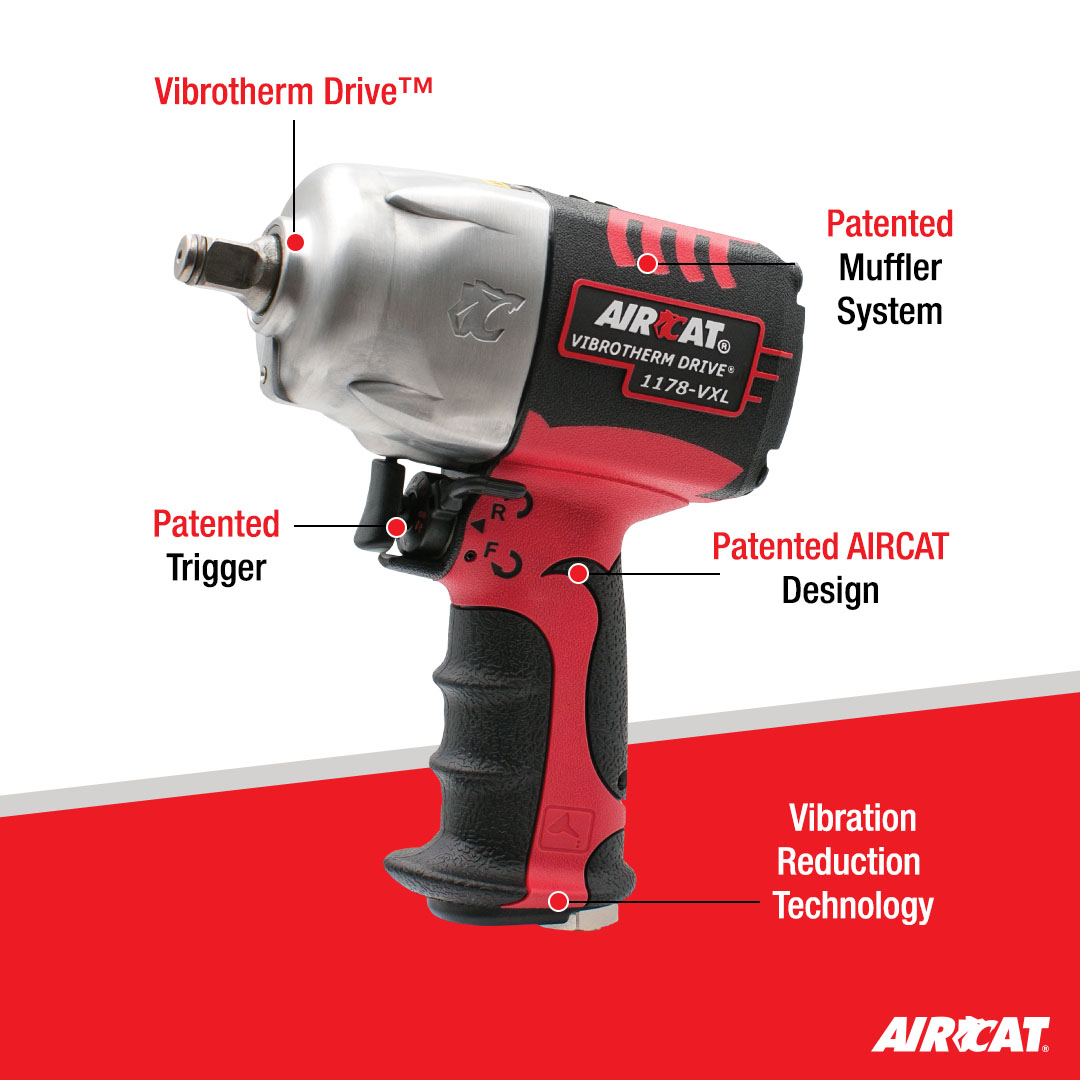

VIBROTHERM DRIVE^®impact wrenches incorporate the new patented AIRCAT design impact wrench mechanism

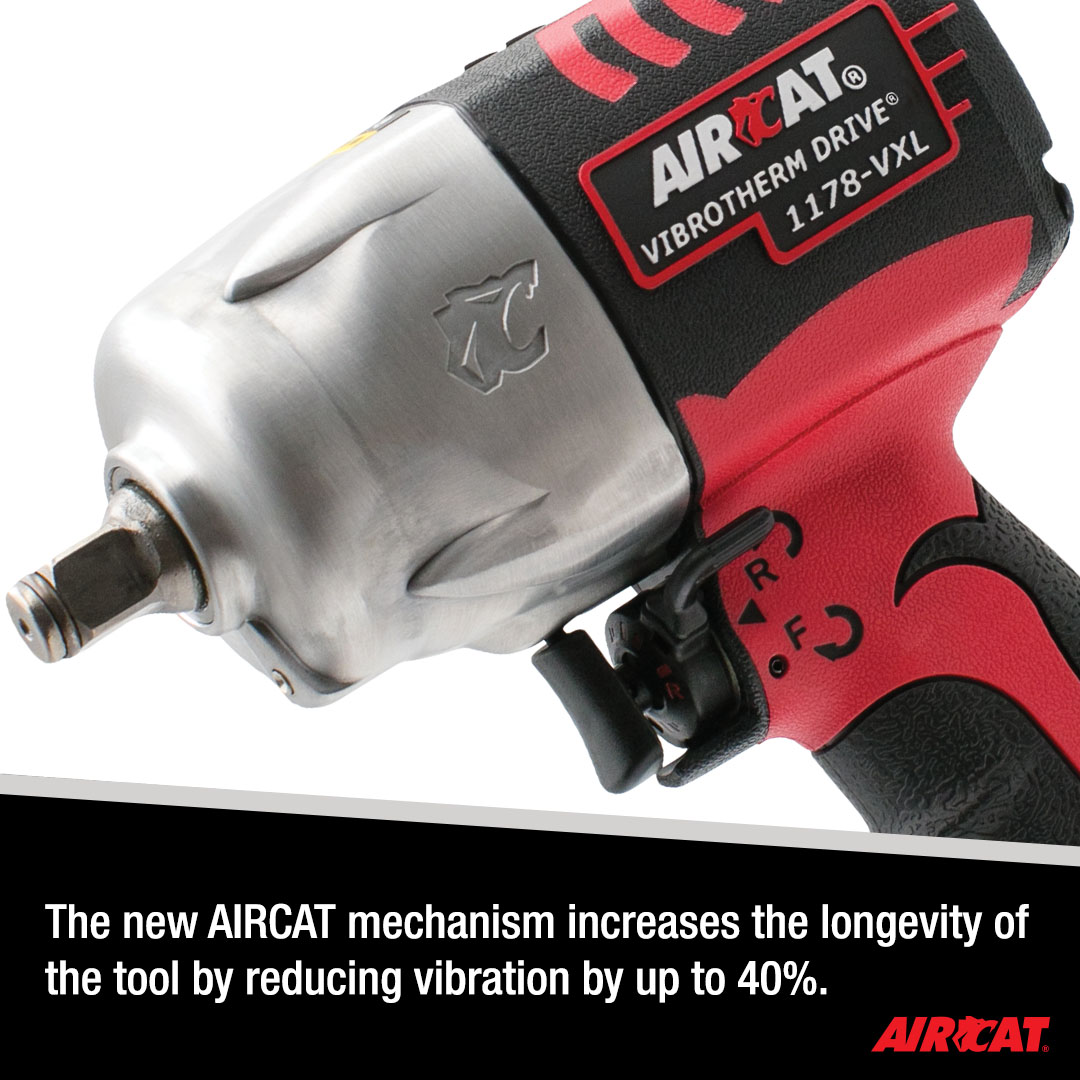

The new mechanism reduces vibration levels by 30%-40% and increases the life of the mechanism by 50%
The latest patented AIRCAT muffler system provides the AIRCAT’s unmatched low noise levels (86 dBA)
The patented grip design provides the customary AIRCAT^® operator comfort

Specifications +

Maximum Torque (ft-lbs)	950
Loosening Torque (ft-lbs)	1300
Impacts Per Minute (IPM)	1400
Free Speed (RPM)	7500
Square Drive (in.)	1/2-in.
Bolt Capacity (in.)	9/16-in.
Weight (lbs.)	4.5
Length (in.)	6.4-in.
Noise Levels d(B)A	86
Vibration Levels (m/sec2)	7.7
Air Consumption (CFM)	8
Air Inlet (NPT/BSP)	1/4-in.
Rec. Hose Size (in.)	3/8-in.
