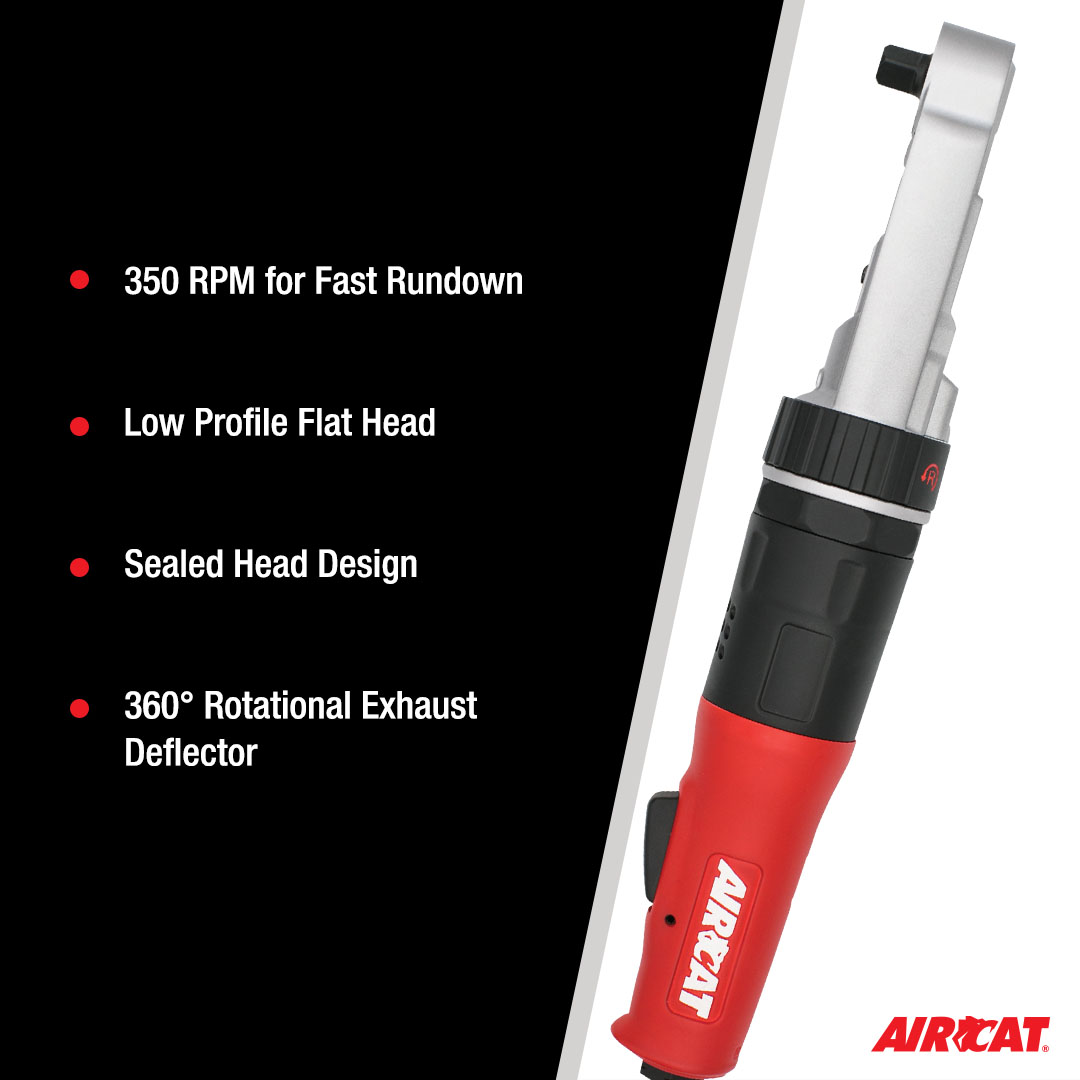

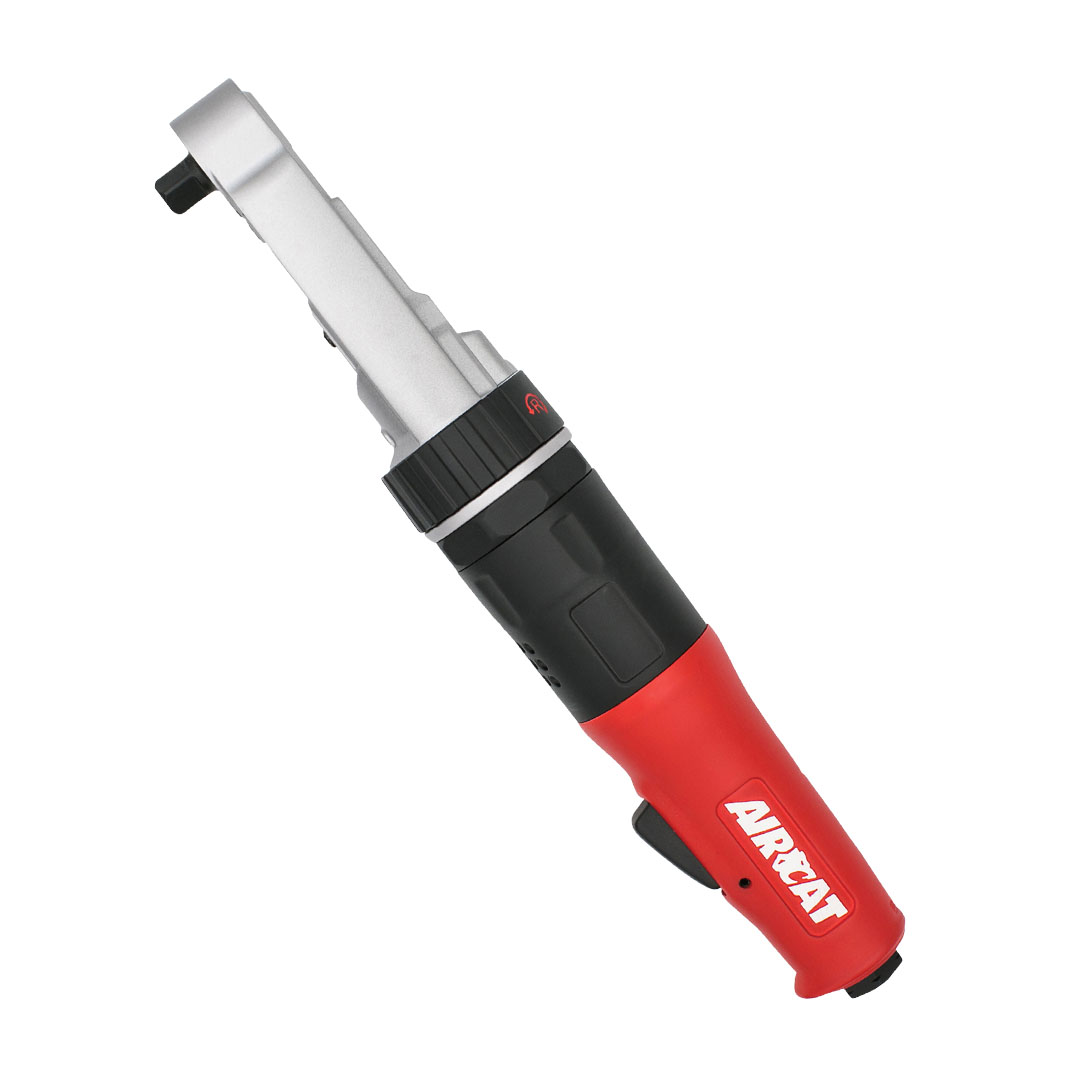

AIRCAT 809-SH is a 3/8-inch drive, sealed flat head ratchet that produces 60 ft-lbs of torque at 350 RPM. The low profile head allows for greater access to confined areas. The sealed head helps to increase tool reliability and durability.
SHARE
| Square Drive (in.) | 3/8-in. |
|---|---|
| Air Consumption (CFM) | 4 |
| Bolt Capacity (in) | 1/2-in. |
| Air Inlet (NPT/BSP) | 1/4-in. |
| Rec. Hose Size (in.) | 3/8-in. |
| Weight (lb.) | 3.3 |
| Length (in.) | 12.45 |
| Free Speed (RPM) | 350 |
| Working Torque (ft-lb) | 9 – 42 ft-lbs |
| Max. Torque (ft-lb) | 60 |
| Noise Levels (dBA) | 89.3 |
| Vibration Levels (m/sec2) | 3.2 |
AIRCAT 809-SH is a 3/8-inch drive, sealed flat head ratchet that produces 60 ft-lbs of torque at 350 RPM. The low profile head allows for greater access to confined areas. The sealed head helps to increase tool reliability and durability.
| Square Drive (in.) | 3/8-in. |
|---|---|
| Air Consumption (CFM) | 4 |
| Bolt Capacity (in) | 1/2-in. |
| Air Inlet (NPT/BSP) | 1/4-in. |
| Rec. Hose Size (in.) | 3/8-in. |
| Weight (lb.) | 3.3 |
| Length (in.) | 12.45 |
| Free Speed (RPM) | 350 |
| Working Torque (ft-lb) | 9 – 42 ft-lbs |
| Max. Torque (ft-lb) | 60 |
| Noise Levels (dBA) | 89.3 |
| Vibration Levels (m/sec2) | 3.2 |
