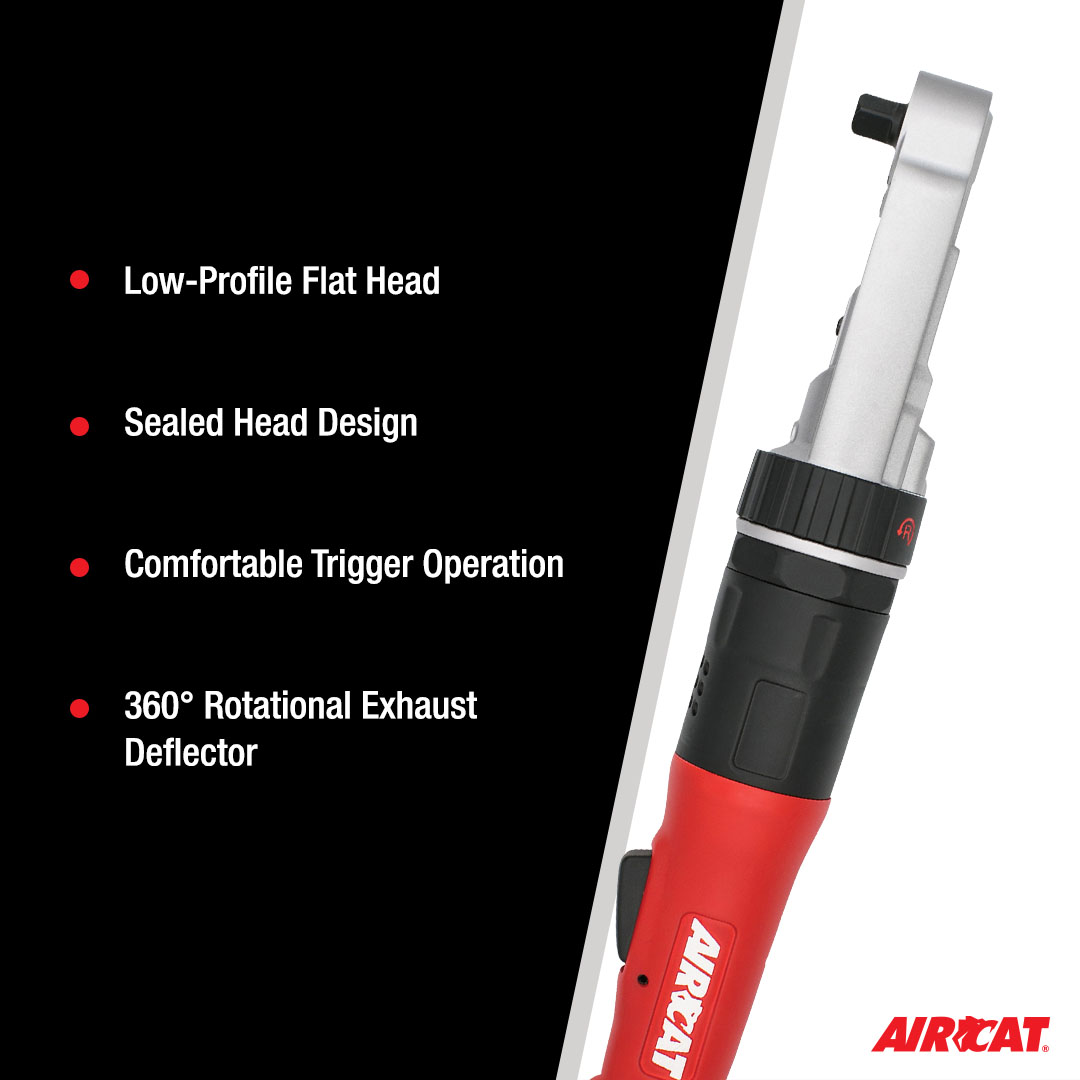

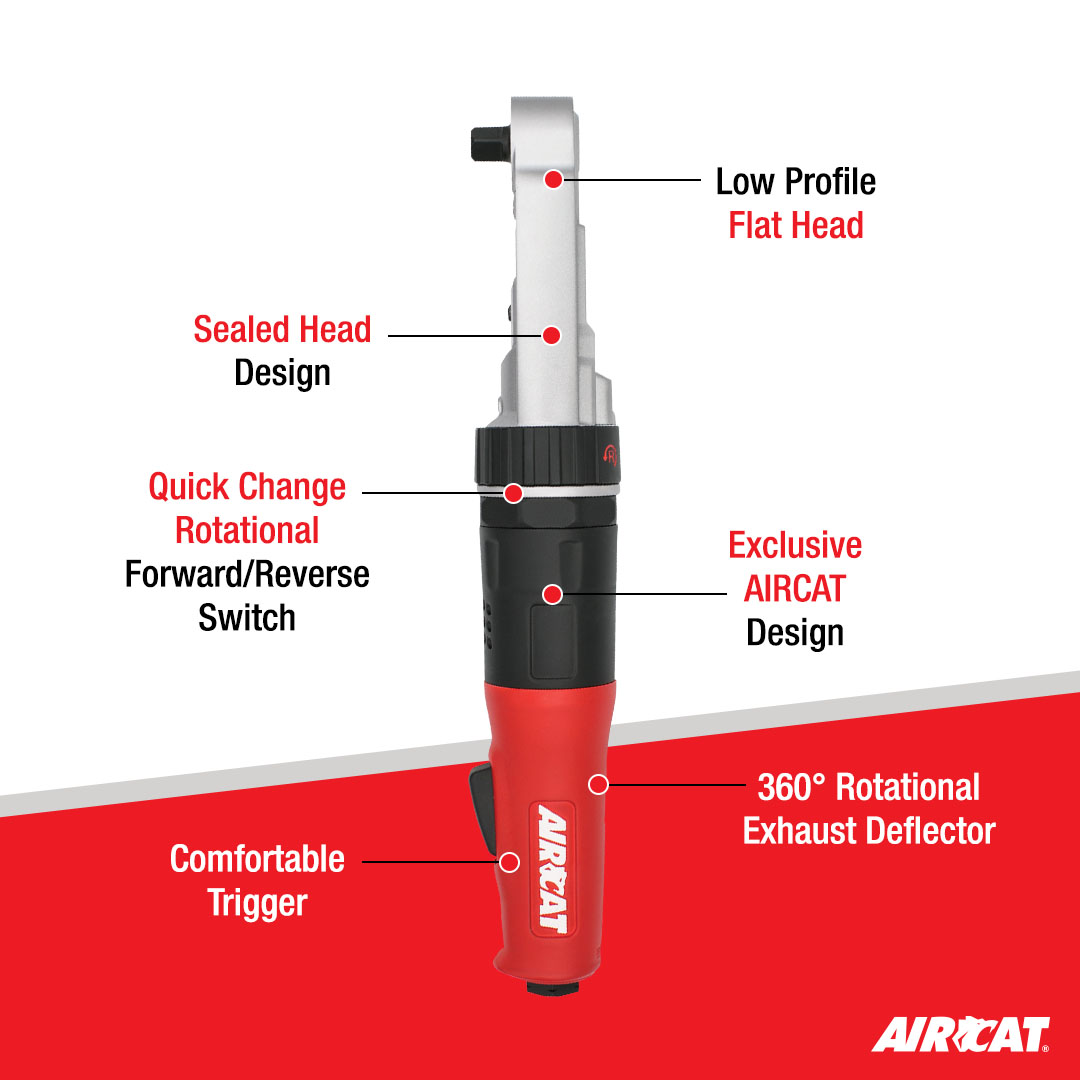

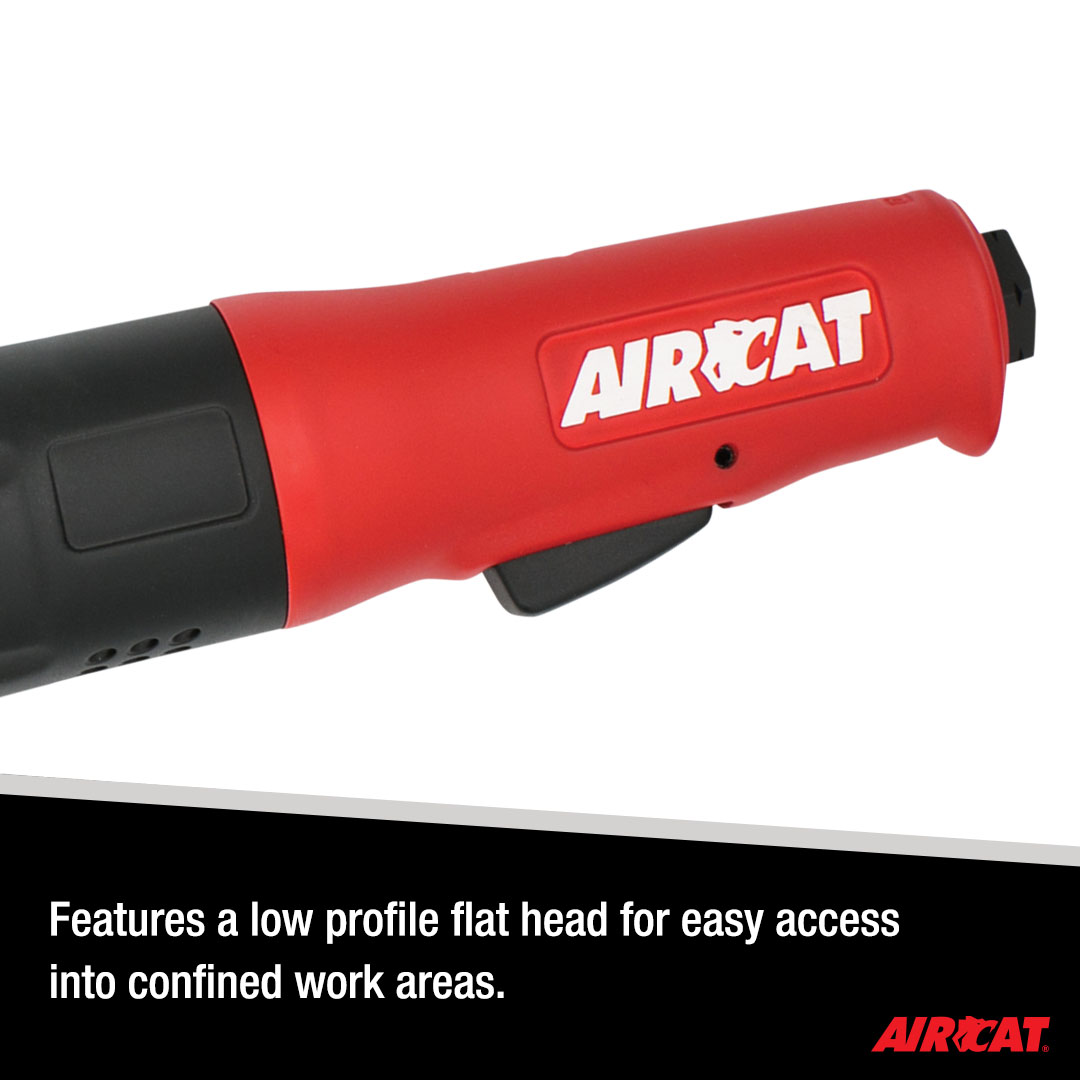

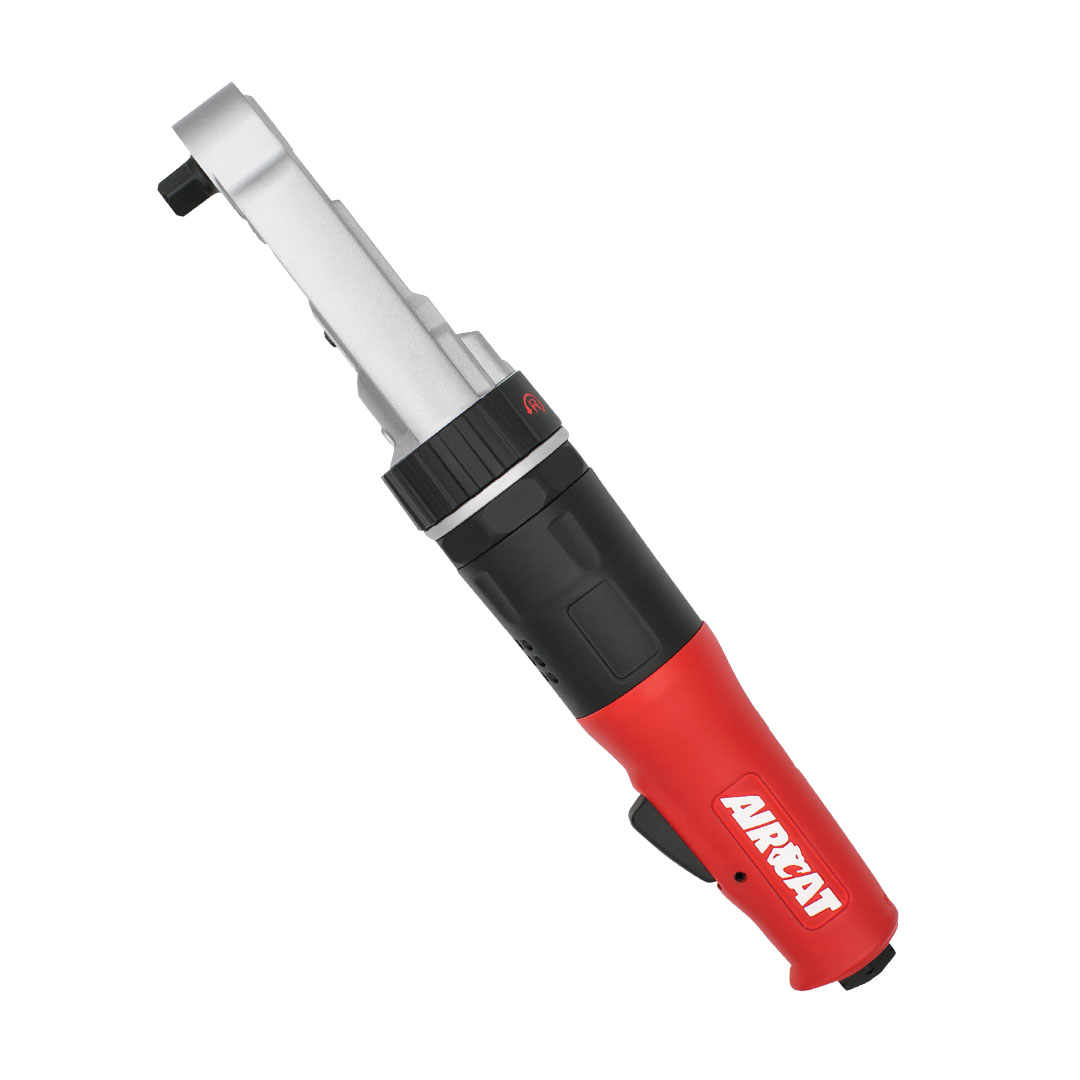

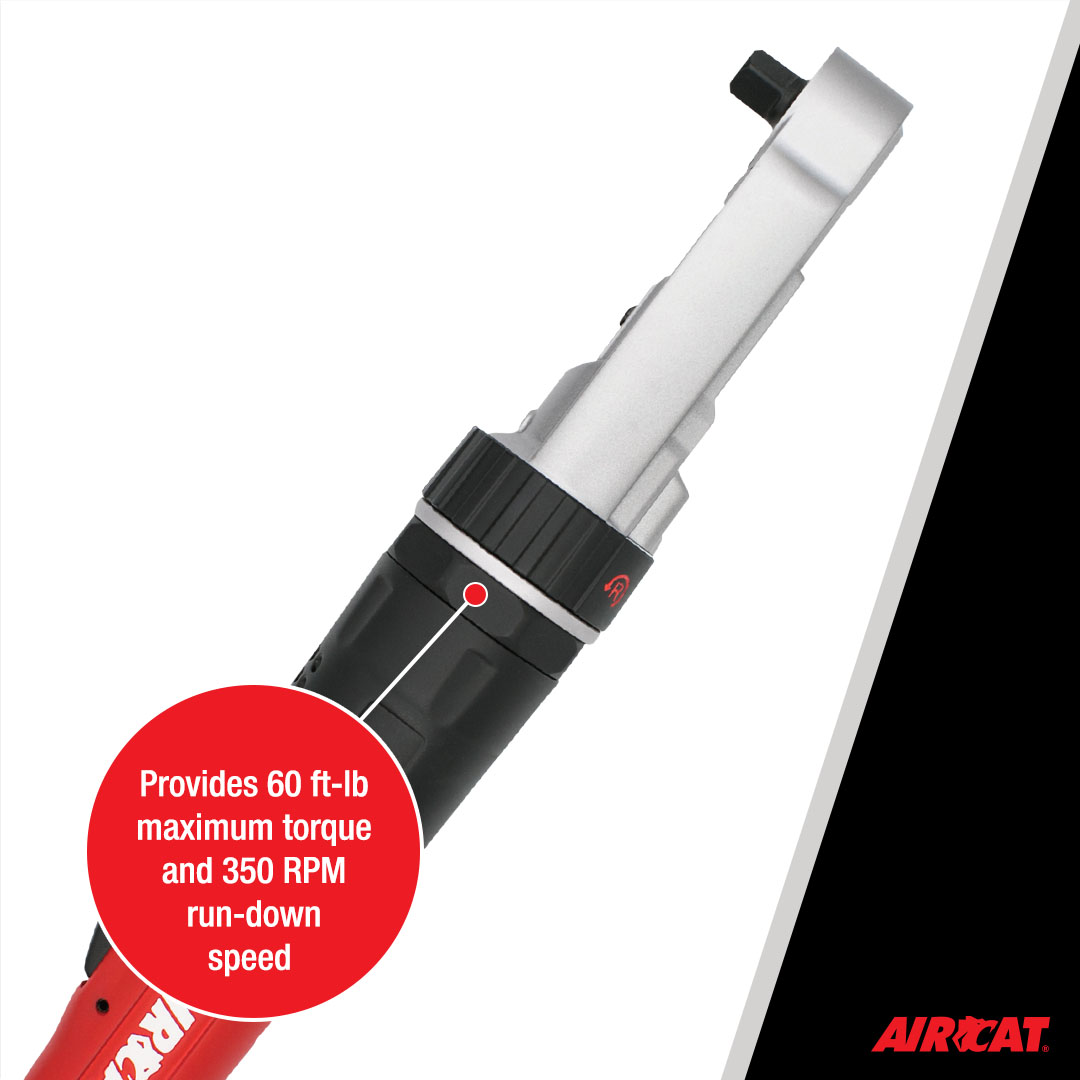

AIRCAT 809-SH-5 is a 1/2-inch drive, sealed flat head ratchet that produces 60 ft-lbs of torque at 350 RPM. The low profile head allows for greater access to confined areas. The sealed head helps with keeping the tool clean for increased reliability and durability.
SHARE
| Square Drive (in.) | 1/2-in. |
|---|---|
| Air Consumption (CFM) | 4 |
| Bolt Capacity (in) | 1/2-in. |
| Air Inlet (NPT/BSP) | 1/4-in. |
| Rec. Hose Size (in.) | 3/8-in. |
| Weight (lb.) | 2.9 |
| Length (in.) | 12.4 |
| Free Speed (RPM) | 350 |
| Working Torque (ft-lb) | 9 – 42 ft-lbs |
| Max. Torque (ft-lb) | 60 |
| Noise Levels (dBA) | 89.3 |
| Vibration Levels (m/sec2) | 3.2 |
AIRCAT 809-SH-5 is a 1/2-inch drive, sealed flat head ratchet that produces 60 ft-lbs of torque at 350 RPM. The low profile head allows for greater access to confined areas. The sealed head helps with keeping the tool clean for increased reliability and durability.
| Square Drive (in.) | 1/2-in. |
|---|---|
| Air Consumption (CFM) | 4 |
| Bolt Capacity (in) | 1/2-in. |
| Air Inlet (NPT/BSP) | 1/4-in. |
| Rec. Hose Size (in.) | 3/8-in. |
| Weight (lb.) | 2.9 |
| Length (in.) | 12.4 |
| Free Speed (RPM) | 350 |
| Working Torque (ft-lb) | 9 – 42 ft-lbs |
| Max. Torque (ft-lb) | 60 |
| Noise Levels (dBA) | 89.3 |
| Vibration Levels (m/sec2) | 3.2 |
