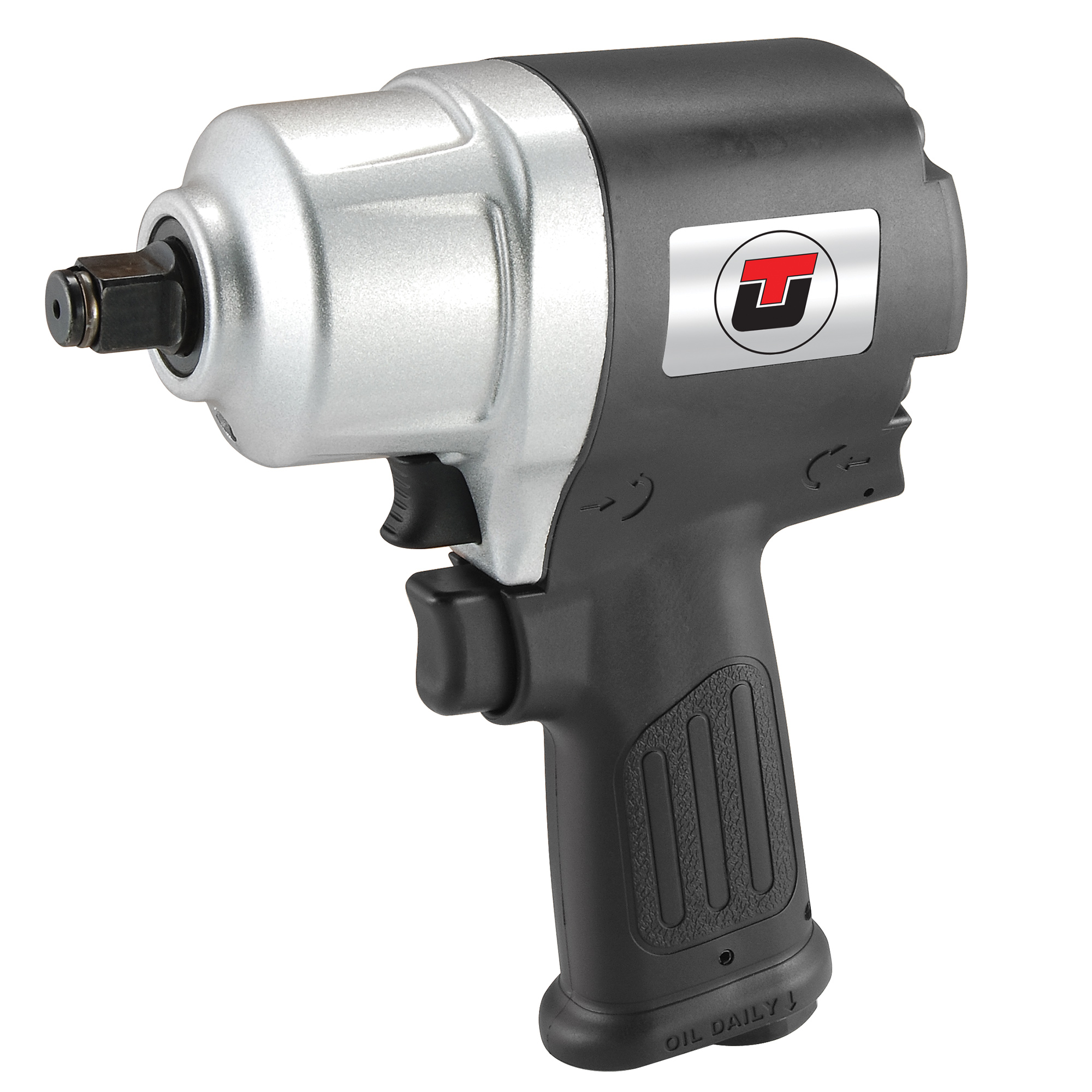

1/2″ Compact Pistol Impact Wrench

UT8120R

Features a hard hitting twin hammer-500 ft.lb. max. torque.

Safety Manual
Manual Parts
Fact Sheet
Request Info
Order Parts

SHARE

Product Details

  • Refined design twin hammer and biased motors provide high torque
  • Low weight composite housings
  • Ergonomic trigger design with feather control
  • Push button forward/reverse for instant change in direction
  • Four position power management switch conveniently located in back cap
  • Titanium finish hammer case
  • Built-in side impact buffers
  • Over-molded ergonomic grips
  • Pin Retainer

Specifications

Additional information

Anvil

1/2-in. Square
Working Torque (ft-lb.)

100-350
Working Torque (nm)

135-470
Max Torque (ft-lb.)

500
Max Torque (nm)

675
Speed (RPM)

9500
Exhaust

Handle
Weight (lb.)

3.20
Weight (kg)

1.46
Length (in.)

6.30
Length (mm)

160
Air Inlet (NPT / BSP)

1/4-in.
Hose Size

3/8-in.
Air Cons (cfm)

18.0
1

4.5
