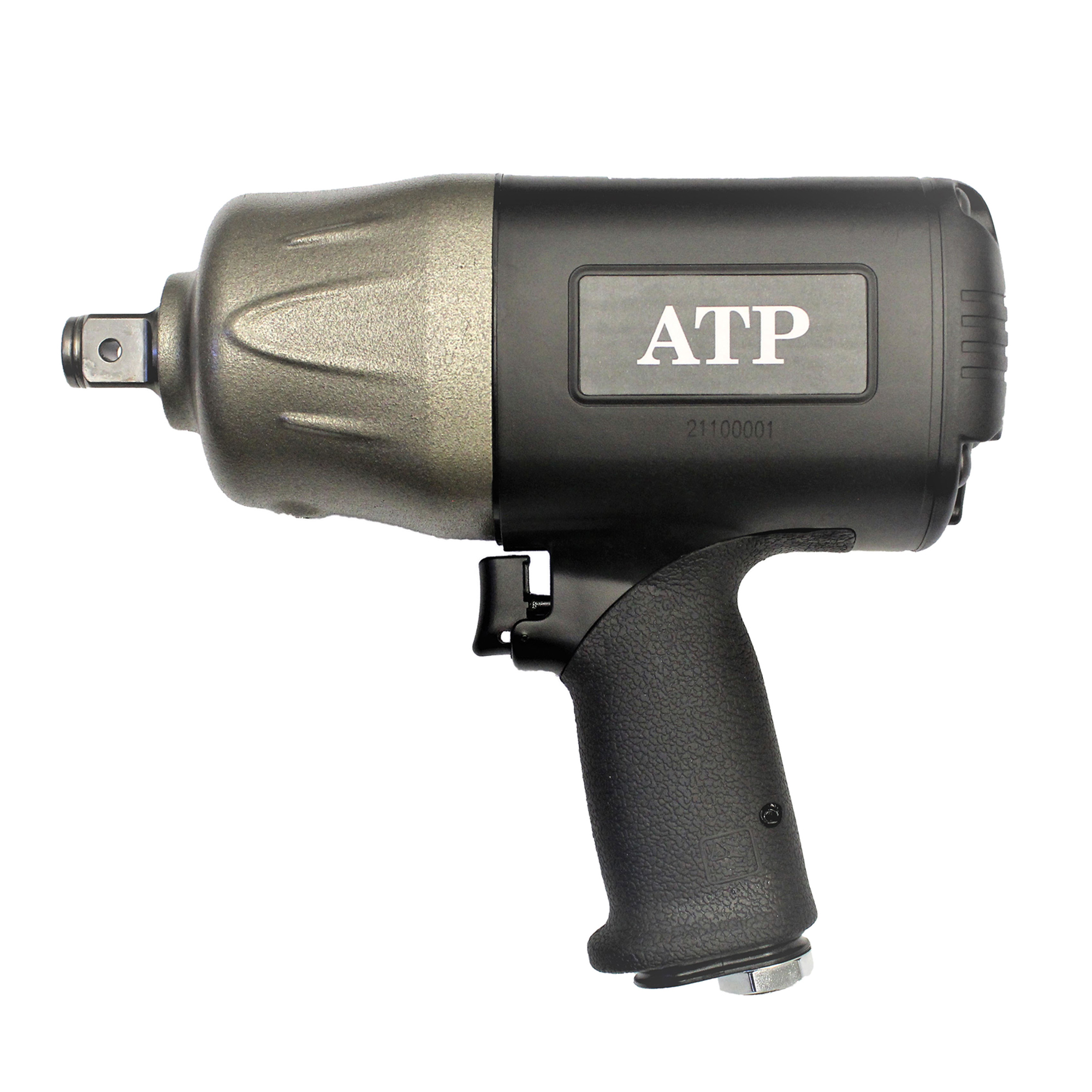

Pistol Grip Strike Force Impact Wrench 3/4″ Square Drive

Model: ATP7522PT-TH

STRIKE FORCE impact tools are available in four models, from ½” to 1” output drives covering many of your application needs and offer the following features and benefits to boost operator performance.

Manual / Parts Request Info Order Parts

Product Details +

FEATURES
• Twin hammer impact mechanisms
• Compact lengths and side to center
• Steel hammer cases
• Composite motor housings, ½” and ¾”
• Combo reverse and power regulators
• 6” extended anvil model
• Protection bumper

BENEFITS
• Highest durability and performance, only 4 moving parts
• Great operator maneuverability and application access
• Long lasting superior strength and high wear durability
• High strength composite designs for high power to weight
• Conveniently located with power output adjustment
• Available on the 1” drive model for application reach
• Standard on 1” drive models for added protection

Specifications +

Drive Size	¾” Square
Working Torque ft. lbs. (Nm)	1 \| 040 (1 \| 410)
Max Torque ft. lbs. (Nm)	1 \| 140 (1 \| 546)
Rated Bolt Capacity	1 ¼”
Weight lbs. (kg)	8.1 (3.7)
Length in. (mm)	9.3” (235)
Socket Retainer	Through Hole
Side to Center in (mm)	1 3/4” (44.5mm)
Air Inlet NPT (in)	3/8”
