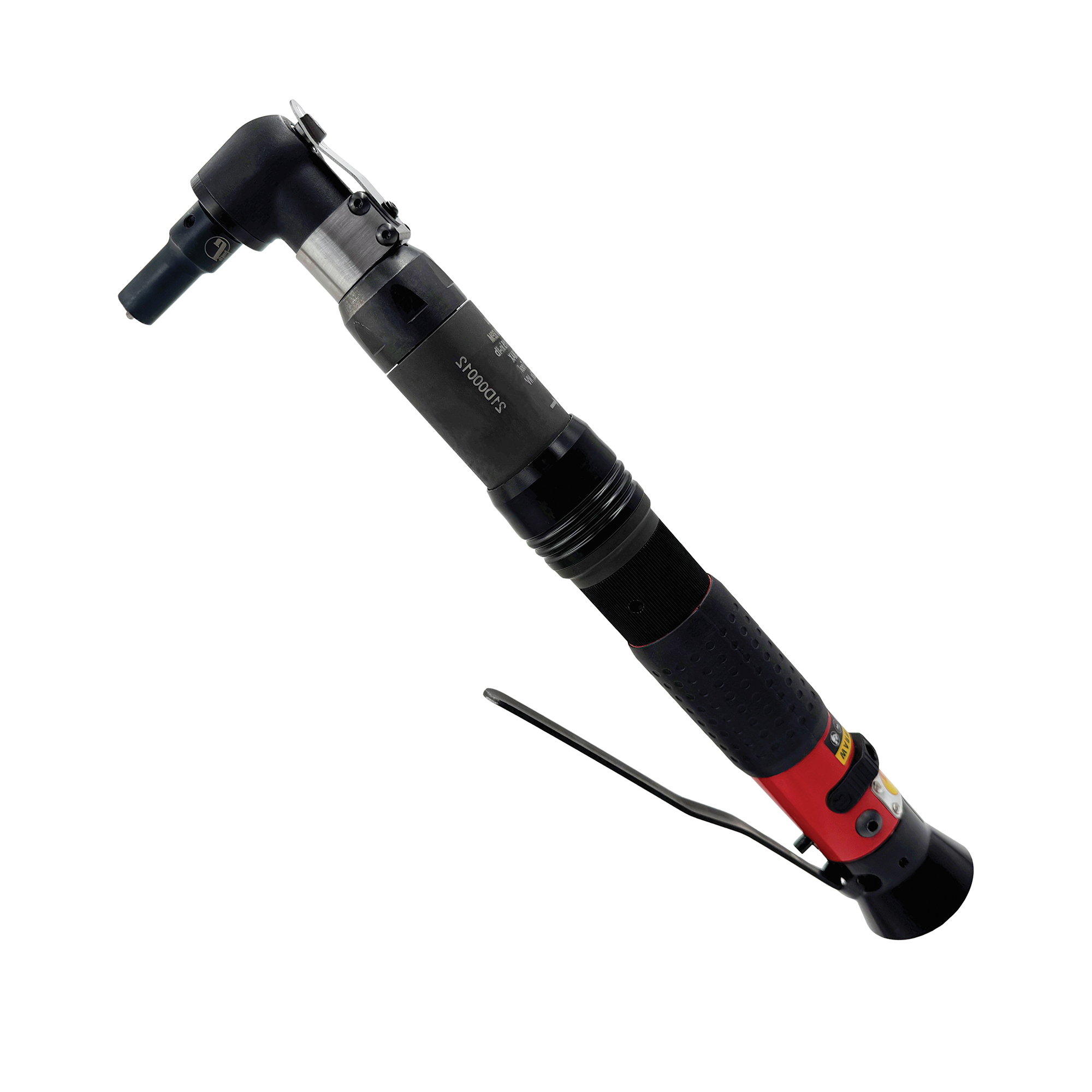

Jiffy Angle Nut Runner
Model: 23544
The Jiffy Air Tool 23544 3/8" Angle Nutrunner is designed for precision fastening applications requiring consistent, repeatable torque. Delivering 20-115 in-lbs of torque (2.2-13 N.m) with a free speed of 160 RPM, this pneumatic angle nutrunner features an adjustable shut-off clutch tested to Six Sigma torque standards for outstanding accuracy. Its ergonomic soft-grip overmold, contoured lever throttle, and rear exhaust provide operator comfort during extended use in aerospace applications.
Product Details
- Precision angle nutrunner with torque ranges from 18 to 400 in-lbs to suit a wide range of fastening applications
- Tested to Six Sigma torque standards for exceptional accuracy and repeatability
- Adjustable shut-off clutch delivers consistent, precise torque on every fastening cycle
- Ergonomic soft-grip overmold enhances comfort and helps reduce operator fatigue
- Contoured lever throttle provides improved control and ease of operation
- Rear exhaust directs air away from the work area for greater operator comfort
- Also available with 1/4″ Sq. drive
Specifications
| Screw Size (mm) | M6 M8 M10 |
| Torque Range (in-lbs.) | 20 - 115 |
| Torque Range (N.m) | 2.2 - 13 |
| Free Speed (RPM) | 160 |
| Weight (lbs.) | 3.03 |
| Weight (kg) | 1.38 |
| Tool Diameter (in) | 1.53 |
| Tool Diameter (mm) | 39 |
| Tool Length (in.) | 13.8 |
| Recommended Hose Size (in) | 3/8-in. ID |
