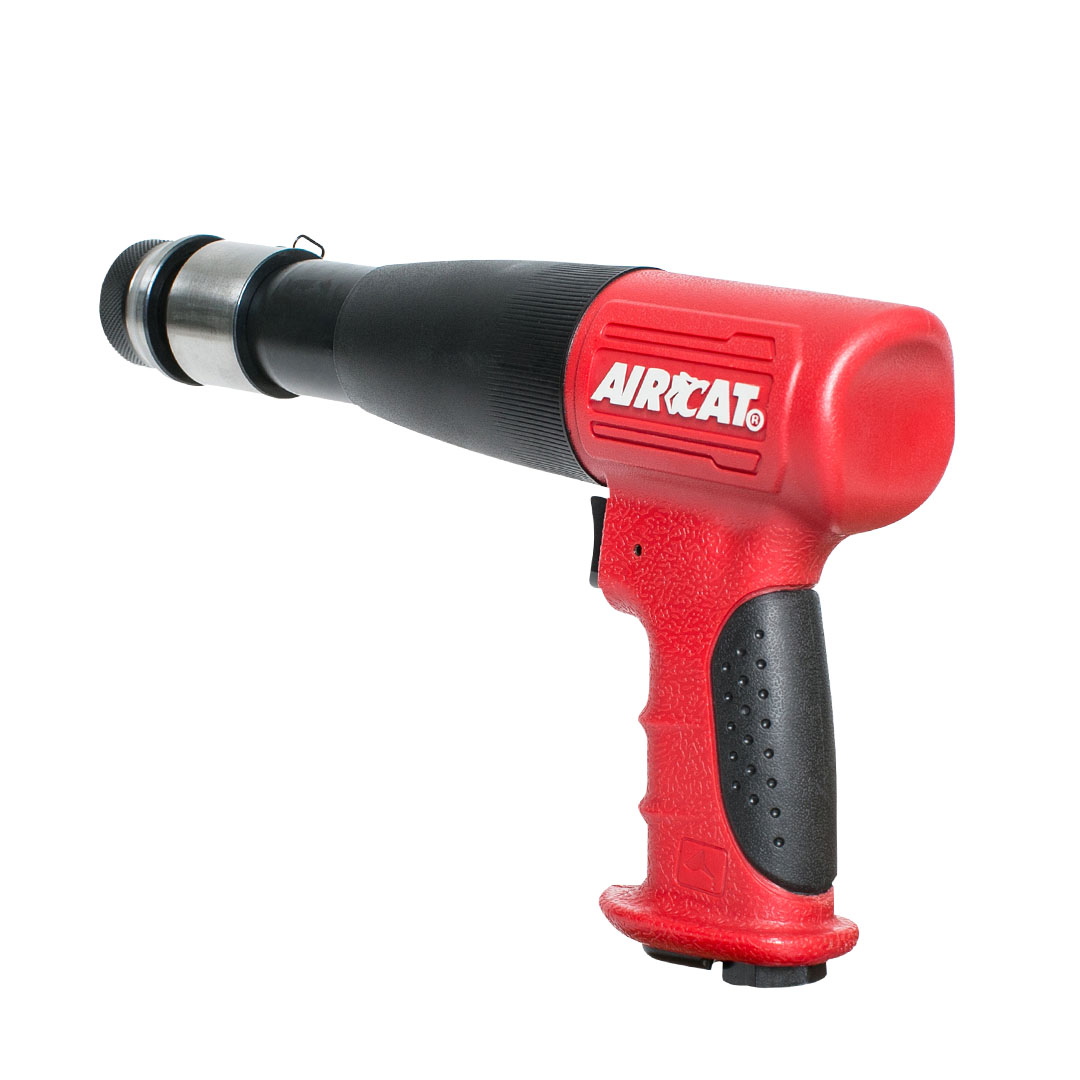

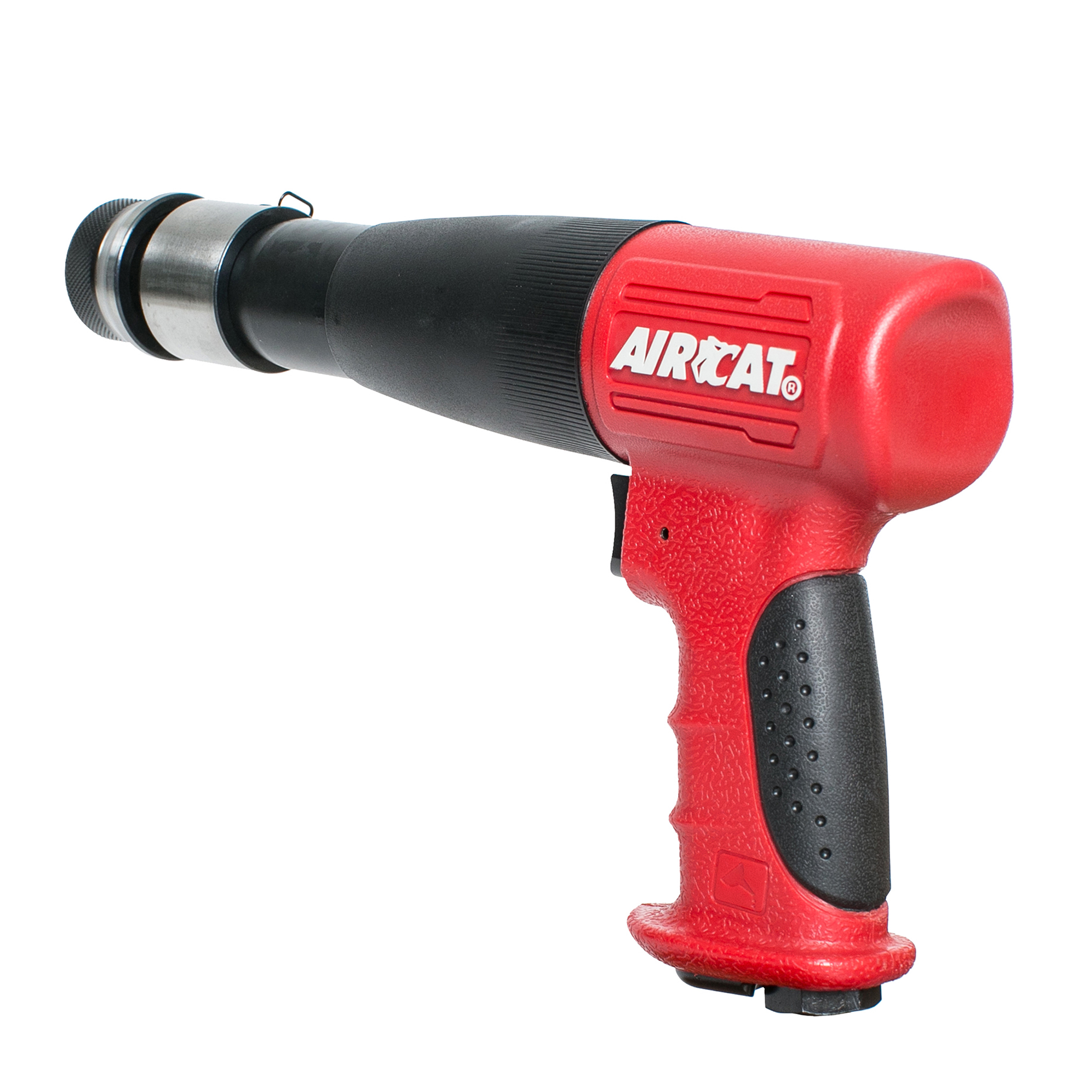

AIRCAT 5200-A-T long-stroke air hammer with quick-change chisel retainer

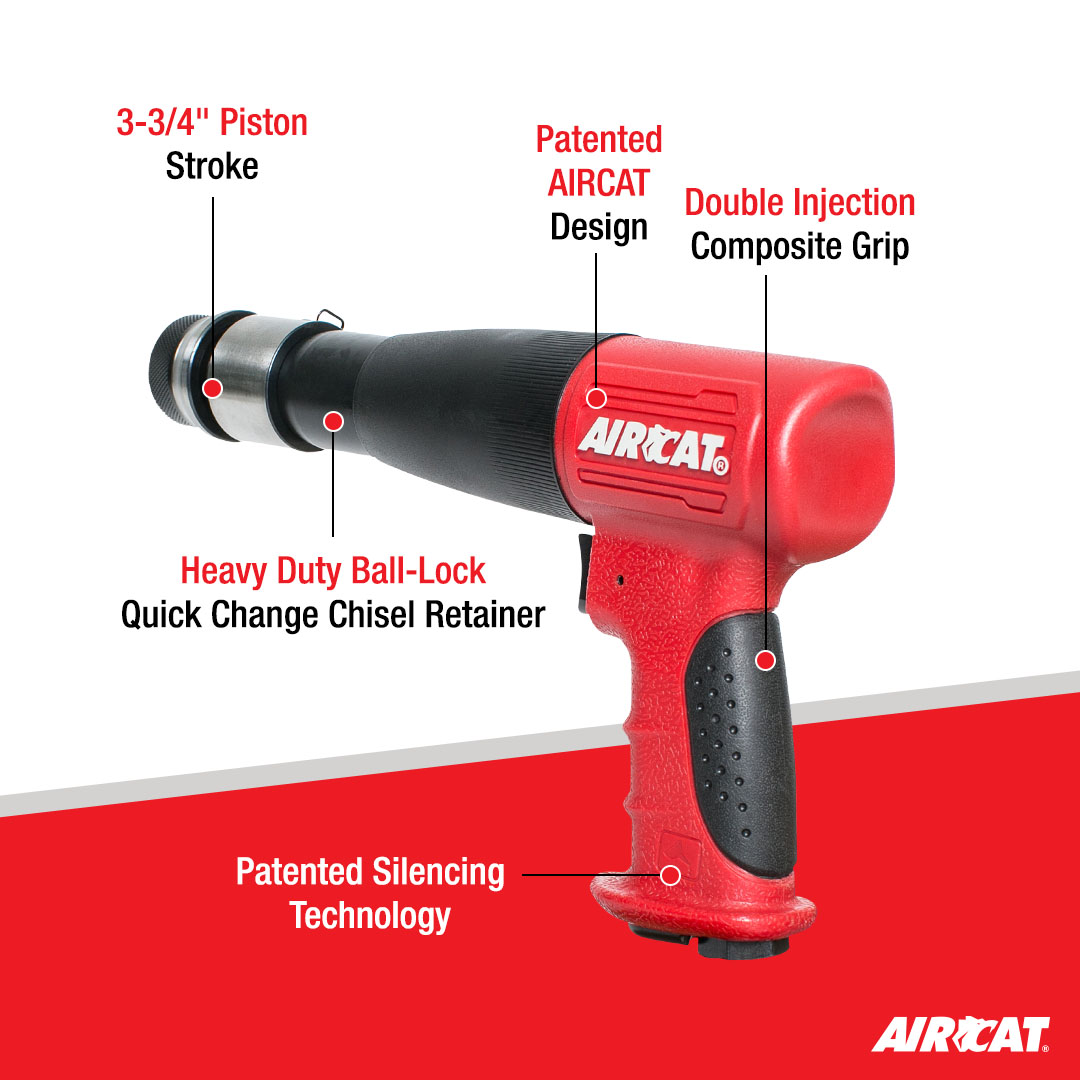

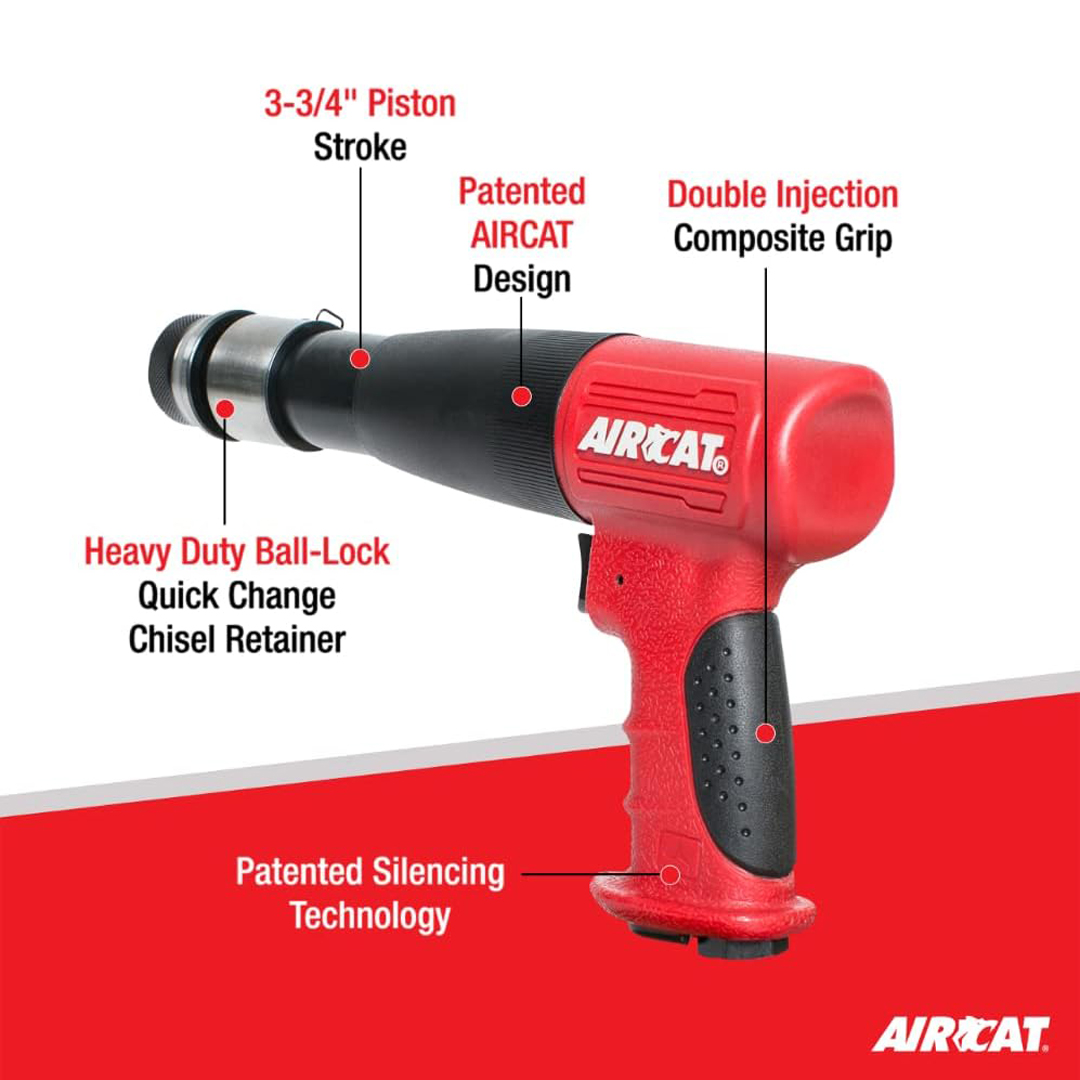

AIRCAT 5200-A-T air hammer with 3-3/4-inch piston stroke, ball-lock chisel retainer and composite grip

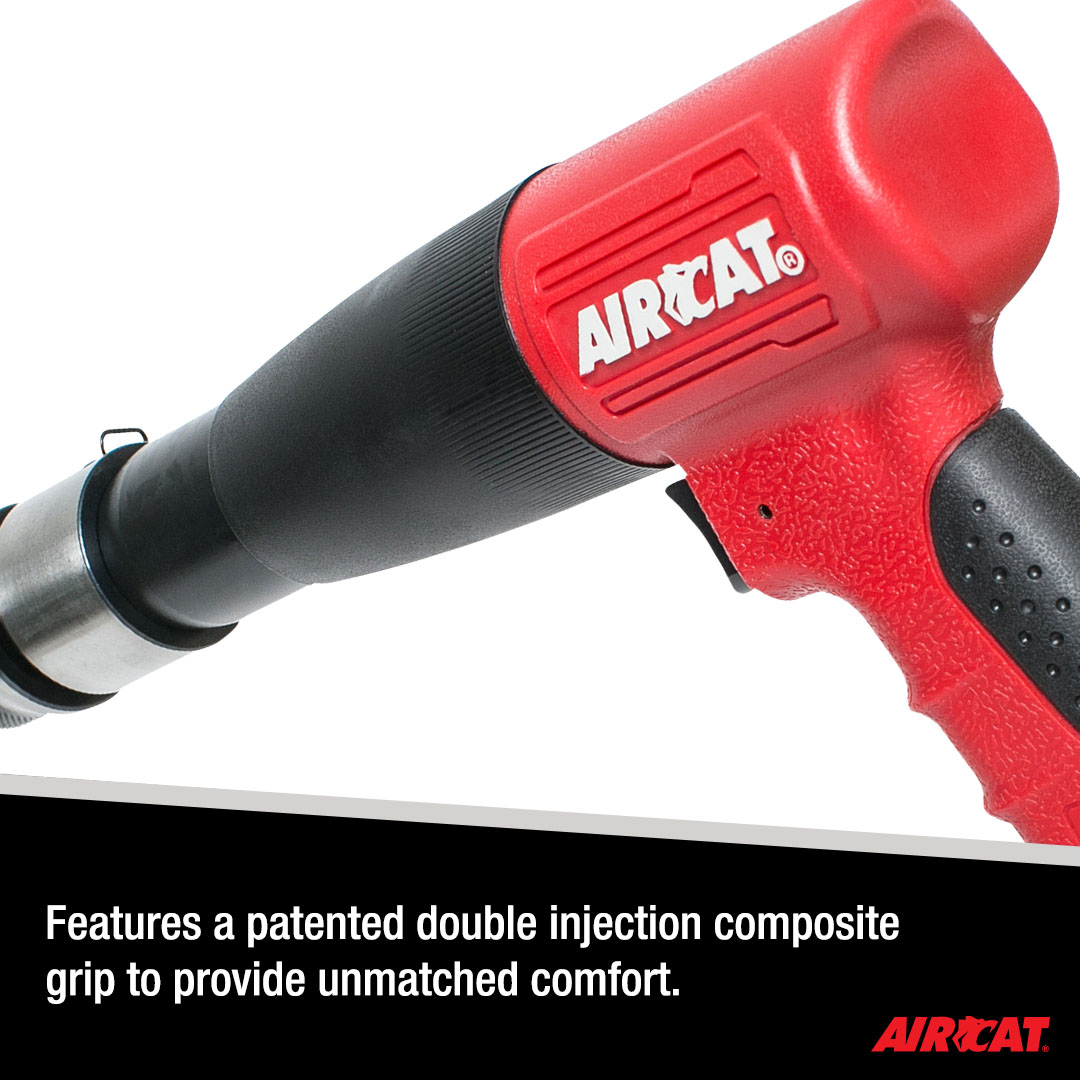

Close-up of AIRCAT 5200-A-T air hammer double-injection composite grip

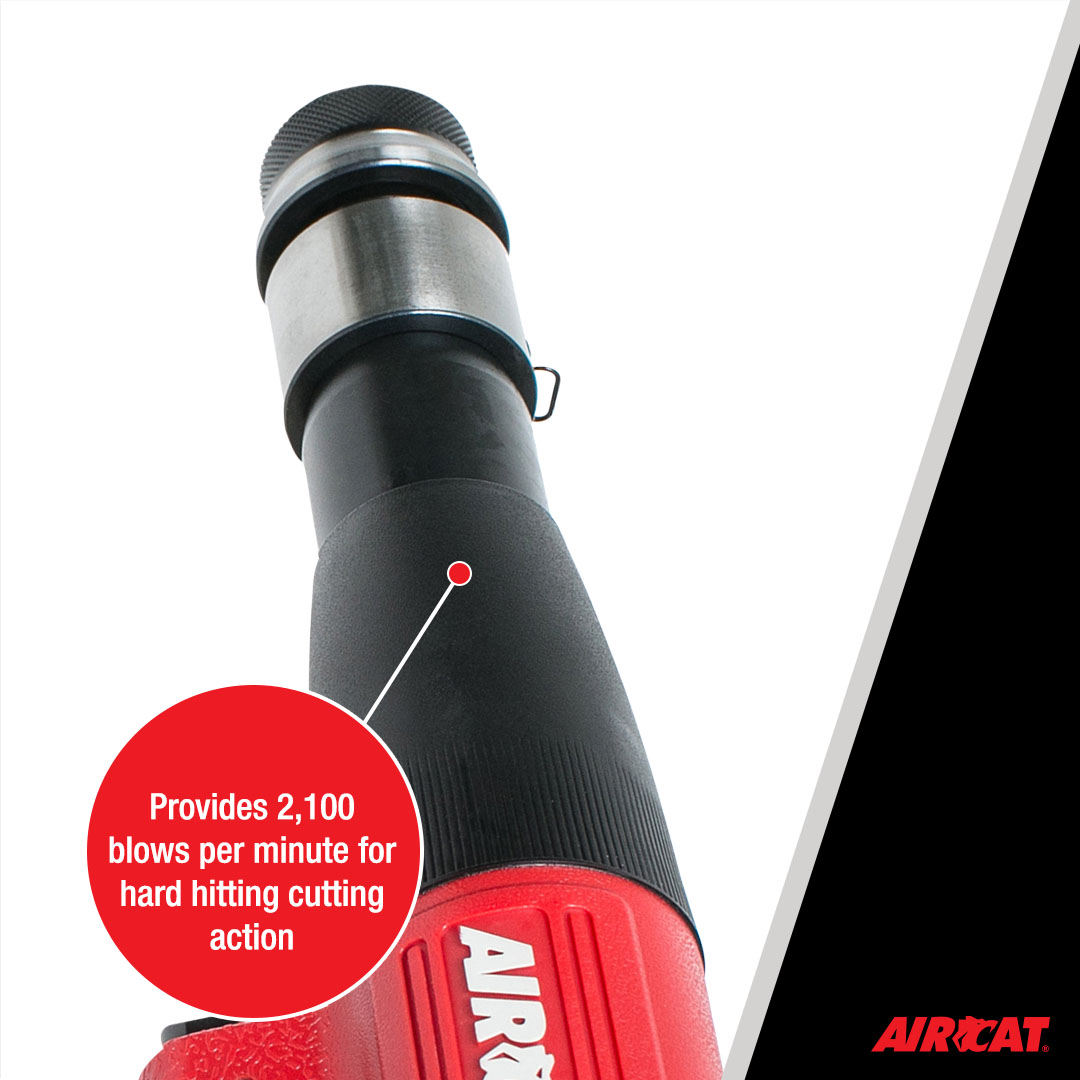

AIRCAT 5200-A-T air hammer delivering 2,100 blows per minute

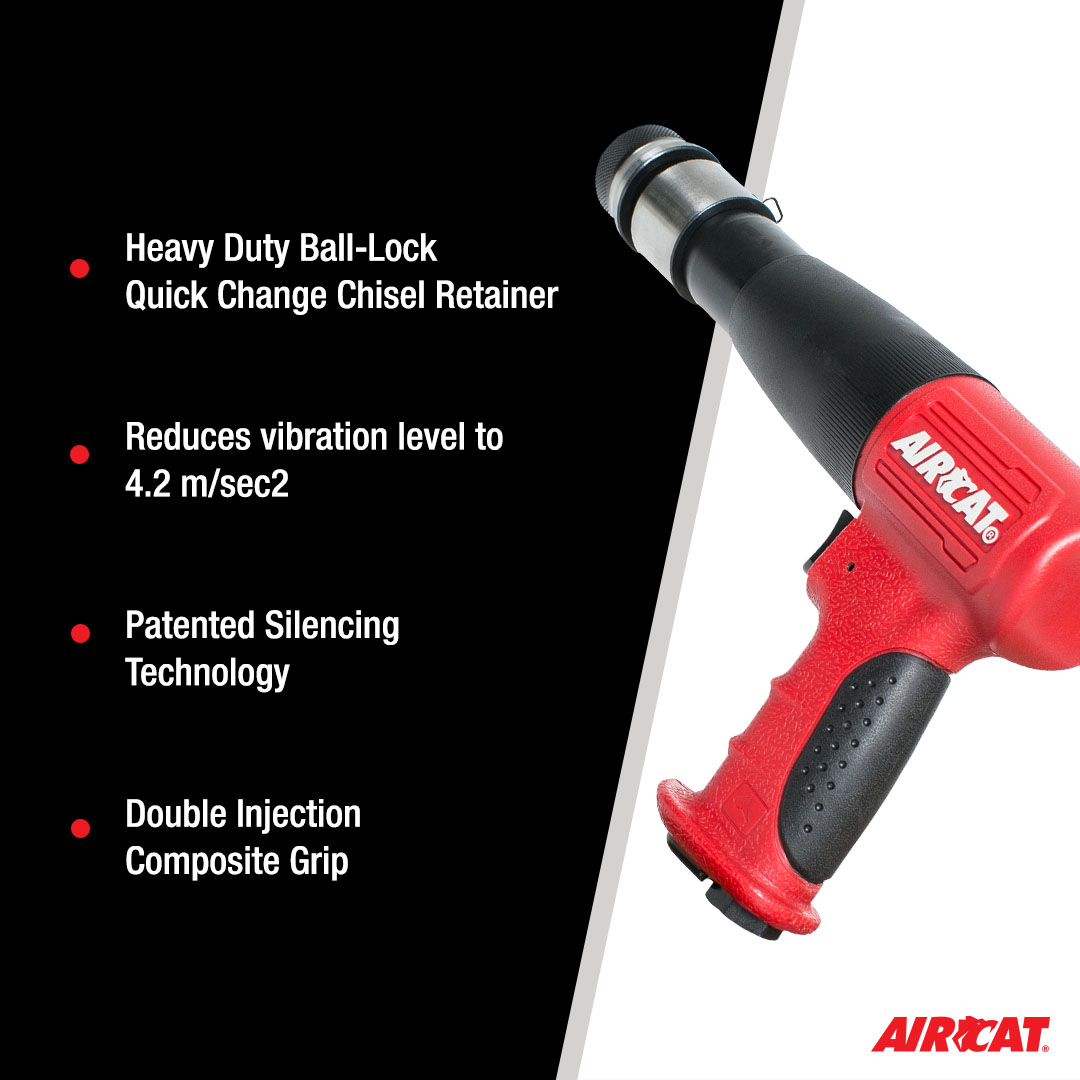

AIRCAT 5200-A-T air hammer with ball-lock chisel retainer, low-vibration design and composite grip

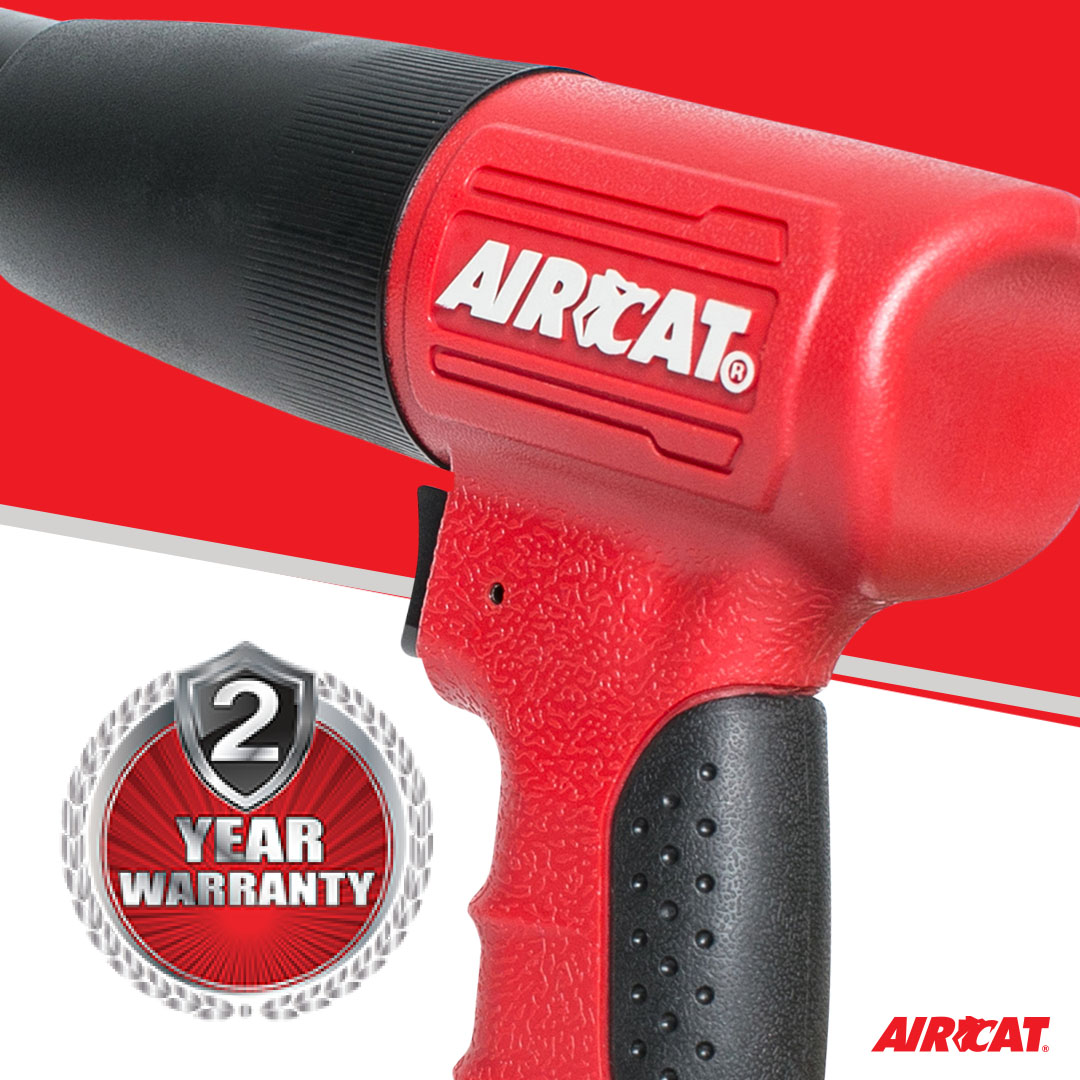

Close-up of AIRCAT 5200-A-T air hammer composite handle and two-year warranty

AIRCAT .401″ SHANK COMPOSITE LONG STROKE AIR HAMMER

Model: 5200-A-T

The AIRCAT 5200-A-T is a .401" shank composite long stroke air hammer built for powerful cutting, chiseling, and metalworking applications. Delivering 2,100 blows per minute with a 3-3/4-inch piston stroke, vibration-damped technology, patented quiet operation, and a heavy-duty ball-lock quick-change retainer, it provides exceptional performance, comfort, and reliability for professionals.

Safety Manual Manual / Parts Fact Sheets Request Info Order Parts

Product Details +

2,100 Blows per minute provide hard hitting cutting action
3-3/4″ Piston stroke
Vibration damped technology reduces the vibration level to 4.2 m/sec²
Patented AIRCAT® design double injection composite grip has been ergonomically designed to provide unmatched comfort for the user
Patented AIRCAT® “Silencing technology”
Includes heavy-duty ball-lock “Quick-change” chisel retainer adding safety and reliability

Specifications +

Free Speed (BPM)	2100
Piston Stroke (in.)	3-3/4-in.
Shank Size (in.)	0.401-in.
Retainer	Quick Change
Valve	Plate
Weight (lbs.)	4.4
Length (in.)	11-in.
Noise Levels d(B)A	101
Vibration Levels (m/sec2)	4.2
Air Consumption (CFM)	6
Rec. Hose Size (in.)	3/8-in.
