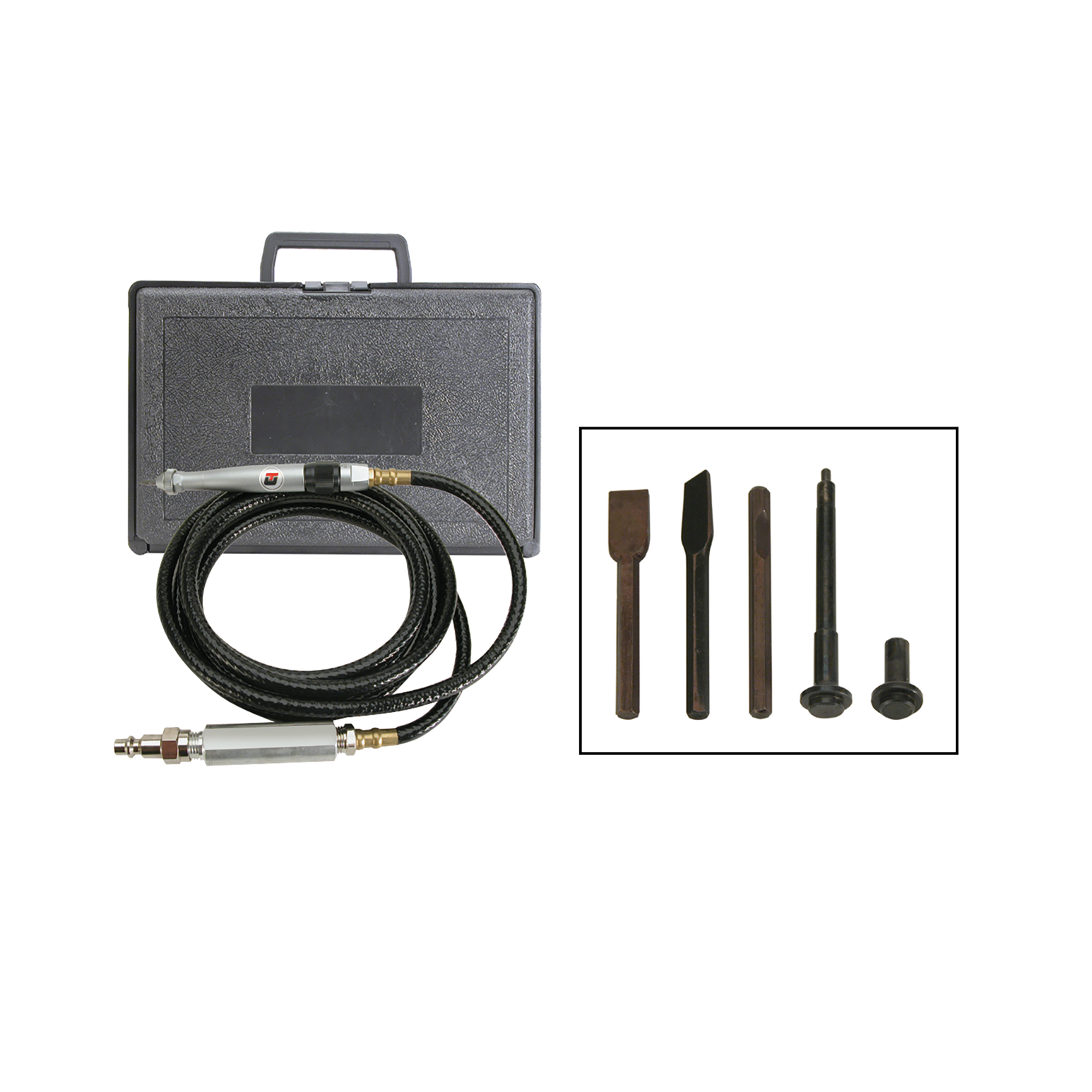

The UT8617K Scribe & Engraving Chisel Kit provides precise pneumatic power for engraving, scribing, and light chipping applications. Ideal for detailed work on metal, stone, and marble surfaces.
SHARE
| retainer | Screw |
|---|---|
| housing-material | Aluminum |
| bushing-in | 1/8-in. |
| Blow Per Minute (BPM) | 13, 500 |
| bore-in | 0.228 |
| stroke-in | 3/16-in. |
| weight-lbs | 0.3 |
| Weight (kg) | 1.4 |
| Length (in.) | 5 |
| Length (mm) | 127 |
| Air Inlet (NPT / BSP) | 1/4-in. |
| Rec. Hose Size (in) | 3/16-in. |
| Air Consumption (cfm) | 1.1 |
| Average Air Consumption (CFM) | 0.3 |
| Recommended Air Pressure | 90 psi -6.2 bar |
